MSI GeForce RTX™ 5060 Gaming OC (8GB, GDDR7)

Description

TWIN FROZR 10 Cooling, Three Performance Modes, Blackwell Efficiency

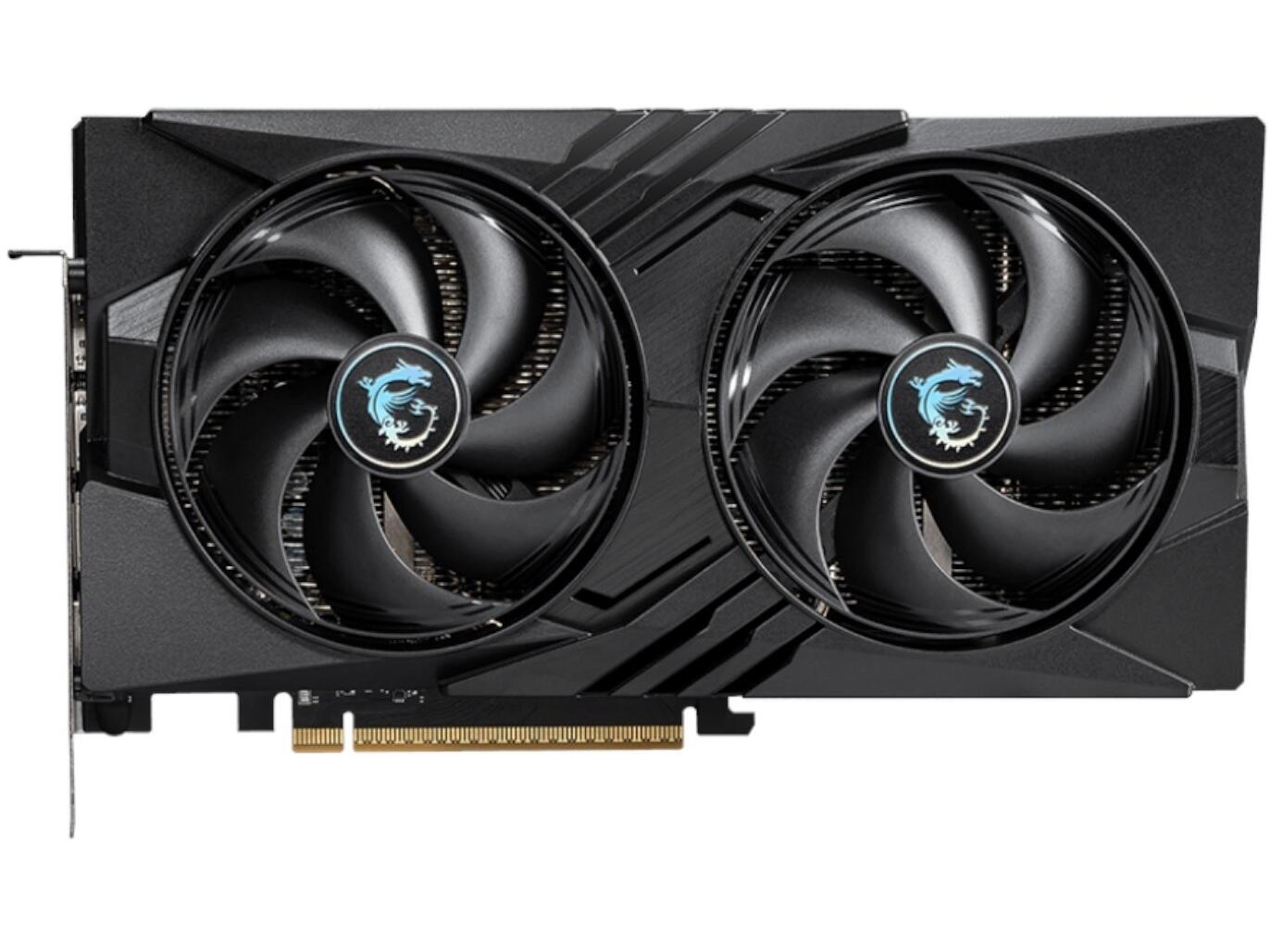

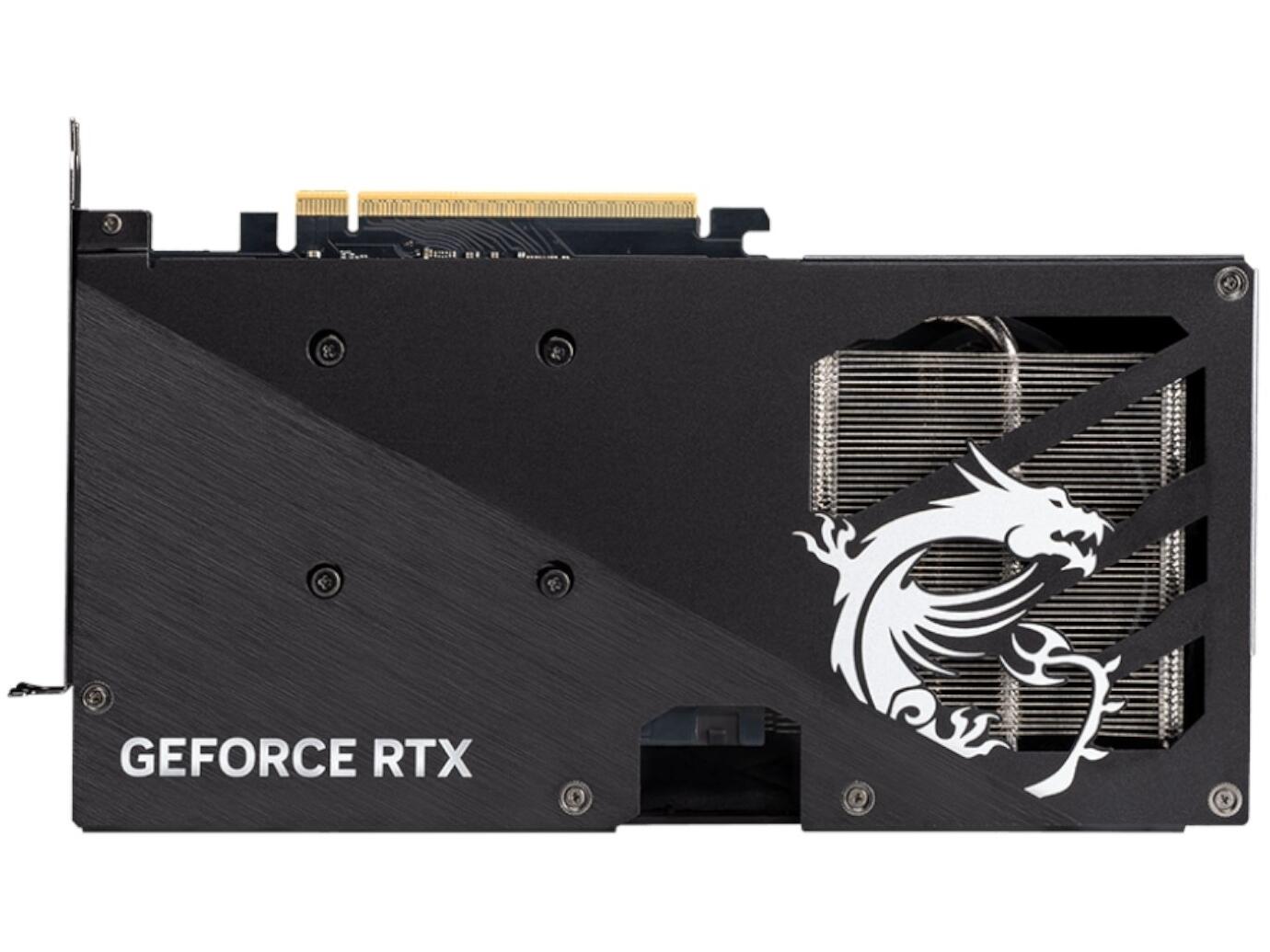

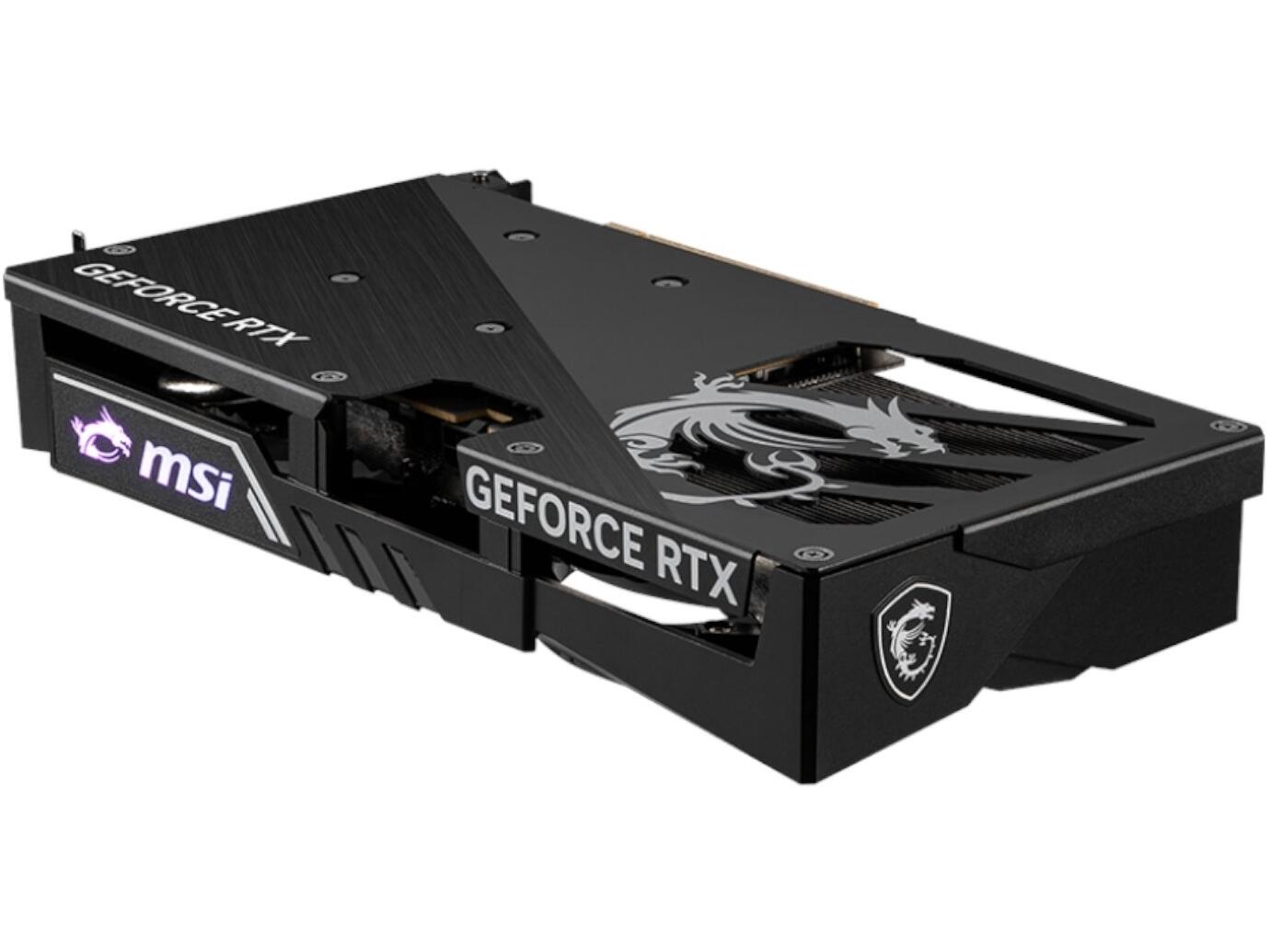

The MSI GeForce RTX 5060 Gaming OC brings NVIDIA’s Blackwell architecture to MSI’s proven TWIN FROZR platform, delivering the RTX 5060’s full GB206 GPU performance through a compact dual-fan design with class-leading thermal engineering for its footprint. The TWIN FROZR 10 cooler uses MSI’s STORMFORCE fan blades — seven blades per fan with claw texturing and a circular arc profile designed for maximum airflow with minimum noise — fed by a nickel-plated copper baseplate that rapidly captures heat from the GPU die and VRAM, transferring it through square-profile Core Pipes that maximise contact area with the baseplate for optimal conduction. The vented metal backplate provides structural rigidity while supplementary thermal pads on its inner surface help dissipate heat from the PCB reverse side.

MSI Center software provides three user-selectable clock profiles: Gaming mode (2625 MHz boost, balanced performance and noise), Silent mode (reduced fan speeds for near-inaudible operation), and Extreme Performance mode (2640 MHz boost, maximum clock headroom). The 155W TDP sits 10W above the RTX 5060 reference specification — a reflection of the factory overclock — and remains well within a single 8-pin connector’s current delivery capability.

⚠️ The RTX 5060 uses a PCIe 5.0 x8 electrical interface. On PCIe 5.0 and PCIe 4.0 platforms this has no meaningful real-world gaming performance impact. On PCIe 3.0 platforms the effective bandwidth is equivalent to PCIe 3.0 x4 — verify compatibility for legacy builds.

⚠️ The 128-bit bus and 8 GB GDDR7 frame buffer are well-matched to 1080p high/ultra and 1440p with DLSS. At native 1440p or 4K maximum quality without DLSS in bandwidth-intensive titles, DLSS 4 Quality or Balanced mode is recommended.

💡 The GAMING OC is a dual-fan (TWIN FROZR 10) card at a more compact 248 mm length. Builders wanting the triple-fan version should look at the MSI GeForce RTX 5060 Gaming Trio OC, which uses the TRI FROZR 4 cooler with three STORMFORCE fans at a slightly higher price point.

💡 DLSS 4 Multi Frame Generation generates up to three AI frames per rendered frame in supported titles — the primary performance differentiator of the Blackwell generation over RTX 30 and RTX 40 series cards at comparable price points.

Technical Specifications

The RTX 5060 uses NVIDIA’s GB206 Blackwell GPU (4nm) with 3840 CUDA cores, 30 RT cores, 120 Tensor cores, and 614 AI TOPs. The 8 GB GDDR7 frame buffer runs at 28 Gbps on a 128-bit bus with ~448 GB/s bandwidth. Clock speeds are 2640 MHz in Extreme Performance mode and 2625 MHz in Gaming/Silent mode. TDP is 155W with a single 8-pin PCIe power connector and 550W system PSU recommended. Card dimensions are 248 × 135 × 41 mm.

Key Highlights

• NVIDIA GeForce RTX 5060 — Blackwell architecture (GB206), TSMC 4nm
• 3840 CUDA cores, 30 RT cores, 120 Tensor cores
• 5th-gen Tensor cores — 614 AI TOPs
• 8 GB GDDR7, 128-bit bus, 28 Gbps, ~448 GB/s bandwidth
• Gaming/Silent mode: 2625 MHz boost
• Extreme Performance mode: 2640 MHz boost (via MSI Center)
• 155W TDP — 1× 8-pin PCIe power connector
• 550W system PSU recommended
• PCIe 5.0 x8 (note: 8 lanes, not x16)

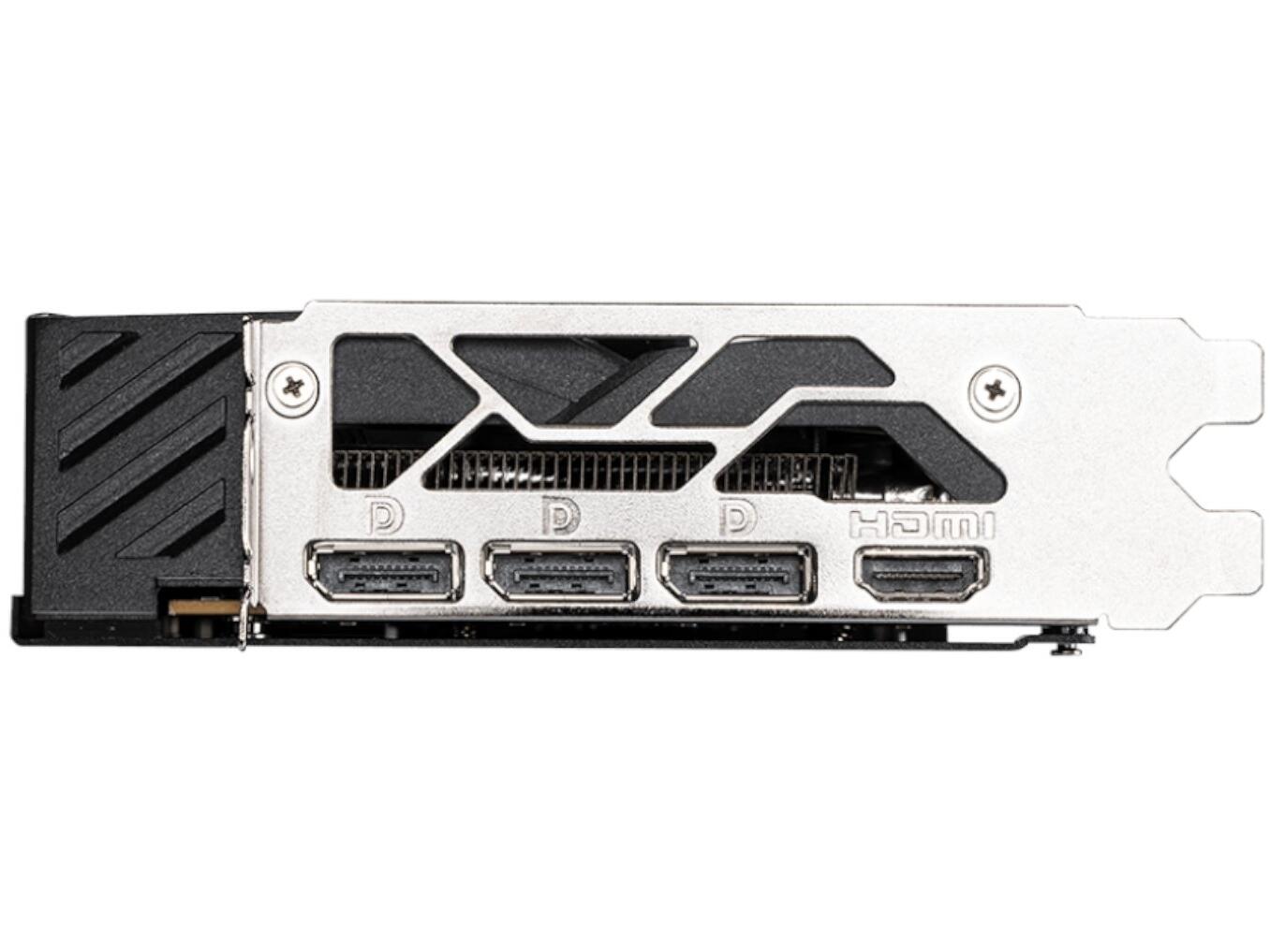

• 3× DisplayPort 2.1b + 1× HDMI 2.1b (4K 480Hz / 8K 120Hz HDR capable)
• Up to 4 simultaneous displays, max resolution 7680×4320
• 248 × 135 × 41 mm — compact dual-fan form factor
• TWIN FROZR 10 dual-fan cooler — STORMFORCE fans (7-blade, claw texture, circular arc)
• Nickel-plated copper baseplate
• Square-profile Core Pipes — maximised GPU contact area
• Vented metal backplate with thermal pads
• Three MSI Center performance modes: Gaming / Silent / Extreme Performance
• DLSS 4 with Multi Frame Generation
• NVIDIA Reflex 2 with Frame Warp
• NVIDIA Ansel, ShadowPlay, Broadcast
• 5th-gen NVENC — AV1 / H.264 / H.265 + AV1 Ultra High Quality mode
• NVIDIA G-SYNC Compatible
• Real-time ray tracing with RTX
• VR Ready
• DirectX 12 Ultimate, OpenGL 4.6
• MSI Center software
