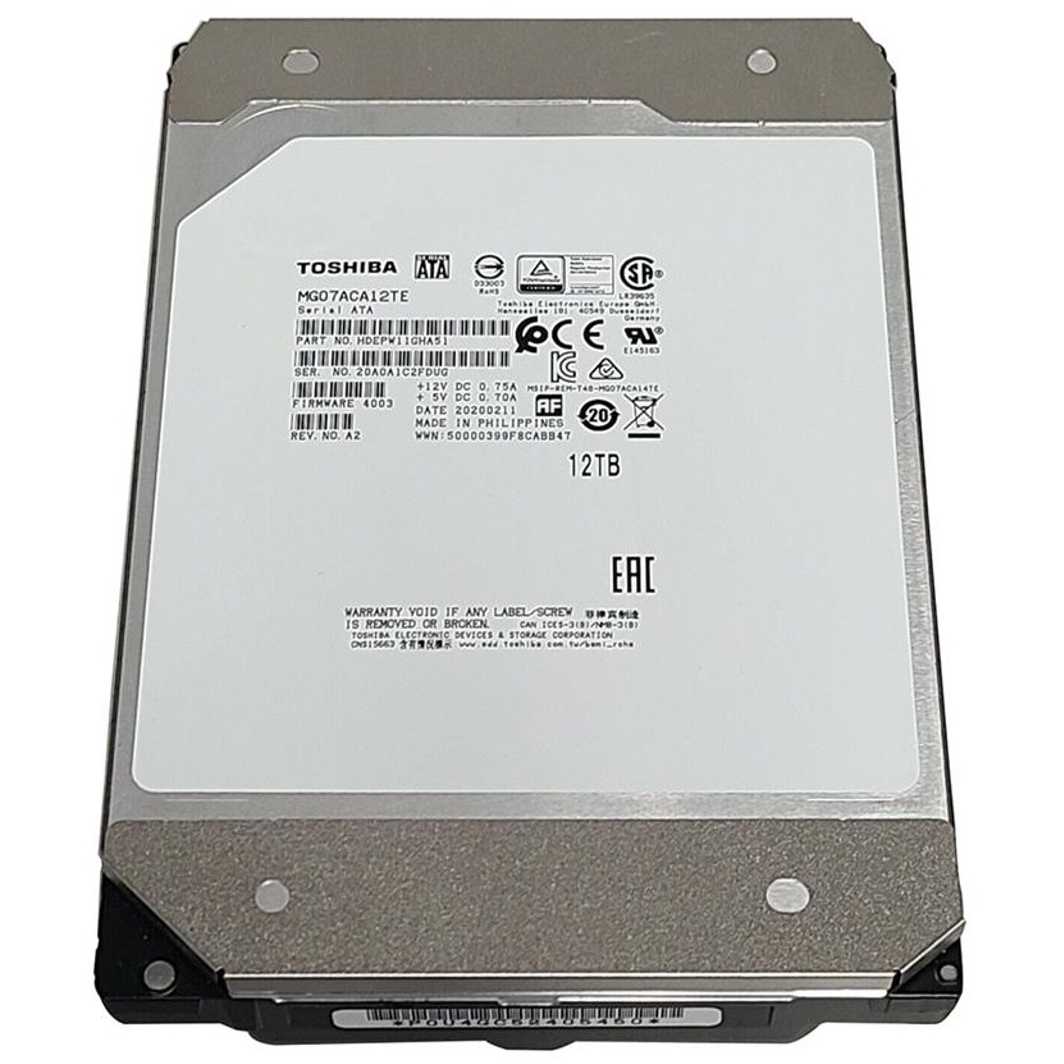

Toshiba Enterprise (MG07) 12TB 7200RPM 3.5″ HDD
R7,649.00 inc. VAT
The Toshiba MG07ACA12TA is a 3.5″ enterprise-class hard drive delivering 12TB of storage at 7200 RPM with a 256MB cache and SATA 6Gb/s interface. The MG07ACA series utilises Toshiba precision laser welding technology to seal helium inside 9-disk mechanics for the life of the drive, with the helium-sealed design reducing aerodynamic drag to deliver a lower operational power profile for better TCO in cloud-scale and software-defined data centre infrastructure. Rated at 2,500,000 hours MTBF with a 550TB/year workload rating and 24/7 availability — one of the most capable SATA enterprise drives in Toshiba’s lineup.
In stock
Description
⚠️ 4Kn Sector Format — Verify Compatibility Before Purchasing
The MG07ACA12TA uses 4K native (4Kn) sector format — physical and logical sectors are both 4,096 bytes with no 512-byte emulation layer. This requires a modern OS (Windows 8 and later, recent Linux kernels) and a compatible HBA or RAID controller that supports 4Kn drives. Legacy BIOS systems, older Windows versions, and some older RAID controllers may not support 4Kn drives. If you require broader legacy compatibility, the MG07ACA12TE is the 512e emulation variant of the same drive.
World’s First 9-Disk Helium-Sealed Design
Using the world’s first 9-disk helium-sealed design, the MG07ACA Enterprise Capacity SATA HDD provides up to 12TB of conventional magnetic recording (CMR) and 7,200 RPM performance. Sealing helium rather than air inside the drive enclosure dramatically reduces aerodynamic drag on the spinning platters, enabling nine platters in the same standard 3.5″ 1.0″ form factor that previously accommodated far fewer — delivering 12TB without increasing chassis dimensions or cooling requirements.
Enterprise Performance & Power Efficiency
The MG07ACA12TA delivers a maximum sustained data transfer rate of 242 MiB/s typical, with active idle power of 4.25W typical and random read/write power of 7.83W typical. The 256MB cache — four times larger than the MG03ACA series — significantly improves mixed-workload handling, and the helium design’s inherent power efficiency delivers excellent watts-per-terabyte ratios for dense rack deployments.
Reliability Built for the Data Centre
The MG07ACA series carries an MTTF of 2,500,000 hours with an AFR of 0.35%, a non-recoverable error rate of 10 errors per 10^16 bits read, 600,000 load/unload cycles, and a rated annual workload of 550TB/year at 24/7 availability. This combination of metrics places it firmly in the same tier as the Seagate Exos X series — genuine hyperscale-grade reliability on standard SATA.
Broad Enterprise Application Fit
The MG Series is ideal for enterprise storage arrays and industrial server and storage systems, providing the capacity and advanced technologies to meet the special demands of data centre and cloud-scale infrastructures. It integrates directly into any standard 3.5″ SATA drive bay, requiring no SAS HBA or specialist controller beyond 4Kn sector compatibility.
Key Highlights
- 12TB enterprise CMR — helium-sealed 9-disk design
- World’s first 9-disk helium-sealed platform for maximum storage density
- 256MB cache — 4× larger than MG03ACA series
- SATA 6Gb/s — no SAS HBA required
- 2,500,000 hour MTTF and 0.35% AFR
- Non-recoverable error rate of 1 per 10^16 bits
- 550TB/year workload rating — 24/7 enterprise duty cycle
- 600,000 load/unload cycles
- 242 MiB/s sustained transfer rate
- Active idle power of just 4.25W — excellent W/TB efficiency
- 4Kn sector format — verify OS and controller compatibility
Proudly sold by the Ringwood Digital Store.
Additional information
| Model | MG07ACA12TA |
|---|
