TP-Link Omada ER7206 (1x SFP WAN, 1x RJ45 WAN, 2x RJ45 LAN, 2x WAN/LAN) VPN Router

Description

Professional Multi-WAN Gateway for Business Networks

The TP-Link Omada ER7206 is a professional, secure, and reliable gateway with centralised management capability. Its flexible port layout supports up to four simultaneous WAN connections, making it a solid choice for businesses that depend on consistent uptime and need to spread traffic intelligently across multiple internet links.

Key Highlights

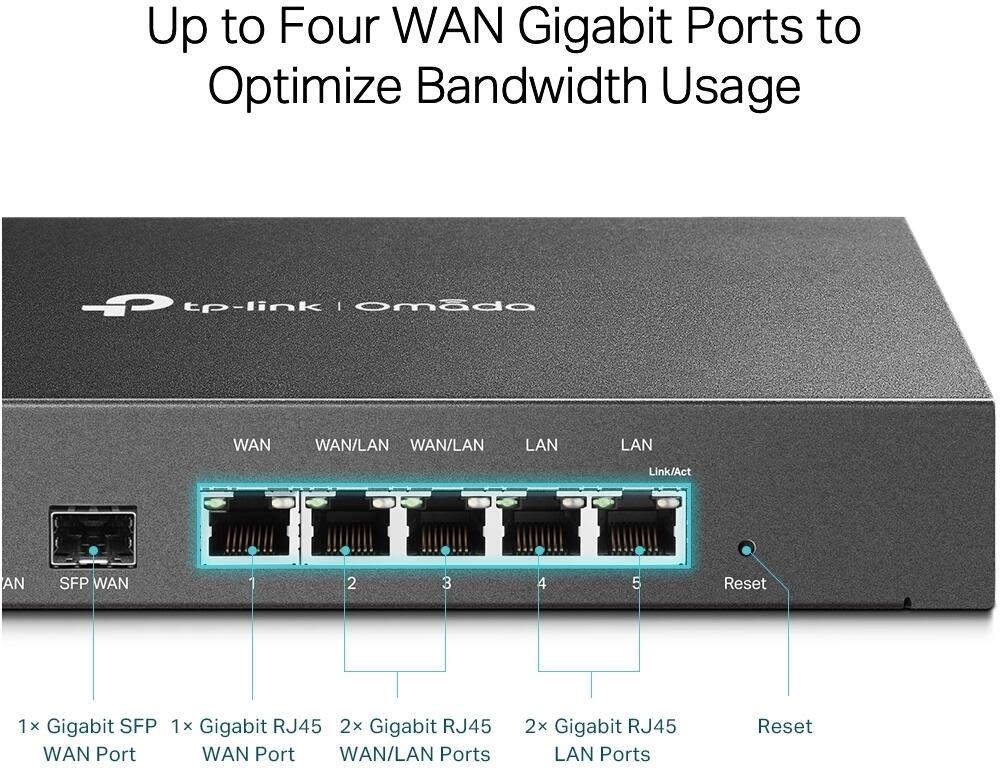

• 1× Gigabit SFP WAN port, 1× Gigabit RJ45 WAN port, and 2× Gigabit RJ45 WAN/LAN ports for multi-WAN flexibility
• Up to 700 concurrent client devices and 150,000 associated sessions
• 291.6 Mb/s IPsec VPN throughput
• Durable metal casing suitable for desktop deployment in office environments



Multi-WAN Load Balancing & Failover

The intelligent load balancing function distributes data streams according to the bandwidth proportion of each WAN port, raising the utilisation rate of multi-line broadband and allowing one device to satisfy various internet access requirements. Failover ensures that if a primary WAN link goes down, traffic automatically shifts to an available backup connection with minimal disruption.

• Up to 4 WAN ports with intelligent load balancing and automatic failover
• Mix of SFP fibre and RJ45 copper WAN interfaces for deployment flexibility
• 2× dedicated Gigabit LAN ports for reliable local network distribution
• Professional 4 kV lightning protection for hardware longevity



Comprehensive VPN Support

The ER7206 supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN, 50× L2TP, and 50× PPTP VPN connections, with one-click auto IPSec VPN (via Omada SDN Controller) simplifying configuration and securing data transmission. This makes it well-suited for businesses with branch offices, remote workers, or partner network connections that require persistent encrypted tunnels.

• IPsec, OpenVPN, L2TP, PPTP — client and server modes
• Up to 100× LAN-to-LAN IPsec, 50× OpenVPN, 50× L2TP, and 50× PPTP VPN connections
• One-click auto IPSec VPN via Omada SDN Controller
• Supports IKEv1/v2 (controller required)



Advanced Security Features

Advanced firewall policies, DoS defence, IP/MAC/URL filtering, and additional security functions protect the network and data at both the perimeter and application level. Access control lists allow granular control over which users and devices can reach specific network resources.

• SPI firewall with DoS/DDoS attack prevention
• IP/MAC/URL filtering and Access Control List (ACL)
• IP-MAC binding to prevent unauthorised device access
• Speed test and traffic monitoring tools built in



Omada SDN Integration & Centralised Management

Full Omada SDN integration supports Zero-Touch Provisioning, centralised cloud management, and intelligent monitoring, allowing the ER7206 to be deployed and managed remotely as part of a broader Omada network infrastructure. Standalone mode is also supported for simpler single-site deployments.

• Full Omada SDN integration with Zero-Touch Provisioning
• Cloud access and Omada app for remote management from any location
• Compatible with Omada hardware, software, and cloud-based controllers
• Standalone web UI for controller-free operation
