Ubiquiti UniFi Cloud Gateway Ultra

Description

Full UniFi Network Stack in a Compact Desktop Device

The UniFi Cloud Gateway Ultra is a powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features. By running the UniFi Network application directly on the gateway itself, the UCG-Ultra eliminates the need for a separate Cloud Key or controller server — making it the most cost-effective entry point into the full UniFi managed networking ecosystem. A 1.5GHz Cortex-A53 Quad-Core processor, 3GB DDR4 memory, and 16GB eMMC storage provide the headroom to handle routing, IDS/IPS, and controller duties simultaneously without compromise.

Key Highlights

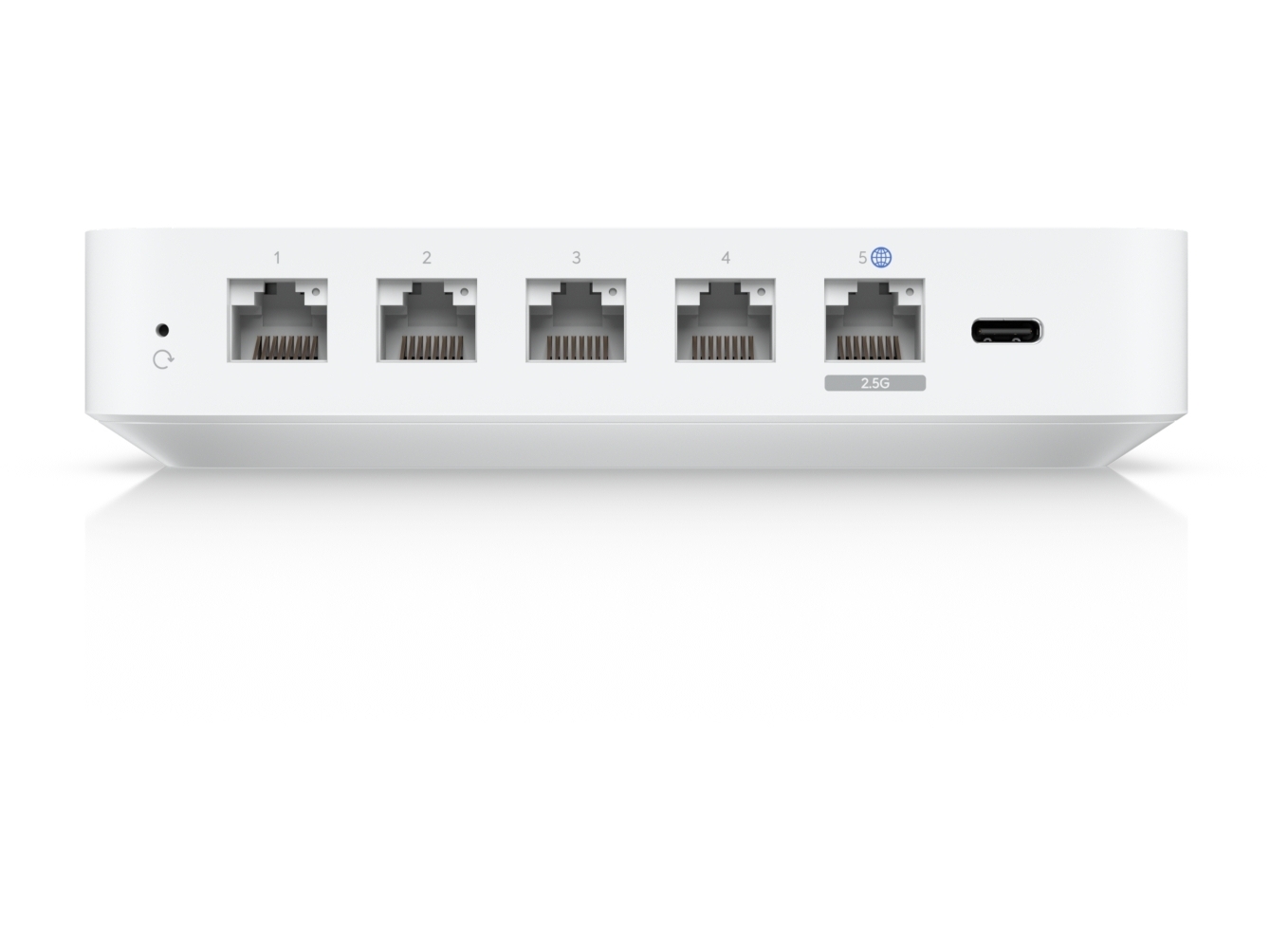

• 1× 2.5 GbE RJ45 WAN port and 4× Gigabit RJ45 LAN ports (one re-mappable as a second WAN port)
• 1.5GHz Quad-Core ARM Cortex-A53 CPU, 3GB DDR4, 16GB eMMC
• Manages 30+ UniFi Network devices and 300+ simultaneous clients

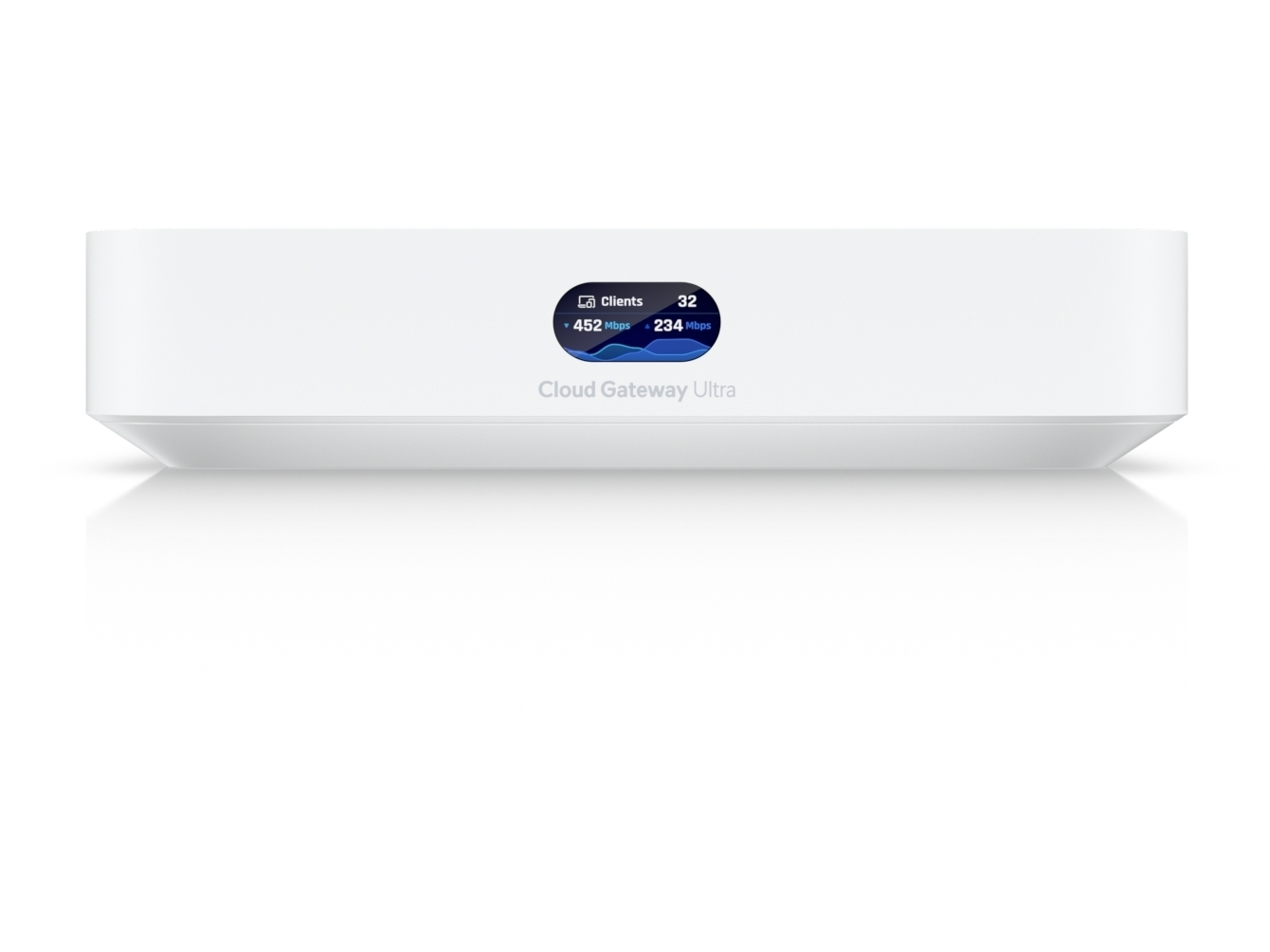

• 0.96″ LCM status display for at-a-glance network health monitoring

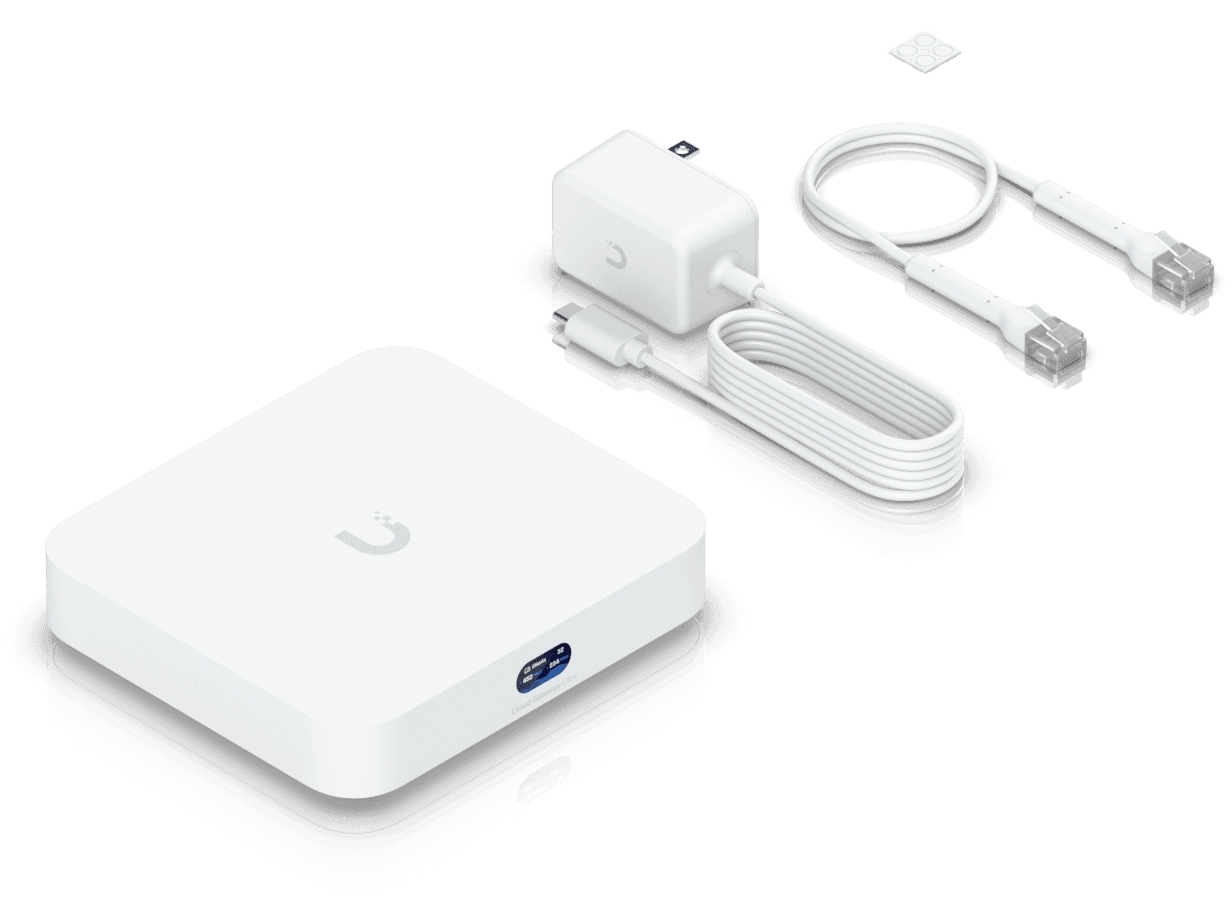

• USB-C powered — compact, fanless desktop form factor

Multi-WAN & Advanced Routing

Multi-WAN load balancing and automatic failover ensure uninterrupted connectivity across multiple internet connections, with intelligent traffic distribution across available WAN links. Up to 4 ports can be configured as WAN interfaces, providing exceptional redundancy flexibility for a device at this price point.

• Multi-WAN load balancing and automatic failover
• Up to 4 WAN ports (default 1× 2.5 GbE + optional LAN-to-WAN remapping)
• Policy-based WAN and VPN routing for granular traffic control
• DHCP relay, customisable DHCP server, IGMP proxy, and full IPv6 ISP support

Next-Generation Security Suite

Security features include a stateful firewall, application-aware Layer 7 firewall, DPI and traffic identification, zone-based firewall with advanced filtering (regions, domains, apps), content filtering, and intrusion prevention (IPS/IDS) — all at up to 1 Gbps throughput. This is a level of security depth that previously required dedicated security appliances or significantly more expensive gateways.

• 1 Gbps IDS/IPS throughput with signature-based threat detection
• Stateful firewall and application-aware Layer 7 firewall
• DPI and traffic identification for per-application visibility
• Zone-based firewall with region, domain, and app filtering
• Content filtering and ad blocking

VPN & Secure Remote Access

VPN support includes WireGuard, L2TP, and OpenVPN server modes, OpenVPN client, OpenVPN and IPsec site-to-site VPN, and one-click Teleport and Identity VPN — making it straightforward to set up secure remote access for staff without complex configuration. License-free SD-WAN encrypts inter-site data without ongoing subscription fees.

• WireGuard, OpenVPN, and L2TP VPN server and client support
• IPsec and OpenVPN site-to-site VPN
• License-free SD-WAN for encrypted inter-site connectivity
• One-click Teleport VPN for easy remote worker access

UniFi Ecosystem Integration

The UCG-Ultra serves as the central controller for the entire UniFi network stack — managing UniFi switches, access points, and other network devices from the familiar UniFi Network interface, accessible via browser or the UniFi mobile app for iOS and Android. It runs UniFi Network only and does not support UniFi Protect (cameras) or UniFi Access (door control) — deployments requiring those applications should consider the Cloud Gateway Max instead.

• Full UniFi Network controller built in — no separate Cloud Key required
• Managed via UniFi web interface or UniFi mobile app (iOS and Android)
• Supports UniFi switches, access points, and network devices

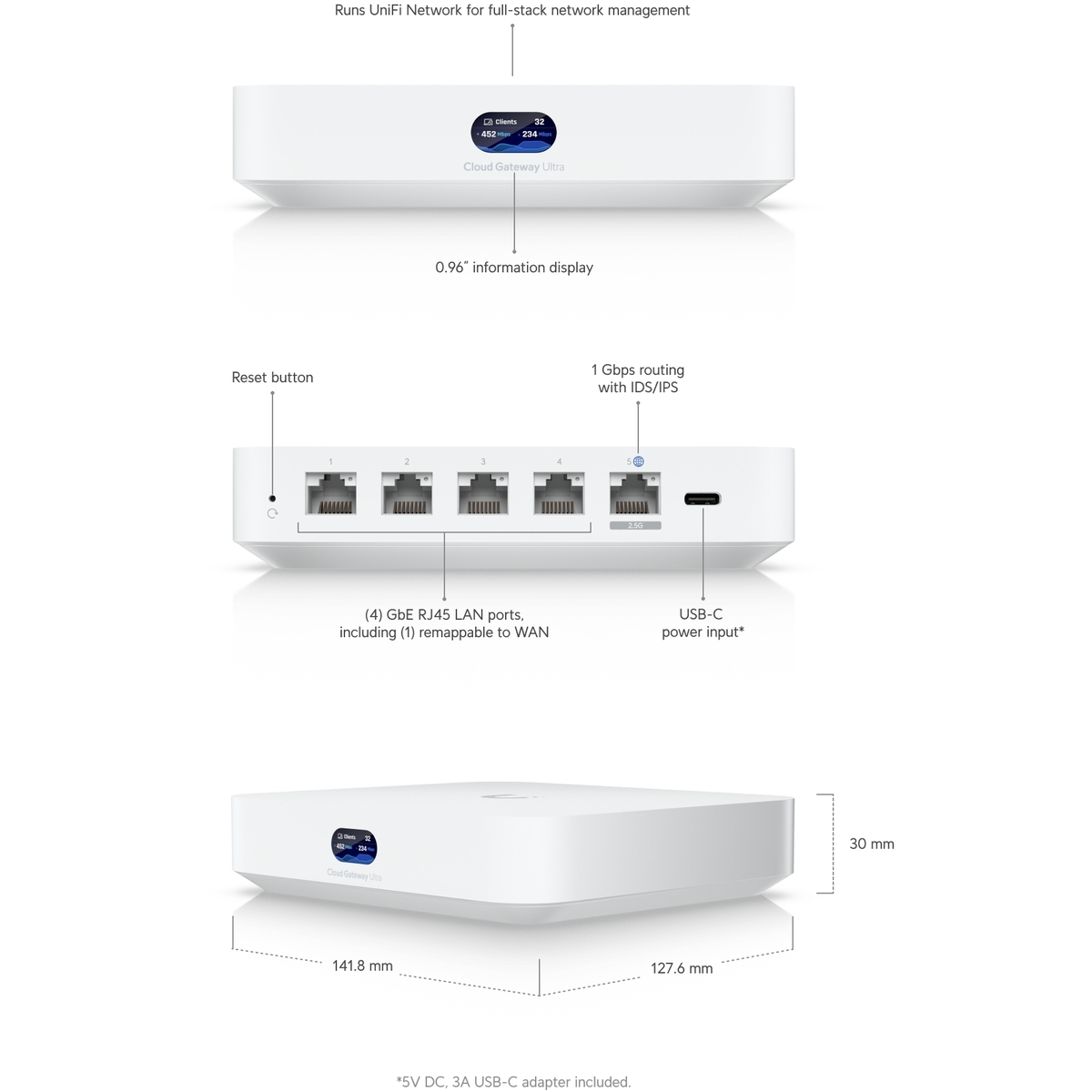

• 141.8 × 127.6 × 30 mm compact desktop form factor, max 6.2W power consumption
