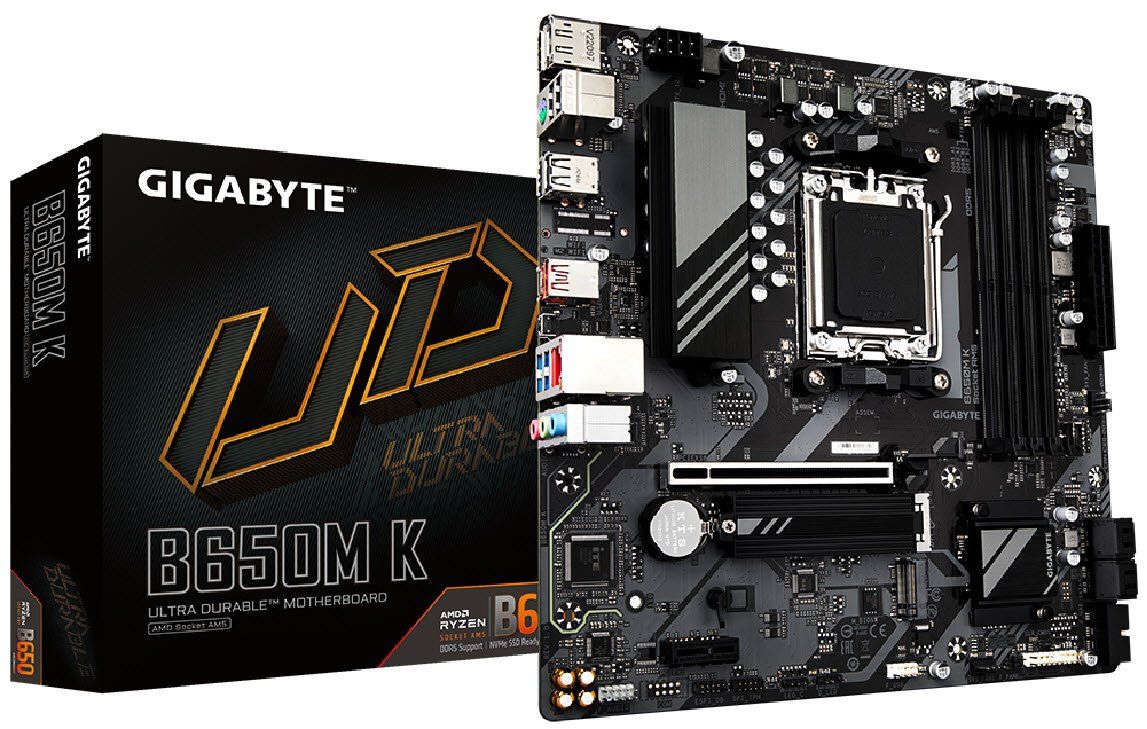

Gigabyte B650M-K AMD AM5

Description

B650 Mid-Range Connectivity Without the AORUS Premium

The B650M-K occupies a comfortable mid-range position in Gigabyte’s B650M lineup — above the entry-level S2H and budget D3HP, but without the AORUS-tier VRM and PCIe 5.0 M.2 of the Aorus Elite family. What sets it apart at its price point is the rear panel: a USB 3.2 Gen2 Type-C (10 Gbps) and a USB 3.2 Gen2 Type-A (10 Gbps) port from the CPU, alongside two USB Gen1 Type-A ports — the fastest rear USB speeds in Gigabyte’s B650M lineup at this tier. The 8+2+2 phase digital VRM (rev 1.1) provides a meaningful step up from the entry-level 5+2+2 stage, handling the full Ryzen range at stock with better thermal margins and moderate OC headroom. Both M.2 slots are covered by M.2 Thermal Guard heatsinks and support the extended 25110 form factor, giving this board a storage-friendly spec for its price class. EZ-Latch on the primary PCIe x16 slot and Q-Flash Plus round out the build-friendly feature set.

⚠️ B650 supports CPU overclocking. The 8+2+2 VRM handles mainstream 65–105W Ryzen builds comfortably at stock and supports moderate CPU OC. Extended all-core overclocking on high-TDP Ryzen 9 chips is outside the optimal range of this power stage.

💡 Rev 1.0 uses an 8+2+1 VRM; rev 1.1 bumps this to 8+2+2. Both revisions are otherwise identical in connectivity and features.

Memory and Storage

Four DDR5 DIMM slots support dual-channel operation up to 256 GB, with AMD EXPO and XMP profiles reaching DDR5-8000 (OC). M2A_CPU is CPU-connected at PCIe 4.0 x4 (64 Gb/s), supporting 2580 and 2280 form factors. M2B_CPU is also CPU-connected at PCIe 4.0 x4 (64 Gb/s) with Ryzen 7000/9000 and Ryzen 8000 Phoenix 1, but drops to PCIe 4.0 x2 with Ryzen 8000 Phoenix 2, and supports up to the extended 25110 form factor alongside 22110, 2580, and 2280. Both M.2 slots are covered by M.2 Thermal Guard heatsinks. Four SATA 6Gb/s ports handle additional storage, with RAID 0/1/10 supported for both SATA and NVMe.

⚠️ M2B_CPU drops to PCIe 4.0 x2 (32 Gb/s) with Ryzen 8000 Phoenix 2 processors specifically. Ryzen 7000, 9000, and Ryzen 8000 Phoenix 1 all run M2B_CPU at the full PCIe 4.0 x4 rate.

⚠️ Neither M.2 slot reaches PCIe 5.0 speeds — the maximum M.2 bandwidth on this board is PCIe 4.0 x4 (64 Gb/s). The B650M Aorus Elite is the step up for PCIe Gen5 NVMe.

Connectivity and I/O

The rear panel stands out for the price tier: a USB 3.2 Gen2 Type-C (10 Gbps) and a USB 3.2 Gen2 Type-A (10 Gbps, red) sit alongside two USB 3.2 Gen1 Type-A (5 Gbps), four USB 2.0 Type-A, a PS/2 keyboard/mouse combo port, and the Q-Flash Plus button. DisplayPort 1.4 (4K 144Hz) and HDMI 2.1 (4K 60Hz) provide display outputs for iGPU-equipped processors — there is no D-Sub on this board. A front panel USB 3.2 Gen1 Type-C header and a Gen1 header for two further Type-A ports cover modern case panels, alongside a USB 2.0 header. Realtek 2.5GbE LAN handles wired networking. Fan headers consist of one CPU fan and two system fan headers — three total, all 4-pin PWM/DC with Smart Fan 6 control and FAN STOP. RGB is provided via one Addressable Gen2 (ARGB) header and one standard RGB LED header via RGB Fusion 2.0.

⚠️ No onboard Wi-Fi and no M.2 Key E slot for a wireless module. A USB or PCIe adapter is required for wireless connectivity.

⚠️ Only three fan headers are present. Builds with multiple chassis fans will need a fan splitter or hub.

⚠️ Integrated display output (HDMI/DisplayPort) requires a Ryzen processor with integrated Radeon graphics. Non-G Ryzen 7000/9000 CPUs require a discrete GPU.

Key Highlights

• AMD B650 chipset, Socket AM5 — CPU overclocking supported
• Supports Ryzen 7000, 8000, and 9000 Series
• Micro-ATX form factor
• 8+2+2 phase digital VRM (rev 1.1) / 8+2+1 (rev 1.0)
• Single 8-pin ATX12V CPU power connector
• 4× DDR5 DIMM slots, dual-channel, up to 256 GB, DDR5-8000 (OC)
• AMD EXPO and XMP memory profile support
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, 2580/2280, Thermal Guard) — M2A_CPU
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, up to 25110, Thermal Guard) — M2B_CPU (x2 with Ryzen 8000 Phoenix 2)
• 4× SATA 6Gb/s ports
• RAID 0/1/10 for SATA and NVMe
• 1× PCIe 4.0 x16 (EZ-Latch) + 1× PCIe 3.0 x1 (chipset)
• DisplayPort 1.4 (4K 144Hz) + HDMI 2.1 (4K 60Hz) — no D-Sub
• Realtek 2.5GbE LAN
• No onboard Wi-Fi — wired-only, no M.2 Key E slot
• Rear USB: Gen2 Type-C (10 Gbps) + Gen2 Type-A (10 Gbps) + 2× Gen1 Type-A (5 Gbps) + 4× USB 2.0
• PS/2 keyboard/mouse combo port — rear
• Front USB 3.2 Gen1 Type-C header + Gen1 header (2 ports) + USB 2.0 header (2 ports)
• 1× CPU fan + 2× system fan headers — Smart Fan 6, FAN STOP
• 1× Addressable Gen2 (ARGB) header + 1× RGB LED header — RGB Fusion 2.0
• EZ-Latch on PCIe x16 slot
• Q-Flash Plus (BIOS update without CPU/RAM)
• SPI TPM header
• Realtek ALC897 HD Audio, audio noise guard
