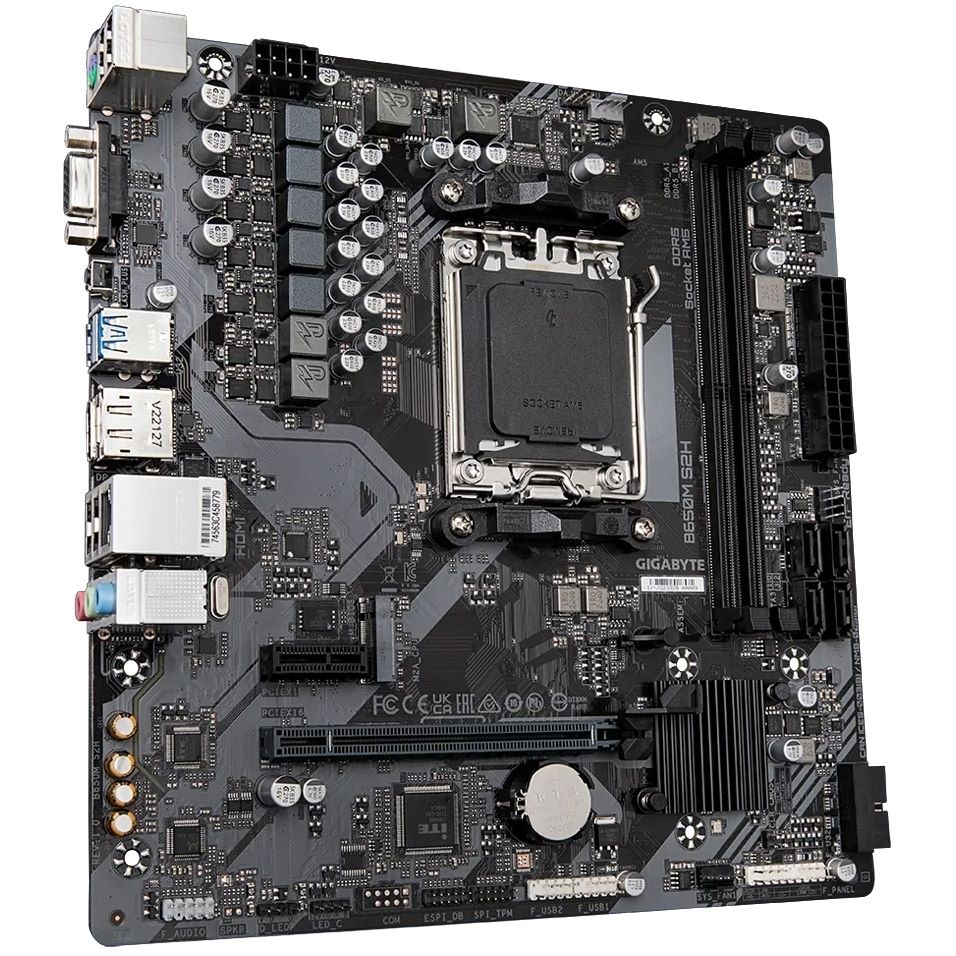

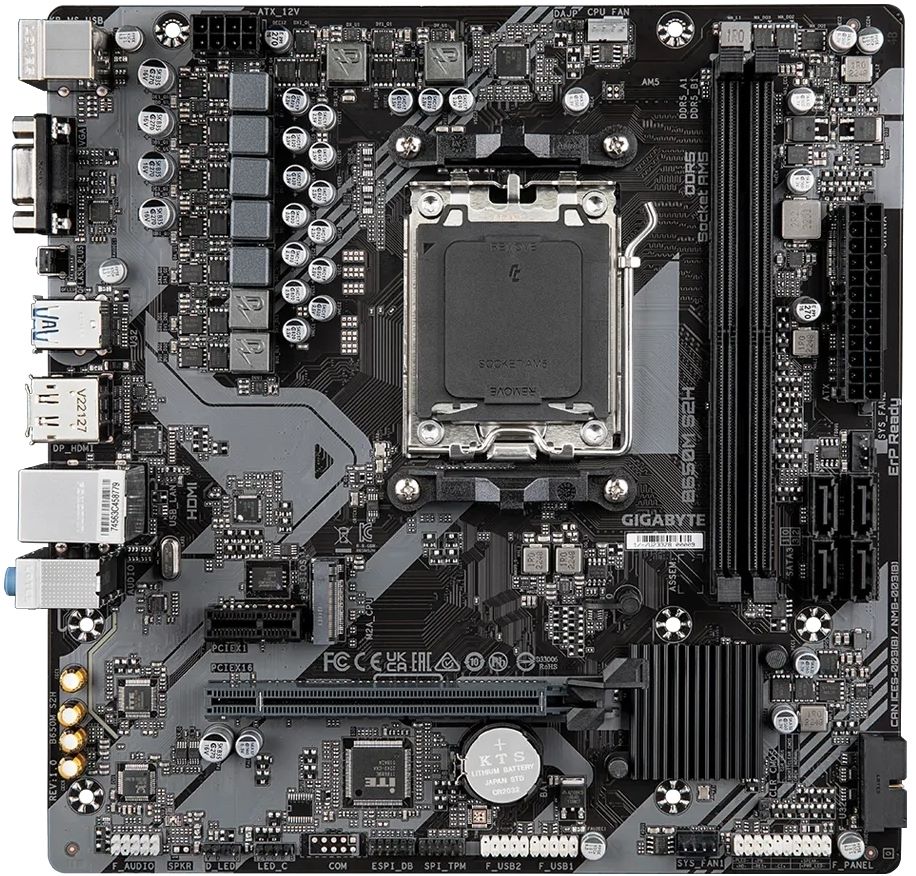

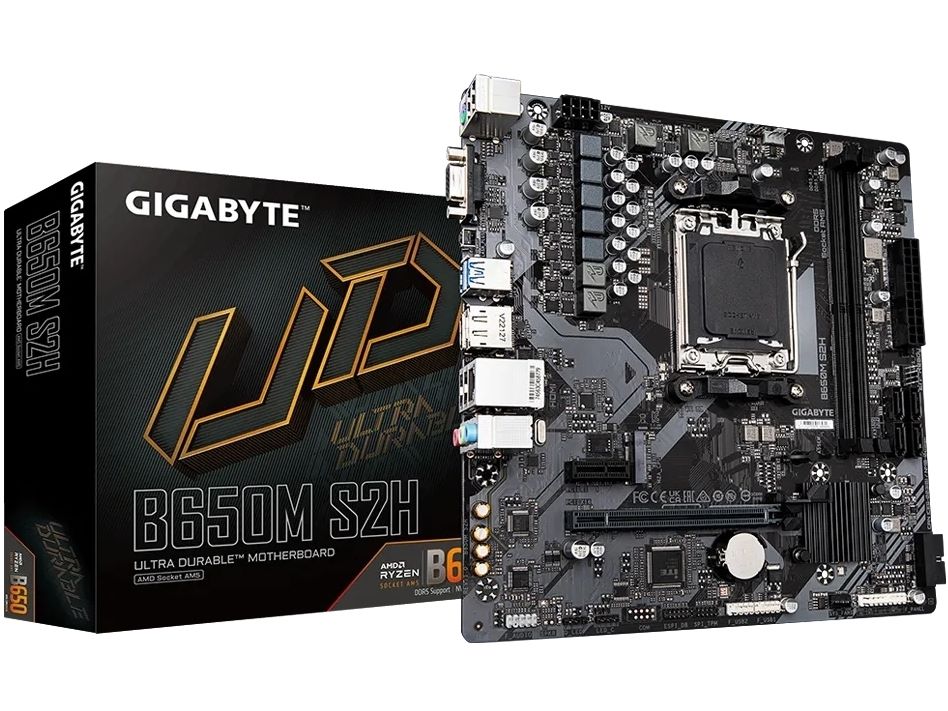

Gigabyte B650M S2H AMD AM5

B650 Overclocking Support, Familiar Budget Formula

The B650M S2H follows the same stripped-back design language as Gigabyte’s A620M S2H but steps up to the B650 chipset, unlocking CPU overclocking support for builders who need that headroom without paying for a higher-tier board. The 5+2+2 phase digital VRM is honest entry-level positioning — well-suited to everyday Ryzen builds within its power delivery limits — and the triple-display rear output (DisplayPort 1.4, HDMI 2.1, and D-Sub) is a practical inclusion for office, workstation, or multi-monitor iGPU builds. EZ-Latch on the primary PCIe x16 slot handles tool-free graphics card removal, and Q-Flash Plus makes BIOS updates straightforward without requiring a CPU or RAM in the board.

⚠️ B650 supports CPU overclocking, but the 5+2+2 VRM is best matched to 65W TDP processors under sustained workloads. 105W CPUs run at stock without issue, but sustained all-core overclocking pushes this power stage to its limits. For heavy OC or high-TDP Ryzen 9 builds, step up to the B650M D3HP or B650M Aorus Elite.

Memory and Storage

Two DDR5 DIMM slots support dual-channel operation up to 128 GB, with AMD EXPO and XMP profiles reaching DDR5-7200 (OC). The single CPU-connected M.2 slot (M2A_CPU) runs at PCIe 4.0 x4 (64 Gb/s) across all supported CPU generations and accepts both 2580 and 2280 form factor drives. Four SATA 6Gb/s ports handle additional storage, with RAID 0/1/10 supported for both SATA and NVMe.

⚠️ Only one M.2 slot is present with no chipset M.2 — additional NVMe drives cannot be installed. Extra storage must use the SATA ports.

⚠️ Only two DIMM slots are present, with a maximum of 128 GB. Builders needing four slots or higher capacity should consider the B650M D3HP (4× DIMM, 256 GB) instead.

⚠️ Memory OC ceiling is DDR5-7200 — lower than the 8000+ achievable on most B650 boards higher in the range. Verify kit compatibility with Gigabyte’s QVL if high-speed memory is planned.

Connectivity and I/O

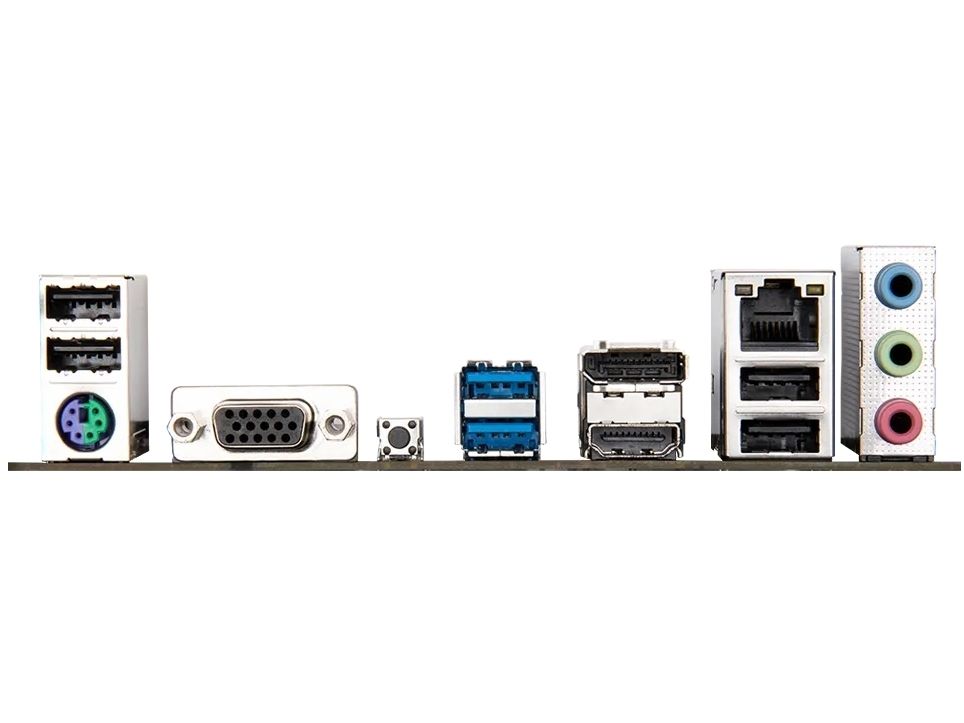

Rear I/O covers the essentials: two USB 3.2 Gen1 Type-A (5 Gbps, CPU), three USB 2.0 Type-A (chipset, rear), and a PS/2 keyboard/mouse combo port alongside the triple display outputs and a Q-Flash Plus button. Front panel connectivity is handled by a USB 3.2 Gen1 header and two USB 2.0 headers. Realtek Gigabit LAN (1GbE) handles wired networking — there is no 2.5GbE on this board. Fan headers consist of one CPU fan and two system fan headers — three total, all 4-pin PWM/DC with Smart Fan 6 control and FAN STOP. RGB is provided via one Addressable Gen2 (ARGB) header and one standard RGB LED header via RGB Fusion 2.0.

⚠️ LAN speed is 1 Gigabit only — no 2.5GbE. If faster wired networking is needed, the B650M D3HP or B650M D3HP AX both include 2.5GbE.

⚠️ No USB Type-C is present anywhere on this board — neither rear nor as a front panel header.

⚠️ No onboard Wi-Fi and no M.2 Key E slot for a wireless module. A USB or PCIe adapter is required for wireless connectivity.

⚠️ Integrated display output (DP/HDMI/D-Sub) requires a Ryzen processor with integrated Radeon graphics. Non-G Ryzen 7000/9000 CPUs require a discrete GPU.

Key Highlights

• AMD B650 chipset, Socket AM5 — CPU overclocking supported
• Supports Ryzen 7000, 8000, and 9000 Series
• Micro-ATX form factor
• 5+2+2 phase digital VRM
• Single 8-pin ATX12V CPU power connector
• 2× DDR5 DIMM slots, dual-channel, up to 128 GB, DDR5-7200 (OC)
• AMD EXPO and XMP memory profile support
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, 2580/2280) — single M.2 slot only
• 4× SATA 6Gb/s ports
• RAID 0/1/10 for SATA and NVMe
• 1× PCIe 4.0 x16 (EZ-Latch) + 1× PCIe 3.0 x1 (chipset)
• DisplayPort 1.4 (4K 144Hz) + HDMI 2.1 (4K 60Hz) + D-Sub (1920×1200) — triple display (iGPU only)
• Realtek 1GbE LAN — not 2.5GbE
• No onboard Wi-Fi — wired-only, no M.2 Key E slot
• 5× rear USB: 2× Gen1 Type-A (5 Gbps) + 3× USB 2.0 Type-A
• No USB Type-C — rear or front panel
• PS/2 keyboard/mouse combo port — rear
• Front USB 3.2 Gen1 header (2 ports) + 2× USB 2.0 headers (4 ports)
• 1× CPU fan + 2× system fan headers — Smart Fan 6, FAN STOP
• 1× Addressable Gen2 (ARGB) header + 1× RGB LED header — RGB Fusion 2.0
• EZ-Latch on PCIe x16 slot
• Q-Flash Plus (BIOS update without CPU/RAM)
• SPI TPM header
• Realtek ALC897 HD Audio, audio noise guard
