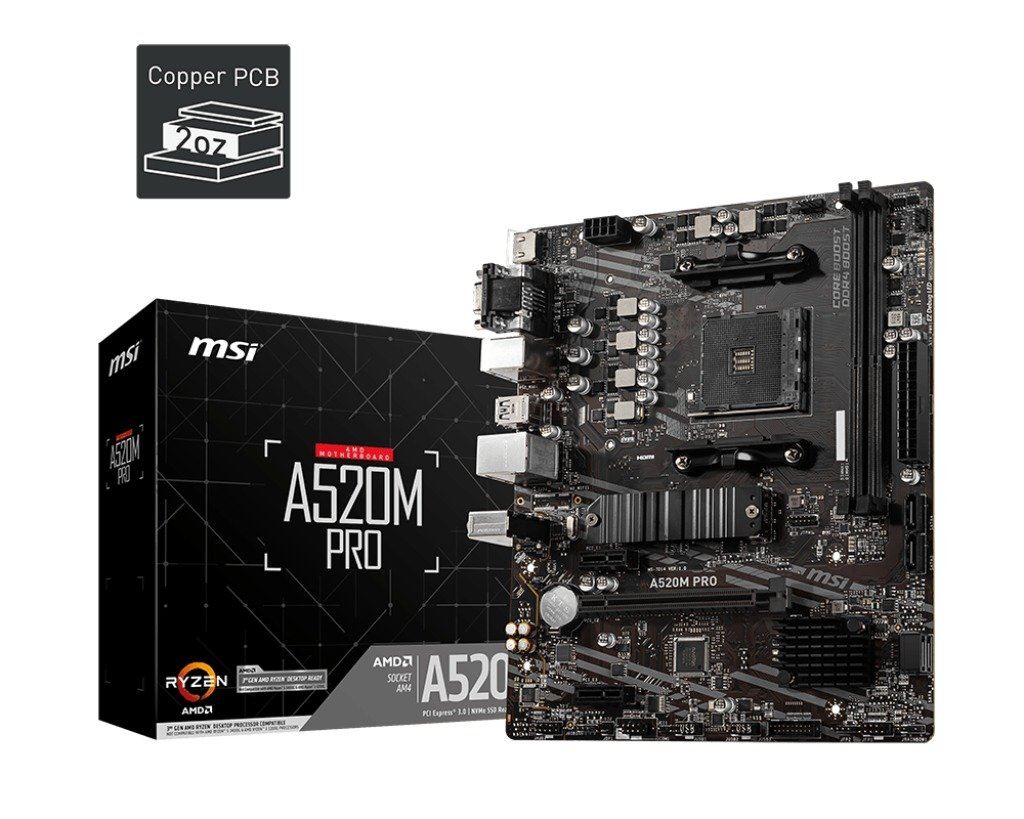

MSI A520M Pro AMD AM4

Description

Reliable AM4 Platform for Everyday Builds

The MSI A520M Pro delivers a stable and efficient foundation for AMD Ryzen-based desktop systems. Built on the A520 chipset with Socket AM4 compatibility, it supports the full breadth of Ryzen 3000, 4000 G-Series, and 5000 Series processors — giving businesses and home users access to a proven, widely available CPU ecosystem without paying for overclocking features they don’t need. The Micro-ATX form factor keeps the build compact while retaining enough expansion room for a standard desktop chassis.

Memory and Storage

Two DDR4 DIMM slots support up to 64 GB of dual-channel memory, with native speeds up to DDR4-3200 and A-XMP profiles extending support further for compatible kits. A single M.2 slot (PCIe 3.0) is covered by MSI’s M.2 Shield Frozr thermal solution, helping keep NVMe drives at safe operating temperatures under sustained workloads. Four SATA III ports round out storage connectivity for additional drives or optical devices.

Connectivity and Display

The rear I/O includes four USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports, alongside a Gigabit Ethernet port for wired network connectivity. Onboard display output (HDMI 2.1, supporting up to 4K@60Hz when paired with an APU) makes this board particularly well-suited for Ryzen G-Series APU builds where a discrete GPU is not required. Seven-channel audio is handled by a Realtek codec with Audio Boost for cleaner signal separation.

⚠️ The A520 chipset does not support CPU overclocking — if you need to push Ryzen clock speeds beyond stock, step up to a B550 or X570 board instead. RAM overclocking via A-XMP is still supported.

⚠️ Confirm your chosen Ryzen 5000 Series CPU against MSI’s official AM4 compatibility list, as some early A520 BIOS versions required an update before 5000-series support was available.

⚠️ This board has two memory slots — you cannot expand beyond two DIMMs. Plan your RAM capacity at time of purchase.

Key Highlights

• AMD A520 chipset, Socket AM4
• Supports Ryzen 3000, 4000 G-Series, and 5000 / 5000 G-Series processors
• 2x DDR4 DIMM slots, up to 64 GB, DDR4-3200 native + A-XMP
• 1x M.2 (PCIe 3.0) with M.2 Shield Frozr thermal cover
• 4x SATA III ports
• HDMI 2.1 output (up to 4K@60Hz with APU)
• 4x USB 3.2 Gen 1 + 2x USB 2.0 rear ports
• Realtek 7.1 Audio Boost
• Gigabit Ethernet
• Micro-ATX form factor
