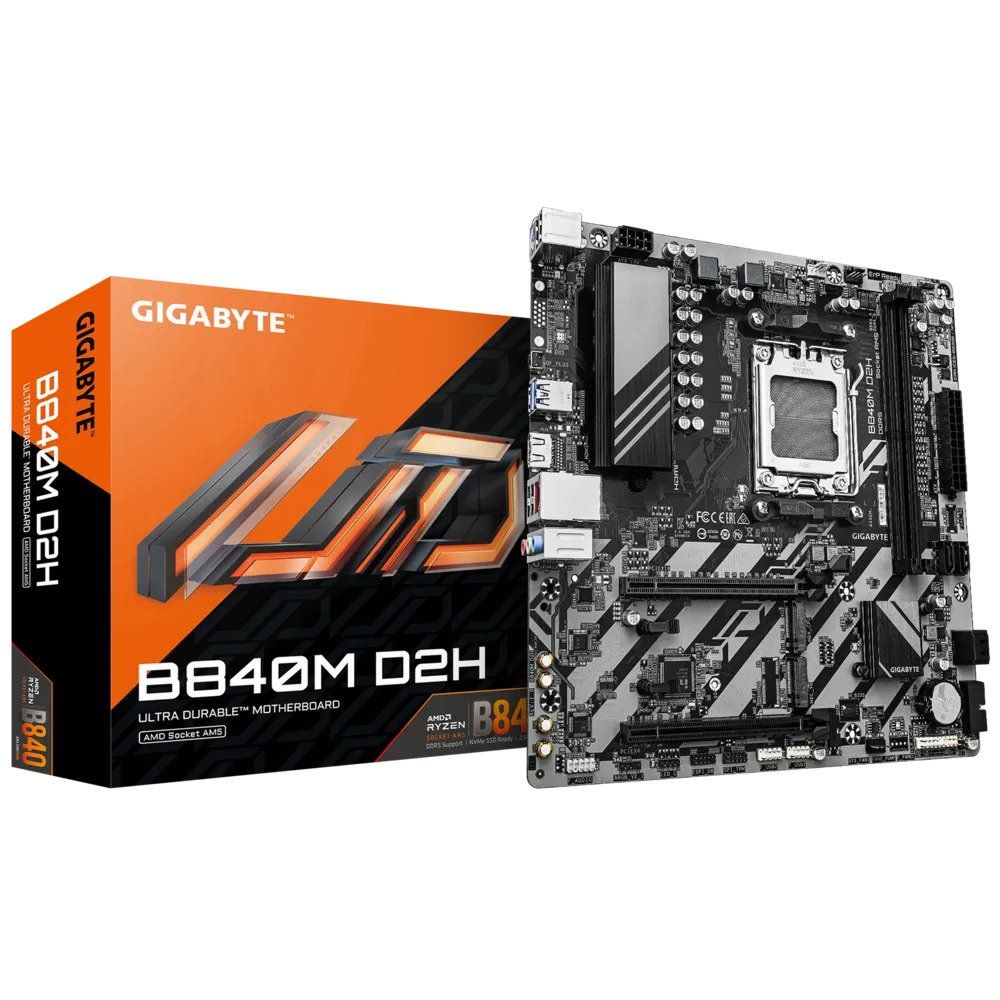

Gigabyte B840M D2H AMD AM5

Description

B840 Entry-Level Done Simply

The B840M D2H is Gigabyte’s most accessible B840 Micro-ATX board, offering the AM5 platform and DDR5 memory support with a deliberately minimal feature set aimed at straightforward everyday builds. The 5+2+2 phase digital VRM handles mainstream Ryzen loads cleanly, Realtek 2.5GbE LAN punches above the typical entry-level expectation by providing faster-than-Gigabit wired networking out of the box, and Q-Flash Plus enables BIOS updates without a CPU or RAM installed. The inclusion of two ARGB headers and an RGB header gives builders some lighting flexibility despite the board’s budget positioning, and the debug LEDs provide a useful boot-failure diagnostic tool.

⚠️ The B840 chipset does not support CPU overclocking. Memory overclocking via AMD EXPO and XMP profiles is supported up to DDR5-7600 (OC) — a lower ceiling than most other B840 boards. If higher memory OC speeds or CPU overclocking are needed, the B840M Aorus Elite WiFi6E or a B850 board are the appropriate steps up.

⚠️ The 5+2+2 VRM is best matched to 65W TDP processors under sustained workloads. 105W CPUs run at stock without issue, but sustained high-TDP loads are outside the comfort zone of this power stage.

Memory and Storage

Two DDR5 DIMM slots support dual-channel operation up to 128 GB, with AMD EXPO and XMP profiles reaching DDR5-7600 (OC). M2A_CPU is CPU-connected at PCIe 4.0 x4 (64 Gb/s) and supports both 2580 and 2280 form factors. M2C_SB is chipset-connected and runs at PCIe 3.0 x2 (16 Gb/s) in 2280 form factor only — a notably limited bandwidth compared to chipset M.2 slots on higher-tier boards. Four SATA 6Gb/s ports handle additional storage. RAID 0/1/10 is supported for SATA; NVMe RAID supports 0/1/5/10 on Ryzen 9000 (RAID 5 requires Ryzen 9000) and RAID 0/1/10 on Ryzen 7000/8000.

⚠️ M2C_SB runs at PCIe 3.0 x2 (16 Gb/s) — significantly slower than the PCIe 4.0 x4 standard found on most competing boards. This slot is best used for secondary or low-demand NVMe storage rather than a primary high-performance SSD.

⚠️ Only two DIMM slots are present — maximum 128 GB across two matched sticks. Builders who need four DIMM slots or more capacity should look at the B840M Aorus Elite WiFi6E (4× DIMM, 256 GB).

Connectivity and I/O

The rear panel is straightforward: two USB 3.2 Gen1 Type-A (5 Gbps, CPU), four USB 2.0 Type-A (CPU+hub), a PS/2 keyboard/mouse combo port, one HDMI 2.1 port, and the Q-Flash Plus button alongside the Realtek 2.5GbE RJ-45 port. There is no DisplayPort, no USB Type-C on the rear, and no Wi-Fi. Front panel connectivity is limited to a USB 3.2 Gen1 header (2 ports) and two USB 2.0 headers (4 ports) — no front USB Type-C header. Fan headers consist of a CPU fan, CPU fan/pump, and a single system fan header — three total with Smart Fan 6 PWM/DC control and FAN STOP. RGB is supported via two Addressable Gen2 (ARGB) headers and one standard RGB LED header via RGB Fusion 2.0.

⚠️ Only one display output is present — HDMI 2.1 only. There is no DisplayPort. Monitors that only accept DisplayPort input will require a discrete GPU.

⚠️ No USB Type-C is present on this board anywhere — neither rear nor as a front panel header.

⚠️ No onboard Wi-Fi and no M.2 Key E slot for a wireless module. A USB or PCIe adapter is required for wireless connectivity.

⚠️ Only three fan headers are present, including just one system fan header. Builds with multiple chassis fans will need a fan splitter or hub.

⚠️ Integrated display output (HDMI) requires a Ryzen processor with integrated Radeon graphics. Non-G Ryzen 7000/9000 CPUs require a discrete GPU.

Key Highlights

• AMD B840 chipset, Socket AM5 — no CPU overclocking
• Supports Ryzen 7000, 8000, and 9000 Series
• Micro-ATX form factor
• 5+2+2 phase digital VRM
• Single 8-pin ATX12V CPU power connector
• 2× DDR5 DIMM slots, dual-channel, up to 128 GB, DDR5-7600 (OC)
• AMD EXPO and XMP memory profile support
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, 2580/2280) — M2A_CPU
• 1× M.2 PCIe 3.0 x2 (chipset, 16 Gb/s, 2280 only) — M2C_SB
• 4× SATA 6Gb/s ports
• RAID 0/1/5/10 NVMe (Ryzen 9000) / 0/1/10 NVMe (Ryzen 7000/8000) / 0/1/10 SATA
• 1× PCIe 4.0 x16 (primary GPU) + 1× PCIe 3.0 x16 (x4 mode, chipset)
• HDMI 2.1 (4K 60Hz) only — no DisplayPort
• Realtek 2.5GbE LAN
• No onboard Wi-Fi — wired-only, no M.2 Key E slot
• 6× rear USB: 2× Gen1 Type-A (5 Gbps) + 4× USB 2.0 Type-A — no USB Type-C
• PS/2 keyboard/mouse combo port — rear
• Front USB 3.2 Gen1 header (2 ports) + 2× USB 2.0 headers (4 ports) — no front USB Type-C
• 1× CPU fan + 1× CPU fan/pump + 1× system fan header — Smart Fan 6, FAN STOP
• 2× Addressable Gen2 (ARGB) headers + 1× RGB LED header — RGB Fusion 2.0
• Debug boot LEDs (CPU/DRAM/VGA/BOOT)
• EZ-Latch on PCIe x16 slot
• Q-Flash Plus (BIOS update without CPU/RAM)
• SPI TPM header
• Realtek ALC897 HD Audio
