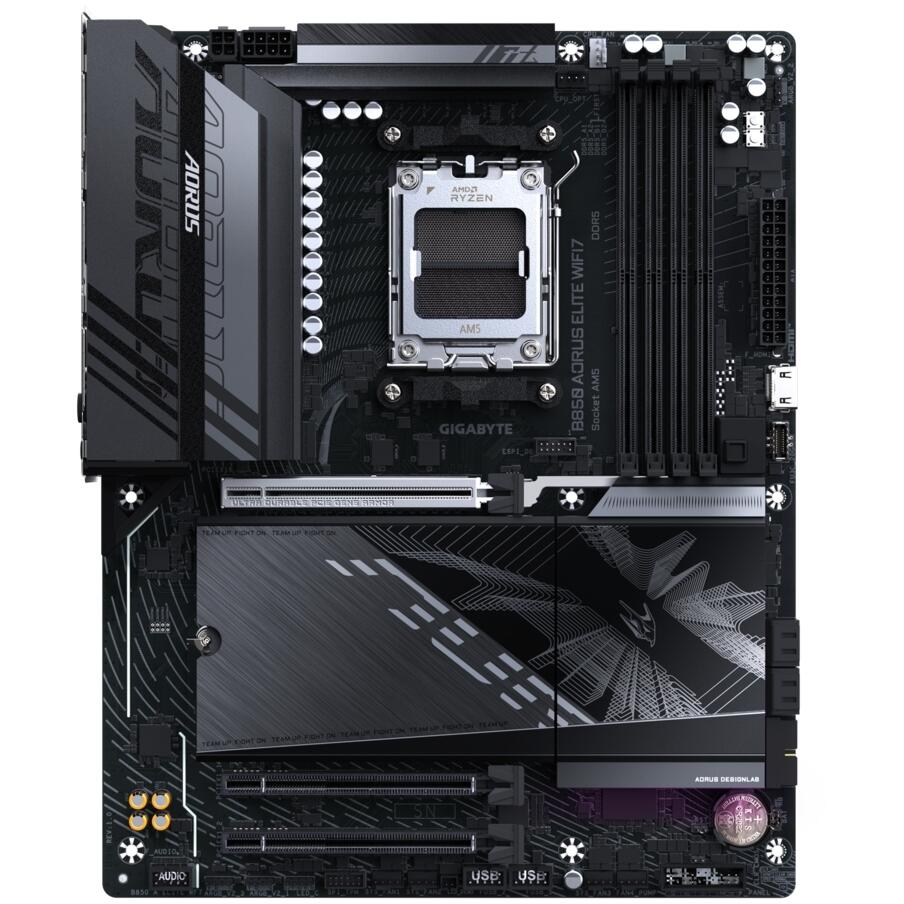

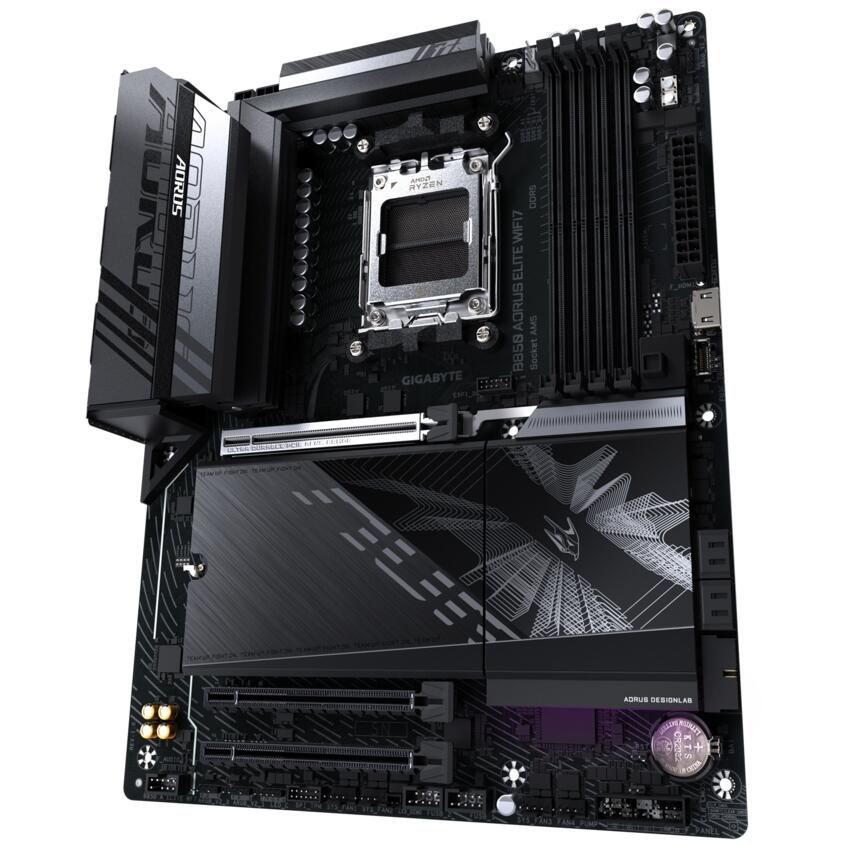

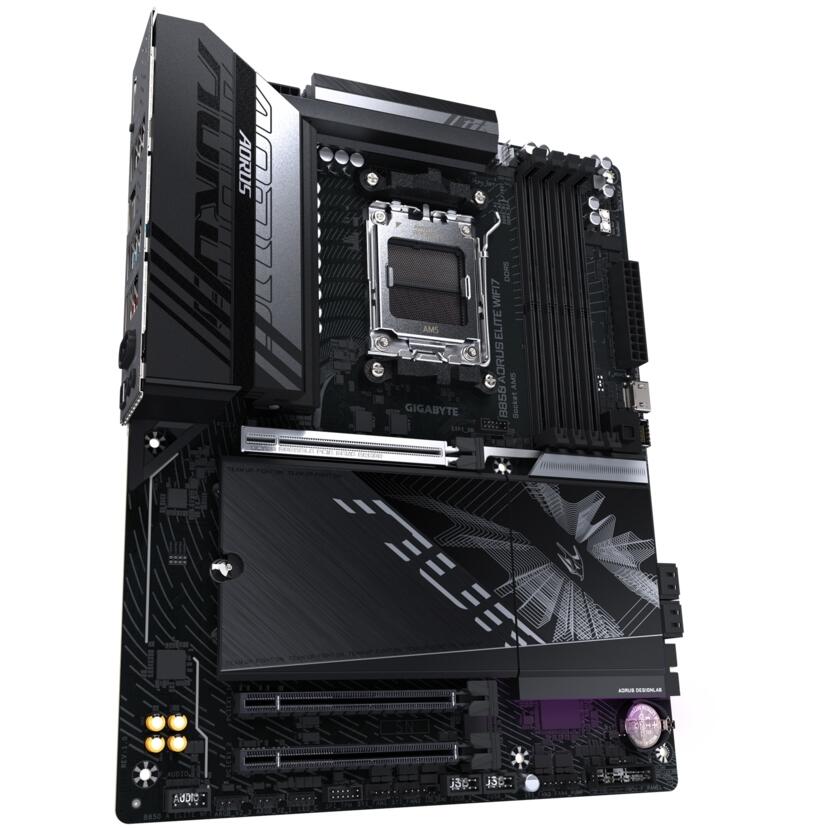

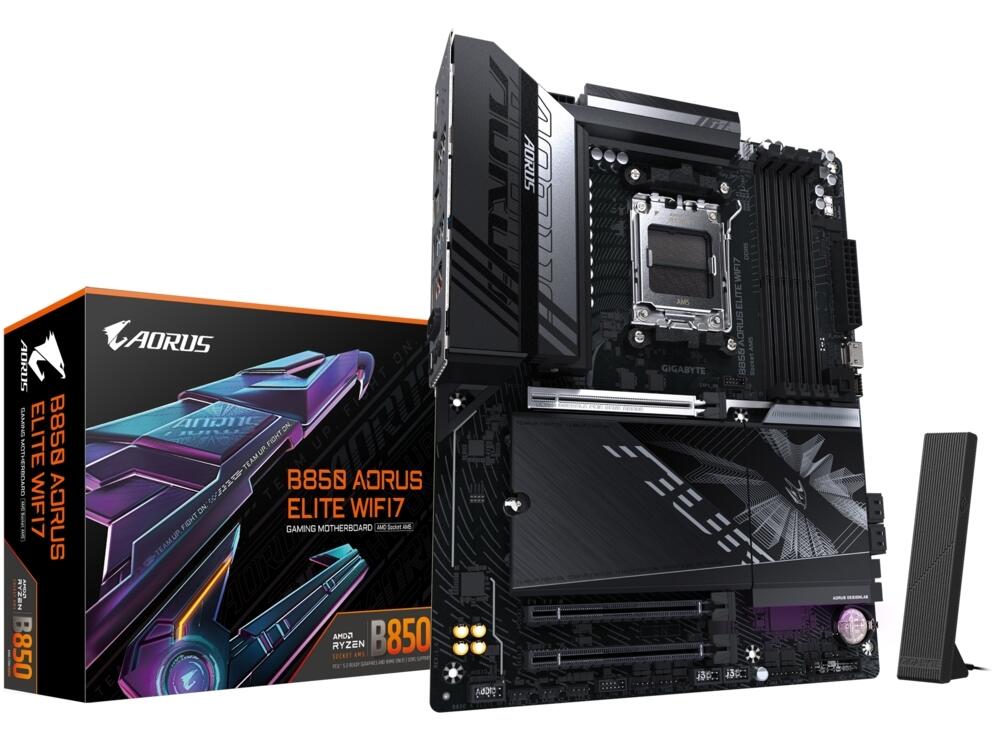

Gigabyte B850-A Elite WiFi 7 (AMD AM5) Motherboard
R5,155.00 inc. VAT
The Gigabyte B850-A Elite WiFi 7 is an AMD AM5 motherboard built for high-performance Ryzen processors and Wi-Fi 7 networking. It supports up to DDR5-8200 MT/s memory, extensive storage options, and versatile I/O for business workstations and gaming rigs.
In stock
Description
Next-Gen AMD AM5 Performance
Built on the AMD B850 chipset, this board supports Ryzen 9000, 8000 and 7000 Series processors, delivering powerful computing for both business and gaming environments.
Wi-Fi 7 & High-Speed Networking
Integrated Realtek Wi-Fi 7 (RTL8922AE) provides 2.4/5/6 GHz connectivity, Bluetooth 5.4 and a 2.5 GbE LAN port for ultrafast, stable connections.
Key Highlights
- Supports AMD Ryzen 9000/8000/7000 Series CPUs
- DDR5 memory up to 8200 MT/s (O.C.) with 4 DIMM sockets, max 256 GB
- Realtek Wi-Fi 7, Bluetooth 5.4, 2.5GbE LAN
- PCIe 5.0 x16 for graphics, multiple M.2 slots, SATA 6Gb/s and RAID support
- USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0/1.1 ports
- Hardware monitoring for voltage, temperature, fan speed and water-cooling flow
Expansion and Storage Flexibility
Four M.2 connectors (including CPU-integrated slots) and four SATA 6Gb/s ports enable fast NVMe SSDs and legacy storage, with RAID 0/1/5/10 options.
Robust Monitoring & Connectivity
Includes Q-Flash Plus, GIGABYTE Control Center (GCC), and comprehensive fan headers with addressable RGB for custom builds.
Proudly sold by the Ringwood Digital Store.
Additional information
| Weight | 1.2 kg |
|---|---|
| Dimensions | 24.4 × 30.5 × 9.6 cm |
| CPU | AMD Socket AM5, support for:, AMD Ryzen 9000 Series Processors/, AMD Ryzen 8000 Series Processors/, AMD Ryzen 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules., 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modules, (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon Graphics support:, – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz, * Support for DisplayPort 1.4 version and HDR., – 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz, * Support for HDMI 1.4 version, (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings., Support for S/PDIF Out |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek Wi-Fi 7 RTL8922AE, – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, – BLUETOOTH 5.4, – Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.), * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.), ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot., Chipset:, – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:, AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:, AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, * RAID 5 is only available on AMD Ryzen 9000 Series Processors., RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU:, – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support, – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, CPU+USB 2.0 Hub:, – 4 x USB 2.0/1.1 ports on the back panel, Chipset:, – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header, – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header), – 4 x USB 2.0/1.1 ports available through the internal USB headers, Chipset+USB 3.2 Gen 1 Hub:, – 4 x USB 3.2 Gen 1 ports on the back panel |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2×2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x HDMI port, 1 x power button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper, * Actual support may vary by CPU. |

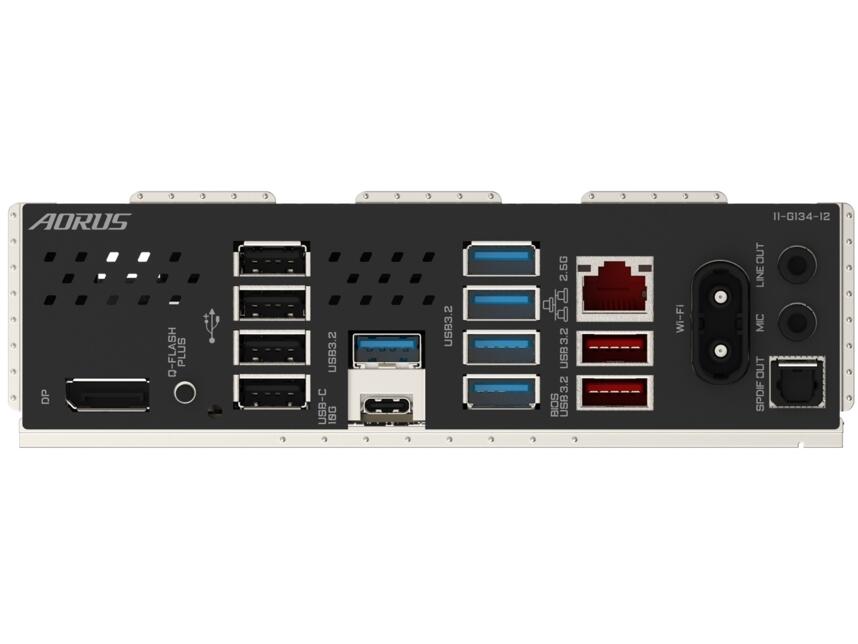

| Back Panel Connectors | 1 x DisplayPort, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1 ports, 1 x USB Type-C port, with USB 3.2 Gen 2 support, 5 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 2 x USB 3.2 Gen 2 Type-A ports (red), 2 x antenna connectors (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out connector, * Actual support may vary by CPU. |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control, * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. |
| BIOS | 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor , 30.5cm x 24.4cm |
