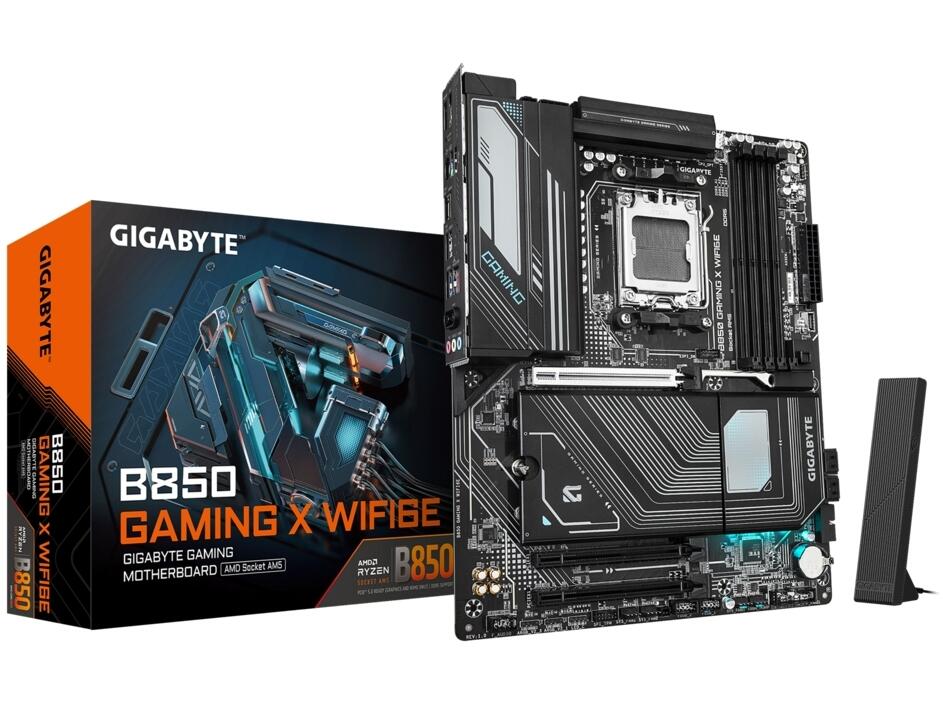

Gigabyte B850 Gaming X WiFi6E AMD AM5

Description

B850 Gaming with 2.5GbE, Wi-Fi 6E, and USB Upgrade

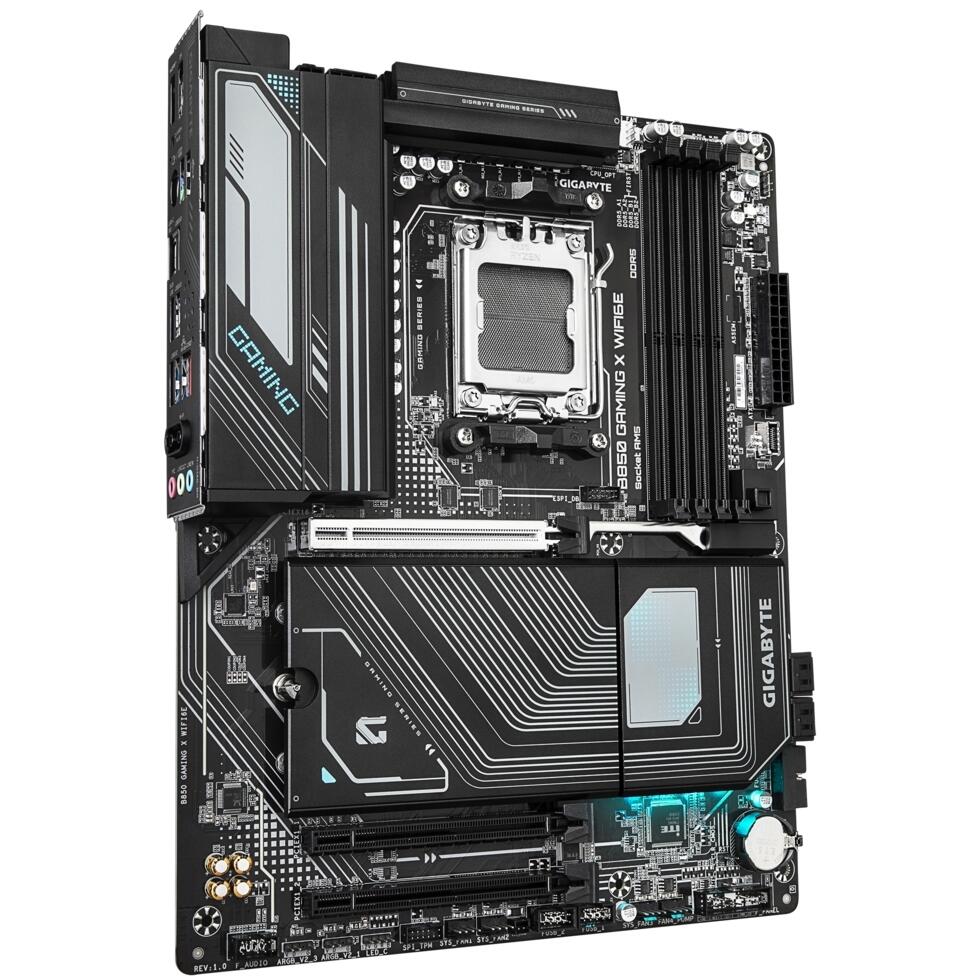

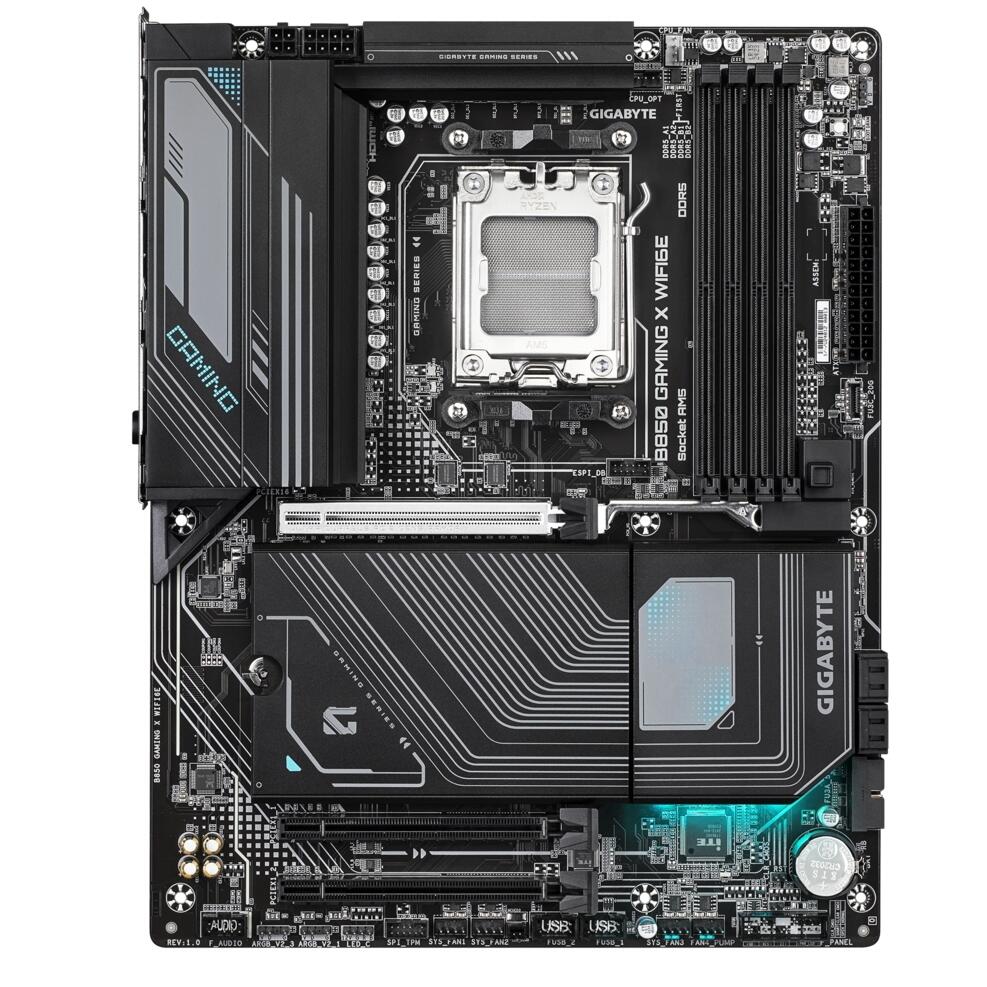

The B850 Gaming X WiFi6E is a meaningful step above the B850 Gaming WiFi6, addressing its three most notable limitations in one move: upgrading from 1GbE to Realtek 2.5GbE LAN, adding Wi-Fi 6E tri-band support with the 6 GHz band, and significantly improving USB connectivity with a rear Gen2 Type-C (10 Gbps) and a front USB Gen2x2 Type-C header (20 Gbps). The VRM and PCB specification remains the same 6+2+2 digital phase design on a 6-layer, mid-loss PCB with VRM Thermal Armor Advanced — suited to mainstream Ryzen builds and moderate overclocking within its thermal limits. Six fan headers, EZ-Latch Plus on the primary PCIe x16 slot, WIFI EZ-Plug for easy antenna installation, dual BIOS, and Q-Flash Plus all carry over from the broader Gaming series formula, making this the most complete value-positioned B850 ATX build in Gigabyte’s range.

⚠️ CPU overclocking is supported on B850, but the 6+2+2 VRM is best suited to 65W TDP processors for sustained workloads. 105W CPUs run at stock without issue, but sustained all-core overclocking on high-TDP Ryzen 9 chips is outside the comfort zone of this power stage. The B850 Eagle WiFi6E is the step up for heavier OC use.

Memory and Storage

Four DDR5 DIMM slots support dual-channel operation up to 256 GB, with AMD EXPO and XMP profiles reaching DDR5-8200 (OC). M2A_CPU is CPU-connected and runs at PCIe 5.0 x4 (128 Gb/s) with Ryzen 7000/9000, supporting 22110 and 2280 form factors, with M.2 Thermal Guard heatsink. M2B_CPU is CPU-connected at PCIe 4.0 x4 (64 Gb/s) with Ryzen 7000/9000, supporting 22110 and 2280, and drops to PCIe 4.0 x2 with Ryzen 8000 Phoenix 2. M2C_SB is chipset-connected at PCIe 4.0 x2 (32 Gb/s), supporting 22110 and 2280. All three M.2 slots carry M.2 Thermal Guard heatsinks with 5 W/mk thermal pads. Four SATA 6Gb/s ports handle additional storage, with RAID 0/1/5/10 for NVMe (RAID 5 on Ryzen 9000 only) and RAID 0/1/10 for SATA.

⚠️ M2A_CPU drops from PCIe 5.0 x4 to PCIe 4.0 x4 with all Ryzen 8000 variants. M2B_CPU drops to PCIe 4.0 x2 with Ryzen 8000 Phoenix 2. Full Gen5 M.2 speeds require Ryzen 7000 or 9000.

⚠️ M2C_SB (chipset, PCIe 4.0 x2 at 32 Gb/s) is best suited to secondary NVMe storage rather than a primary high-performance drive.

Connectivity and I/O

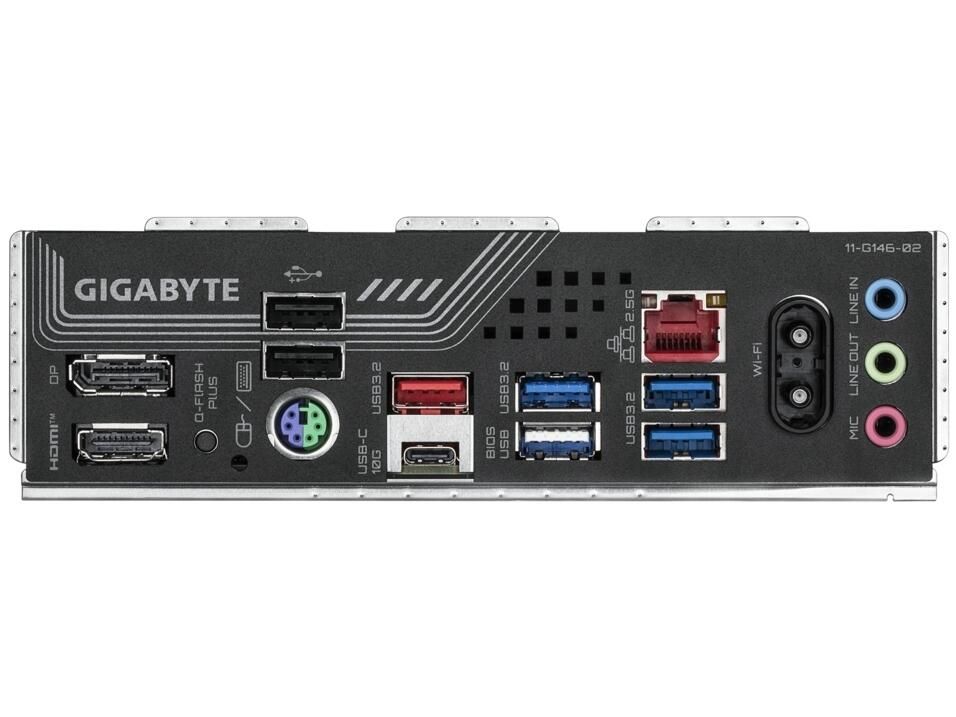

Rear I/O provides nine USB ports: one USB Type-C Gen2 (10 Gbps, CPU), one USB Gen2 Type-A (10 Gbps, red, CPU), three USB Gen1 Type-A (5 Gbps, chipset — 1 on rear, 2 via front header), and three USB 2.0 (CPU+hub rear). A front panel USB Gen2x2 Type-C header (20 Gbps) and a Gen1 header (2 ports) cover modern case panels, alongside two USB 2.0 headers (4 ports). DisplayPort 1.4 (4K 144Hz) and HDMI 2.1 (4K 60Hz) serve iGPU-equipped processors. Realtek 2.5GbE handles wired networking. Wi-Fi 6E (Realtek RTL8852CE, 802.11ax, 2.4/5/6 GHz, 160 MHz) and Bluetooth 5.3 are onboard with WIFI EZ-Plug antenna connectors. Fan headers total six: CPU_FAN, CPU_OPT/pump, three system fan headers, and one system fan/pump header, all 4-pin PWM/DC with Smart Fan 6 and FAN STOP. RGB Fusion 2.0 is supported via three Addressable Gen2 (ARGB) headers and one standard RGB LED header.

⚠️ The rear USB-C is Gen2 (10 Gbps) — faster than the Gen1 Type-C found on the B850 Gaming WiFi6 and B850 Eagle WiFi6E rear panels. The front Gen2x2 Type-C header (20 Gbps) is a notable inclusion at this price point, shared only with the higher-tier Eagle Ice and Aorus Elite boards in this range.

⚠️ No debug LEDs, no Multi-Key button, and no onboard reset button are present. For those features, step up to the B850 Eagle WiFi6E or Eagle Ice.

⚠️ Integrated display output (HDMI/DisplayPort) requires a Ryzen processor with integrated Radeon graphics. Non-G Ryzen 7000/9000 CPUs require a discrete GPU.

Key Highlights

• AMD B850 chipset, Socket AM5 — CPU overclocking supported
• Supports Ryzen 7000, 8000, and 9000 Series
• ATX form factor — 305 mm × 244 mm
• 6+2+2 phase digital VRM, VRM Thermal Armor Advanced
• 6-layer, mid-loss PCB, premium chokes and capacitors
• 8-pin + 4-pin ATX12V CPU power connectors
• 4× DDR5 DIMM slots, dual-channel, up to 256 GB, DDR5-8200 (OC)
• AMD EXPO and XMP memory profile support
• 1× M.2 PCIe 5.0 x4 (CPU, 128 Gb/s, 22110/2280, Thermal Guard) — M2A_CPU
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, 22110/2280, Thermal Guard) — M2B_CPU (x2 with Ryzen 8000 Phoenix 2)
• 1× M.2 PCIe 4.0 x2 (chipset, 32 Gb/s, 22110/2280, Thermal Guard) — M2C_SB
• 4× SATA 6Gb/s ports
• RAID 0/1/5/10 NVMe (RAID 5 on Ryzen 9000 only) / 0/1/10 SATA
• 1× PCIe 5.0 x16 (primary GPU, EZ-Latch Plus — Ryzen 7000/9000) / PCIe 4.0 x8/x4 (Ryzen 8000)
• 2× PCIe 3.0 x1 (chipset)
• DisplayPort 1.4 (4K 144Hz) + HDMI 2.1 (4K 60Hz) — rear (iGPU only)
• Realtek 2.5GbE LAN
• Wi-Fi 6E (Realtek RTL8852CE, 802.11ax, 2.4/5/6 GHz, 160 MHz) + Bluetooth 5.3
• 9× rear USB: Type-C Gen2 (10 Gbps) + Gen2 Type-A (10 Gbps) + 3× Gen1 Type-A (5 Gbps) + 3× USB 2.0
• PS/2 keyboard/mouse combo port — rear
• Front USB Gen2x2 Type-C header (20 Gbps) + Gen1 header (2 ports) + 2× USB 2.0 headers (4 ports)
• 1× CPU fan + 1× CPU fan/pump + 3× system fan + 1× system fan/pump headers — Smart Fan 6, FAN STOP
• 3× Addressable Gen2 (ARGB) headers + 1× RGB LED header — RGB Fusion 2.0
• EZ-Latch Plus on PCIe x16 slot
• WIFI EZ-Plug, directional high-gain antenna
• Dual BIOS + Q-Flash Plus (BIOS update without CPU/RAM)
• SPI TPM header
• Realtek ALC897 HD Audio, high-end audio capacitors
• No debug LEDs, no Multi-Key button, no onboard reset button
