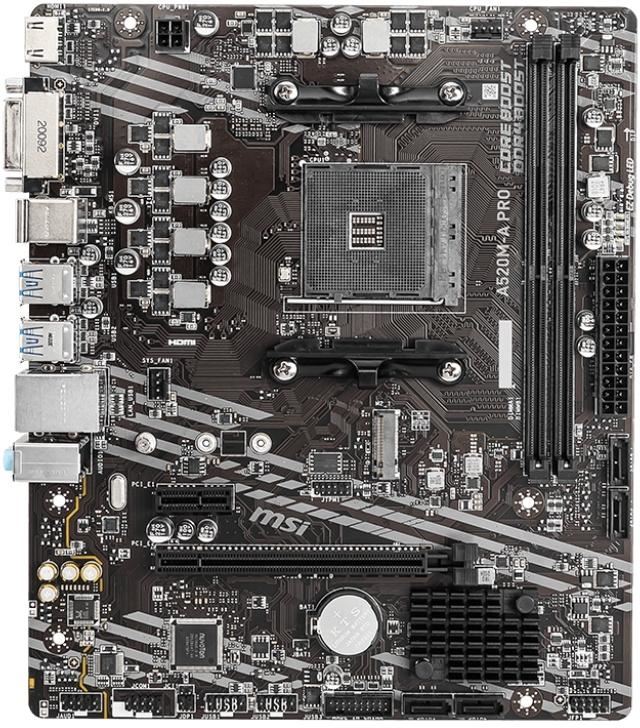

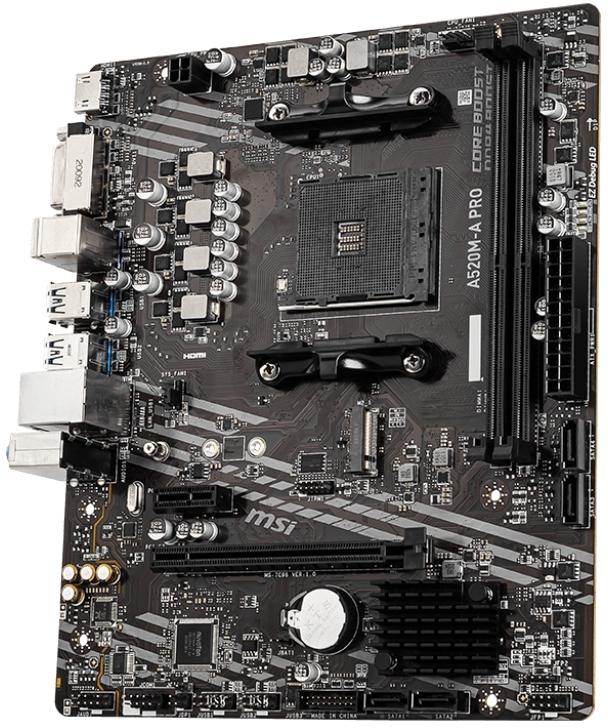

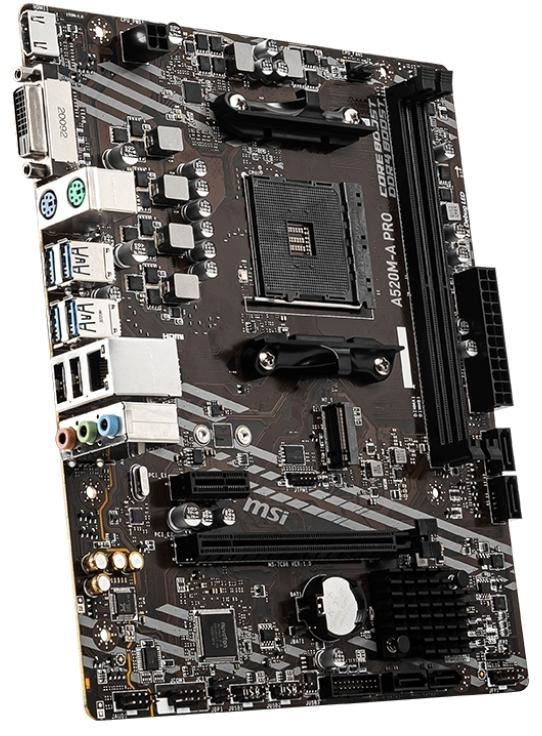

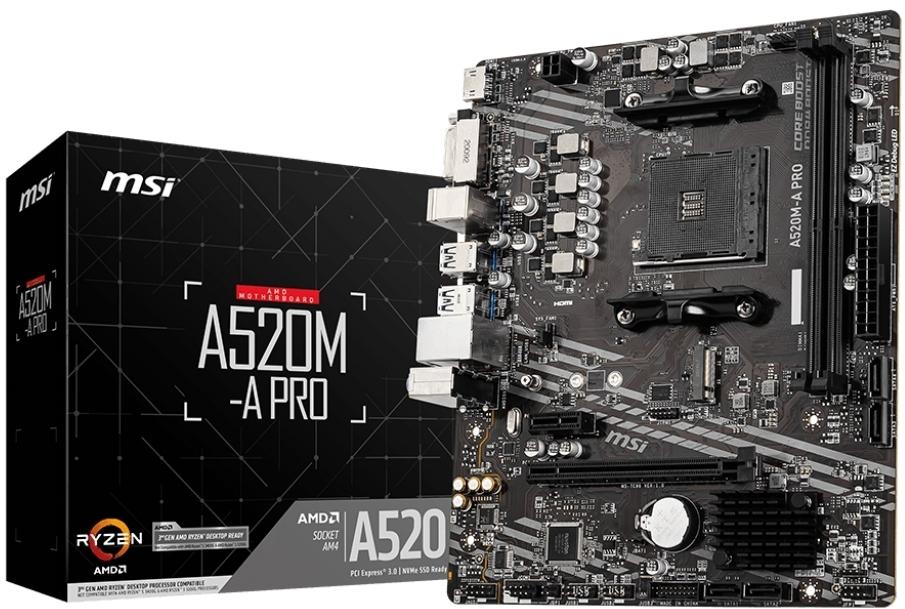

MSI A520M-A Pro (AMD AM4) Motherboard
R1,315.00 inc. VAT
The MSI A520M-A Pro is a Micro-ATX motherboard built on the AMD A520 chipset for Socket AM4, supporting AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors. It offers dual DDR4 slots (up to 64 GB), a Turbo M.2 slot with M.2 Shield Frozr thermal cover, and both HDMI and DVI-D display outputs — a dependable entry-level board for budget office builds and APU-based systems.
In stock
Description
Reliable AM4 Platform for Everyday Builds
The MSI A520M-A Pro is a straightforward, well-built Micro-ATX board designed for businesses and home users who need a stable AMD Ryzen platform without unnecessary extras. The A520 chipset and Socket AM4 combination covers Ryzen 3000, 4000 G-Series, and 5000 Series processors, making it easy to source compatible CPUs at a range of price points. MSI’s PRO series focuses on build quality and longevity over flashy features — a sensible fit for office workstations, point-of-sale machines, and light productivity builds.
Memory and Storage
Two DDR4 DIMM slots accommodate up to 64 GB of dual-channel memory, with native DDR4-3200 support and A-XMP profiles available for higher-speed kits. The single M.2 slot (PCIe 3.0) is fitted with MSI’s M.2 Shield Frozr heatsink to keep NVMe drives cool under sustained read/write loads. Four SATA III ports provide ample room for additional HDDs, SSDs, or optical drives.
Connectivity and Display

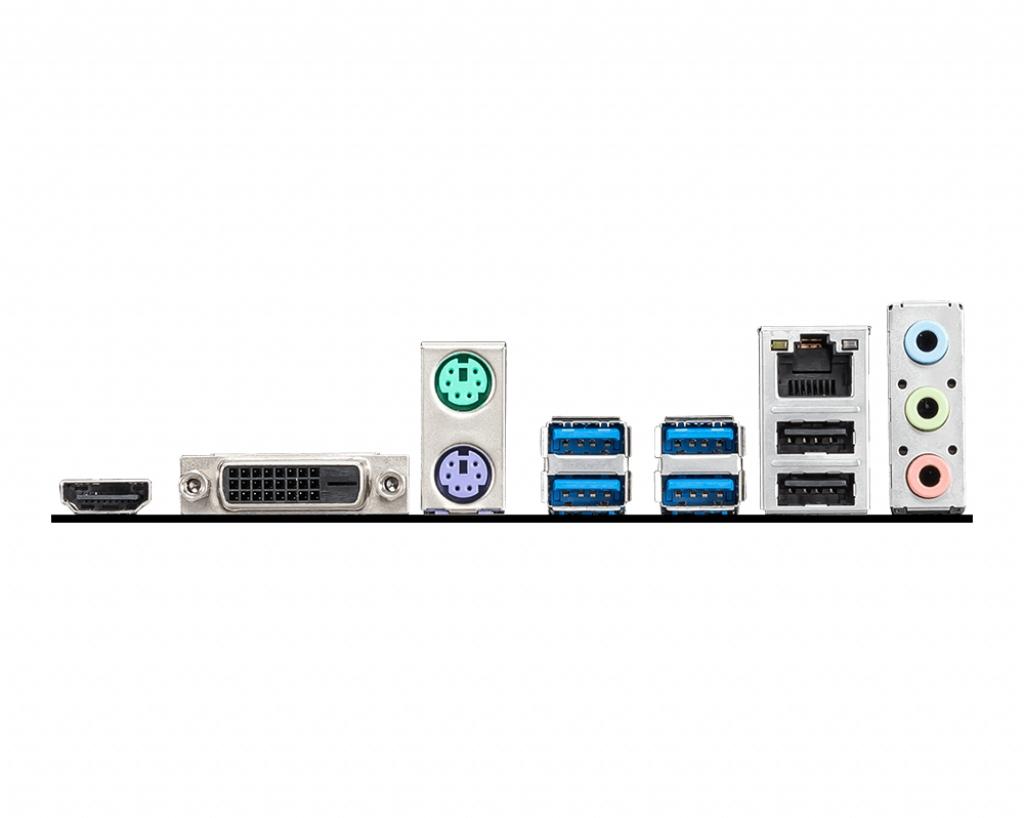

Where the A520M Pro offers a single HDMI output, the A520M-A Pro adds a DVI-D port alongside HDMI 2.1 (up to 4K@60Hz), giving it slightly more flexibility for multi-monitor setups in office environments using older displays. The rear I/O includes four USB 3.2 Gen 1 Type-A and two USB 2.0 ports, a Gigabit Ethernet port, and three 3.5mm audio jacks backed by a Realtek 7.1 codec with Audio Boost.
⚠️ The A520 chipset does not support CPU overclocking. If overclocking is a requirement, look at a B550 or X570 board instead. A-XMP memory overclocking is still supported.
⚠️ Verify your Ryzen 5000 Series CPU against MSI’s AM4 compatibility list — early A520 boards may need a BIOS update before 5000-series CPUs are recognised.
⚠️ With only two DIMM slots, your maximum RAM configuration is two sticks. Plan your capacity upfront rather than expanding later.
Key Highlights
- AMD A520 chipset, Socket AM4
- Supports Ryzen 3000, 4000 G-Series, and 5000 / 5000 G-Series processors
- 2x DDR4 DIMM slots, up to 64 GB, DDR4-3200 native + A-XMP
- 1x M.2 (PCIe 3.0) with M.2 Shield Frozr thermal cover
- 4x SATA III ports
- HDMI 2.1 (up to 4K@60Hz) + DVI-D display outputs
- 4x USB 3.2 Gen 1 + 2x USB 2.0 rear ports
- Realtek 7.1 Audio Boost
- Gigabit Ethernet
- Micro-ATX form factor
Proudly sold by the Ringwood Digital Store.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 23.6 × 1 cm |
| Model | A520M-A PRO |
