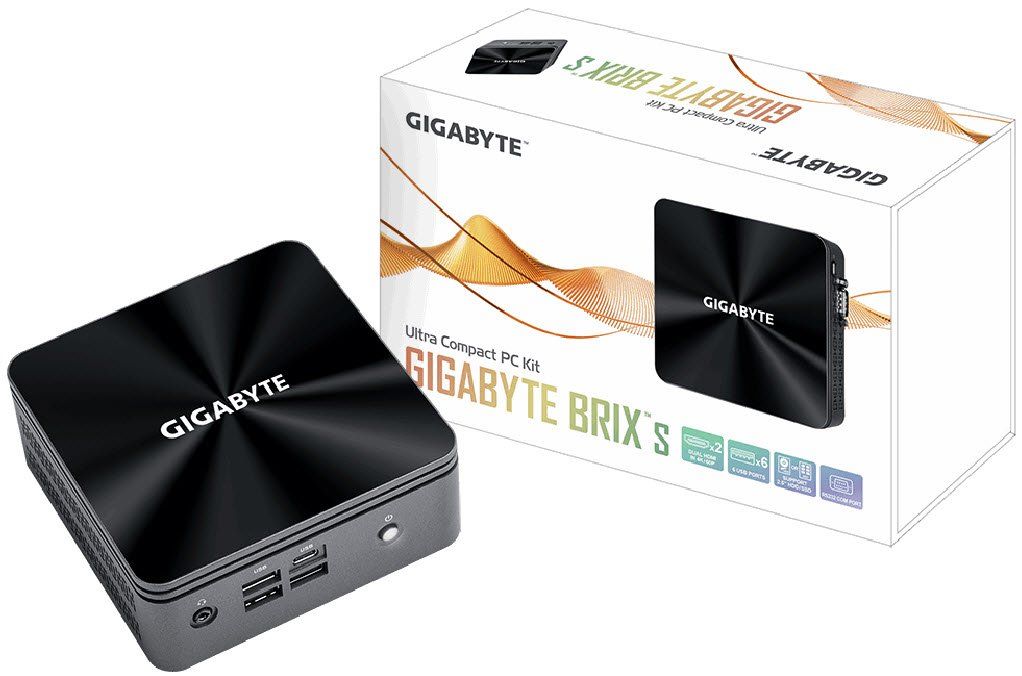

Gigabyte Brix™ S (Core i7-10710) Compact PC

Description

Six-Core Comet Lake Performance, Dual Storage, Six USB Ports

The Gigabyte BRIX GB-BRi7H-10710 is the tall-chassis variant of Gigabyte’s ultra-compact BRIX platform, distinguishing itself from the slim version by adding a 2.5″ SATA drive bay alongside the M.2 slot for dual internal storage — a meaningful practical advantage for builds combining a fast NVMe SSD with a high-capacity HDD or SATA SSD. The Intel Core i7-10710U brings six Comet Lake cores with Hyper-Threading (12 threads total) to a 15W TDP platform, delivering notably more multi-threaded performance than quad-core alternatives at the same power envelope — a useful advantage for running multiple applications simultaneously, light virtualisation, or video conferencing with background tasks.

The six-port USB stack is a standout for a Mini PC at this size: one USB 3.2 Gen2 Type-C (10 Gbps) and five USB 3.2 Gen2 Type-A (10 Gbps) ports provide the kind of peripheral connectivity more commonly associated with full-tower systems. A serial port header covers legacy industrial and point-of-sale peripherals, optical S/PDIF handles audio routing to AV receivers, and the consumer IR sensor enables remote control input for HTPC and media deployments. Dual VESA mount plates (75×75mm and 100×100mm) are included for monitor-back or wall installation.

⚠️ No RAM or SSD is included — DDR4 SODIMMs (DDR4-2400/2666, up to 64 GB across 2 slots) and at least one M.2 NVMe SSD or 2.5″ drive must be purchased separately before the system is operational.

⚠️ The Intel Core i7-10710U (10th Gen Comet Lake) is not on Microsoft’s Windows 11 supported CPU list. This system is recommended for use with Windows 10 (reached end of support October 2025) or a Linux distribution. Windows 11 cannot be officially installed on this platform.

⚠️ Wireless is Wireless-AC (Wi-Fi 5, Intel AC 3168, 433 Mbps, dual-band, 2.4/5 GHz only) — not Wi-Fi 6 or 6E. For Wi-Fi 6 capability a USB or PCIe Wi-Fi adapter is required.

⚠️ LAN is Gigabit Ethernet only — no 2.5 GbE.

⚠️ Display outputs are 2× HDMI only — no DisplayPort and no USB-C video output. Monitors requiring DisplayPort input will need a DisplayPort-to-HDMI adapter or a separate display.

Technical Specifications

The i7-10710U uses Intel’s 14nm Comet Lake architecture with 6 cores, 12 threads, 1.1 GHz base, 4.7 GHz max turbo, and 12 MB L2 cache at 15W TDP. Intel UHD Graphics 620 (18 EU, 300–1150 MHz). Memory: 2× DDR4-2400/2666 SODIMM, max 64 GB. Storage: 1× M.2 2280 PCIe Gen3 x4 / SATA / Optane + 1× 2.5″ SATA 6G bay. Display: 2× HDMI (4K). USB: 1× USB 3.2 Gen2 Type-C (10 Gbps) + 5× USB 3.2 Gen2 Type-A (10 Gbps). Networking: Intel I219V Gigabit Ethernet + Intel Wireless-AC 3168 (Wi-Fi 5, 433 Mbps, dual-band) + Bluetooth. Audio: 7.1 via HDMI + 3.5mm combo jack + optical S/PDIF. Additional: serial port, consumer IR sensor, 75×75 + 100×100mm VESA mount kit. External 19V/65W AC adapter. Dimensions: 120 × 120 × 47 mm.

Key Highlights

• Intel Core i7-10710U — Comet Lake 10th Gen, 6 cores / 12 threads, 1.1–4.7 GHz, 15W TDP, 12 MB L2
• Intel UHD Graphics 620 — 18 EU, 300/1150 MHz
• 2× DDR4-2400/2666 SODIMM — up to 64 GB — RAM not included
• 1× M.2 2280 PCIe Gen3 x4 / SATA / Optane — SSD not included
• 1× 2.5″ SATA 6G bay — secondary HDD/SSD drive bay (tall chassis)
• 2× HDMI output — dual 4K display support — no DisplayPort, no USB-C video
• Intel I219V Gigabit Ethernet — not 2.5 GbE
• Intel Wireless-AC 3168 — Wi-Fi 5, 433 Mbps, dual-band — not Wi-Fi 6
• Bluetooth (via AC 3168)
• 1× USB 3.2 Gen2 Type-C (10 Gbps)
• 5× USB 3.2 Gen2 Type-A (10 Gbps)
• Serial port (RS-232)
• 3.5mm audio combo jack + 7.1 audio via HDMI + optical S/PDIF
• Consumer IR sensor (remote control support)
• 75×75mm + 100×100mm VESA mount kit included
• External 19V/65W AC adapter
• 120 × 120 × 47 mm — Black, tall chassis
• Not Windows 11 compatible — 10th Gen Comet Lake not on supported CPU list
• Recommended OS: Windows 10 or Linux
