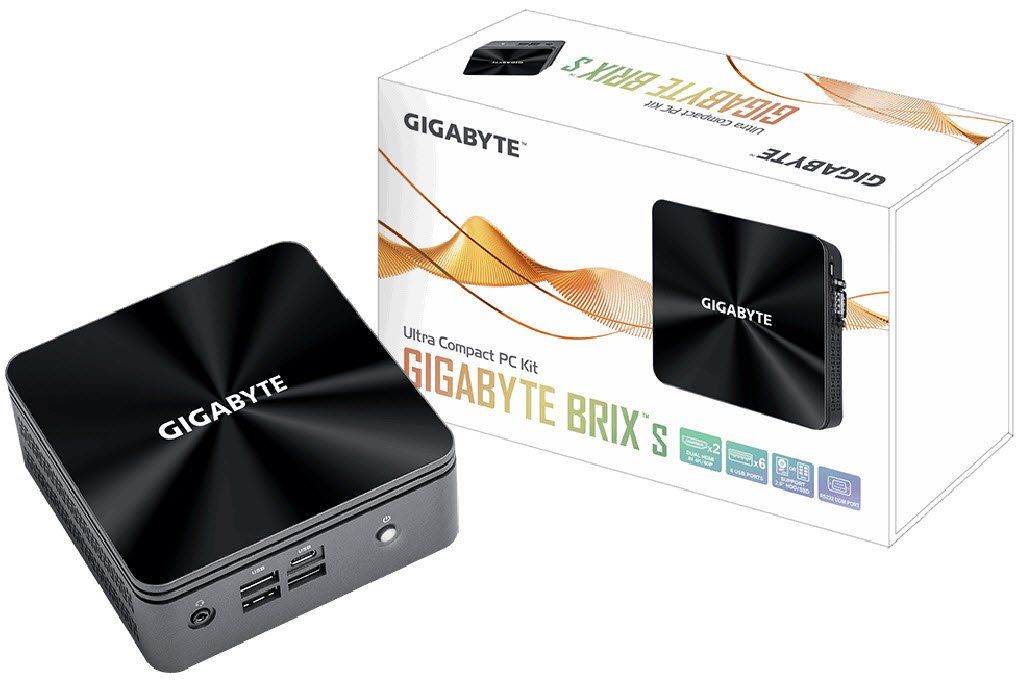

Gigabyte Brix™ S (Core i7-10510) Compact PC

Description

Quad-Core Comet Lake in the Tall BRIX Chassis

The Gigabyte BRIX GB-BRi7H-10510 is the quad-core sibling of the GB-BRi7H-10710, sharing the same tall BRIX chassis, dual-storage layout, and connectivity stack while pairing those platform advantages with the Intel Core i7-10510U — a four-core, eight-thread Comet Lake processor with a higher single-core boost (4.9 GHz vs the six-core 10710U’s 4.7 GHz). For workloads that are predominantly single-threaded or lightly multi-threaded — everyday office productivity, web browsing, document processing, video conferencing, and media playback — the i7-10510U’s higher boost frequency gives it a responsiveness edge over the 10710U in those specific scenarios, while the 10710U’s additional two cores and four threads pull ahead in sustained heavy multi-threaded workloads.

The tall chassis adds a 2.5″ SATA 6G bay for a secondary HDD or SATA SSD alongside the M.2 NVMe primary slot — a practical dual-storage configuration for builds requiring both fast NVMe boot storage and high-capacity mechanical or SATA storage. The six-port USB stack (one Type-C Gen2 + five Type-A Gen2, all at 10 Gbps), serial port, optical S/PDIF, consumer IR sensor, and dual VESA mount plates carry over identically from the 10710H variant.

⚠️ No RAM or SSD is included — DDR4 SODIMMs (DDR4-2400/2666, up to 64 GB across 2 slots) and at least one storage drive must be purchased separately before the system can be used.

⚠️ The Intel Core i7-10510U (10th Gen Comet Lake) is not on Microsoft’s Windows 11 supported CPU list. This system is recommended for use with Windows 10 (reached end of support October 2025) or a Linux distribution.

⚠️ Wireless is Wireless-AC (Wi-Fi 5, Intel AC 3168, 433 Mbps, dual-band, 2.4/5 GHz only) — not Wi-Fi 6 or 6E.

⚠️ LAN is Gigabit Ethernet only — no 2.5 GbE. Display outputs are 2× HDMI only — no DisplayPort, no USB-C video output.

💡 The i7-10510U’s 4.9 GHz single-core boost is marginally higher than the i7-10710U’s 4.7 GHz — for single-threaded responsiveness the 10510U has the edge. For sustained multi-core workloads (video encoding, data processing, virtualisation), the 10710U’s six cores are the better choice.

Technical Specifications

The i7-10510U uses Intel’s 14nm Comet Lake architecture with 4 cores, 8 threads, 1.8 GHz base, 4.9 GHz max turbo, and 8 MB L2 cache at 15W TDP. Intel UHD Graphics 620 (18 EU, 300–1150 MHz). Memory: 2× DDR4-2400/2666 SODIMM, max 64 GB. Storage: 1× M.2 2280 PCIe Gen3 x4 / SATA / Optane + 1× 2.5″ SATA 6G bay. Display: 2× HDMI (4K). USB: 1× USB 3.2 Gen2 Type-C (10 Gbps) + 5× USB 3.2 Gen2 Type-A (10 Gbps). Networking: Intel I219V Gigabit Ethernet + Intel Wireless-AC 3168 (Wi-Fi 5, 433 Mbps, dual-band) + Bluetooth. Audio: 7.1 via HDMI + 3.5mm combo jack + optical S/PDIF. Additional: serial port, consumer IR sensor, 75×75 + 100×100mm VESA mount kit. External 19V/65W AC adapter. Dimensions: 120 × 120 × 47 mm.

Key Highlights

• Intel Core i7-10510U — Comet Lake 10th Gen, 4 cores / 8 threads, 1.8–4.9 GHz, 15W TDP, 8 MB L2
• Intel UHD Graphics 620 — 18 EU, 300/1150 MHz
• Higher single-core boost (4.9 GHz) vs the six-core i7-10710U (4.7 GHz)
• 2× DDR4-2400/2666 SODIMM — up to 64 GB — RAM not included
• 1× M.2 2280 PCIe Gen3 x4 / SATA / Optane — SSD not included
• 1× 2.5″ SATA 6G bay — secondary HDD/SSD drive bay (tall chassis)
• 2× HDMI output — dual 4K display support — no DisplayPort, no USB-C video
• Intel I219V Gigabit Ethernet — not 2.5 GbE
• Intel Wireless-AC 3168 — Wi-Fi 5, 433 Mbps, dual-band — not Wi-Fi 6
• Bluetooth (via AC 3168)
• 1× USB 3.2 Gen2 Type-C (10 Gbps)
• 5× USB 3.2 Gen2 Type-A (10 Gbps)
• Serial port (RS-232)
• 3.5mm audio combo jack + 7.1 audio via HDMI + optical S/PDIF
• Consumer IR sensor (remote control support)
• 75×75mm + 100×100mm VESA mount kit included
• External 19V/65W AC adapter
• 120 × 120 × 47 mm — Black, tall chassis
• Not Windows 11 compatible — 10th Gen Comet Lake not on supported CPU list
• Recommended OS: Windows 10 or Linux
