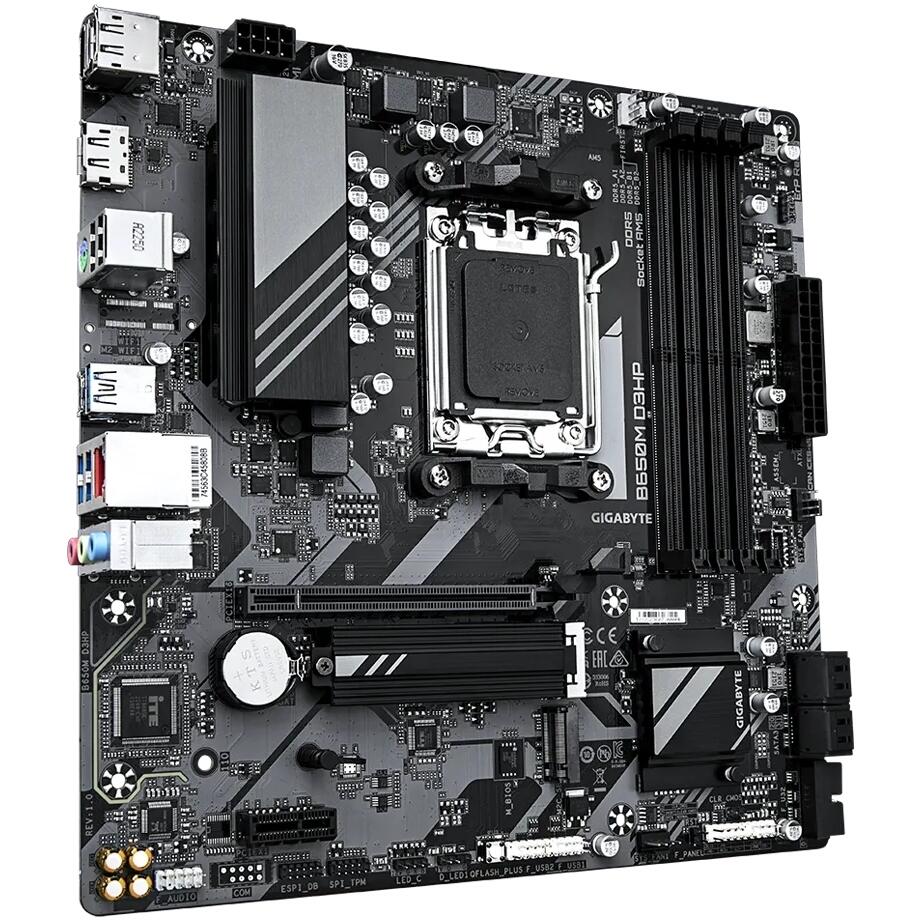

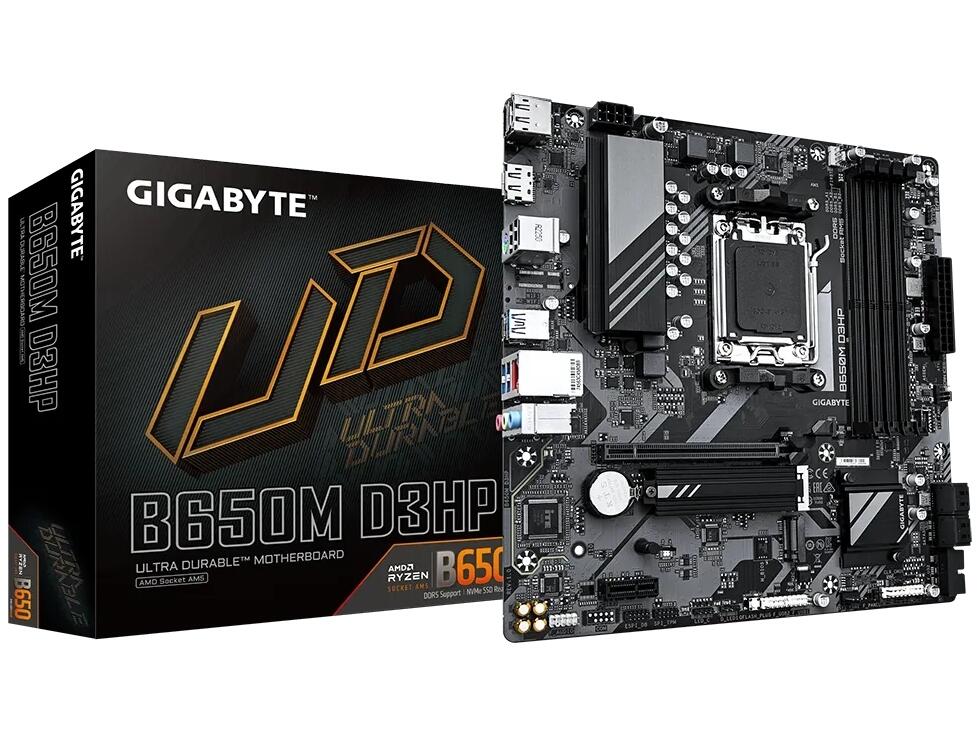

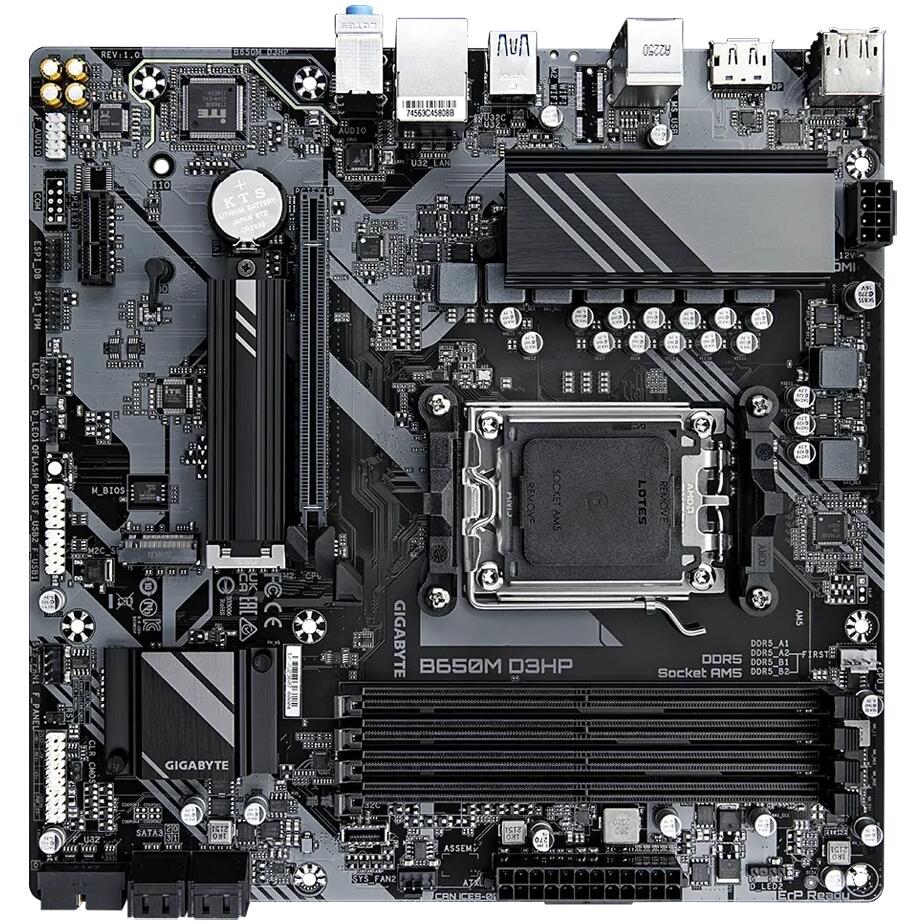

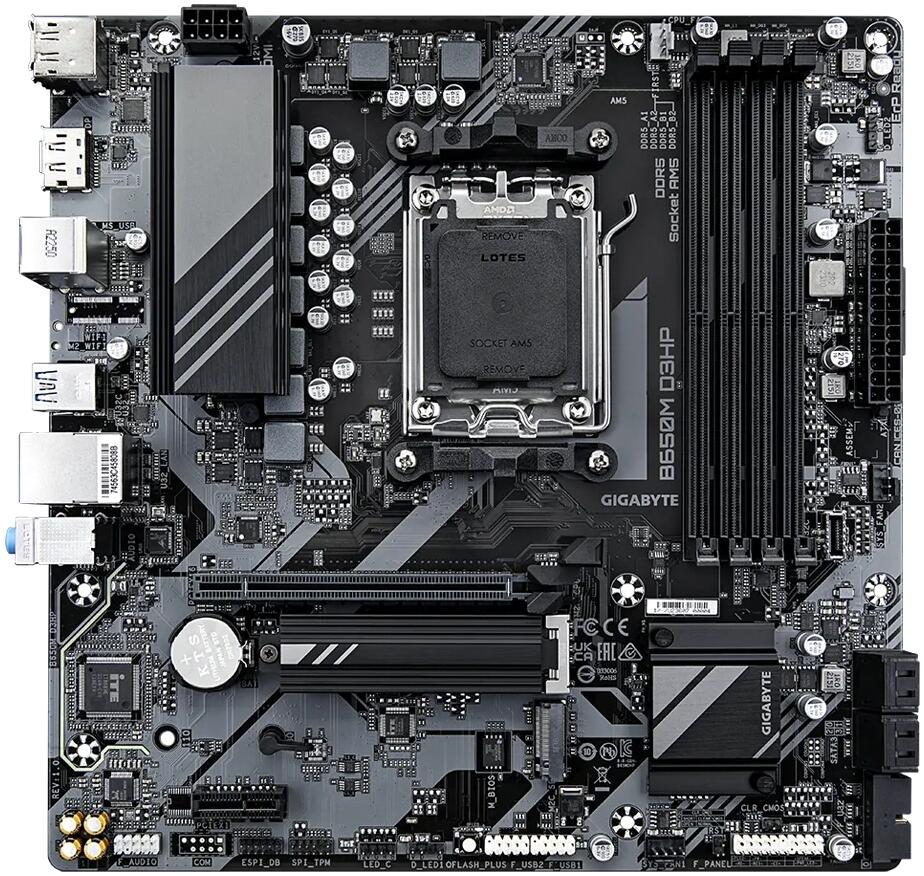

Gigabyte B650M D3HP AMD AM5

Description

B650 Essentials Without the Premium Price

The B650M D3HP is Gigabyte’s workhorse B650 Micro-ATX offering, designed for builders who want the AM5 platform with CPU overclocking capability and 2.5GbE networking without paying for AORUS-tier VRM or connectivity extras. The 5+2+2 phase digital VRM is honest entry-level fare — capable and stable for mainstream Ryzen builds within its power delivery limits — while the dual DisplayPort 1.4 plus HDMI 2.1 rear output configuration allows triple-display iGPU setups, which is a notably practical inclusion for office and workstation builds using a Ryzen processor with integrated graphics. EZ-Latch on the primary PCIe x16 slot makes graphics card swaps tool-free, and Q-Flash Plus allows BIOS updates without any CPU or RAM installed — both practical features at this price point.

⚠️ B650 supports CPU overclocking, but the 5+2+2 VRM is best matched to 65W TDP processors under sustained load. 105W CPUs run at stock without issue. Sustained all-core overclocking or high-TDP Ryzen 9 builds should be directed to a board with a stronger VRM such as the B650M Aorus Elite.

Memory and Storage

Four DDR5 DIMM slots support dual-channel operation up to 256 GB, with AMD EXPO and XMP profiles reaching DDR5-8000 (OC). Two M.2 slots are provided: M2A_CPU is CPU-connected and runs at PCIe 4.0 x4 (64 Gb/s) across all supported CPU generations, supporting the extended 2580 form factor as well as standard 2280. M2C_SB is chipset-connected at PCIe 4.0 x4/x2 (32–64 Gb/s) and supports 22110 and 2280. Four SATA 6Gb/s ports round out storage, with RAID 0/1/10 supported for both SATA and NVMe.

⚠️ Neither M.2 slot on this board reaches PCIe 5.0 speeds — the fastest M.2 tier is PCIe 4.0 x4 (64 Gb/s). For PCIe Gen5 M.2 storage, the B650M Aorus Elite or B650 Aorus Elite AX is required.

⚠️ No M.2 heatsinks are included on this board. Thermal pads or aftermarket heatsinks are advisable for sustained NVMe workloads, particularly on M2A_CPU.

Connectivity and I/O

Rear I/O is functional but modest: one USB 3.2 Gen1 Type-C (5 Gbps), three USB 3.2 Gen1 Type-A (5 Gbps), and two USB 2.0 ports — six rear USB ports in total, all limited to Gen1 speed. Front panel connectivity includes a USB 3.2 Gen1 Type-C header and a Gen1 header for two further Type-A ports, plus two USB 2.0 headers covering four additional ports. Dual DisplayPort 1.4 and HDMI 2.1 on the rear support triple simultaneous display output for iGPU-equipped processors. Realtek 2.5GbE LAN handles wired networking. Fan headers consist of one CPU fan and two system fan headers — three total, all 4-pin PWM/DC with Smart Fan 6 control and FAN STOP. RGB is provided via two Addressable Gen2 (ARGB) headers and one standard RGB LED header.

⚠️ No USB 3.2 Gen2 (10 Gbps) ports are present anywhere on this board — the fastest USB speed available is Gen1 at 5 Gbps on both rear and front panel.

⚠️ No onboard Wi-Fi and no M.2 Key E slot for a wireless module. A USB or PCIe adapter is required for wireless connectivity. If Wi-Fi 6E is needed, the B650M D3HP AX is the direct wireless equivalent.

⚠️ Only three fan headers are present. Builds with multiple chassis fans will need a fan splitter or hub.

⚠️ Integrated display output (dual DisplayPort + HDMI) requires a Ryzen processor with integrated Radeon graphics. Non-G Ryzen 7000/9000 CPUs require a discrete GPU.

Key Highlights

• AMD B650 chipset, Socket AM5 — CPU overclocking supported
• Supports Ryzen 7000, 8000, and 9000 Series
• Micro-ATX form factor
• 5+2+2 phase digital VRM
• Single 8-pin ATX12V CPU power connector
• 4× DDR5 DIMM slots, dual-channel, up to 256 GB, DDR5-8000 (OC)
• AMD EXPO and XMP memory profile support
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, up to 2580) — M2A_CPU
• 1× M.2 PCIe 4.0 x4/x2 (chipset, 2280/22110) — M2C_SB
• No M.2 heatsinks included
• 4× SATA 6Gb/s ports
• RAID 0/1/10 for SATA and NVMe
• 1× PCIe 4.0 x16 (EZ-Latch) + 1× PCIe 3.0 x1 (chipset)
• Dual DisplayPort 1.4 + HDMI 2.1 — triple display support (iGPU only)
• Realtek 2.5GbE LAN
• No onboard Wi-Fi — wired-only, no M.2 Key E slot
• 6× rear USB: Gen1 Type-C (5 Gbps) + 3× Gen1 Type-A (5 Gbps) + 2× USB 2.0
• No USB Gen2 (10 Gbps) anywhere on the board
• Front USB 3.2 Gen1 Type-C header + Gen1 header (2 ports) + 2× USB 2.0 headers (4 ports)
• 1× CPU fan + 2× system fan headers — Smart Fan 6, FAN STOP
• 2× Addressable Gen2 (ARGB) headers + 1× RGB LED header — RGB Fusion 2.0
• EZ-Latch on PCIe x16 slot (M.2 slots use conventional screws)
• Q-Flash Plus (BIOS update without CPU/RAM)
• SPI TPM header
• Realtek ALC897 HD Audio
