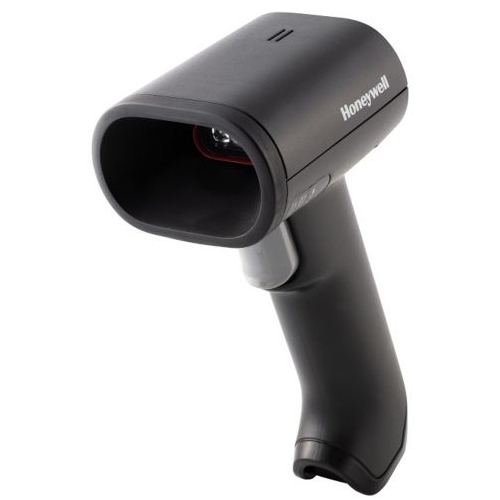

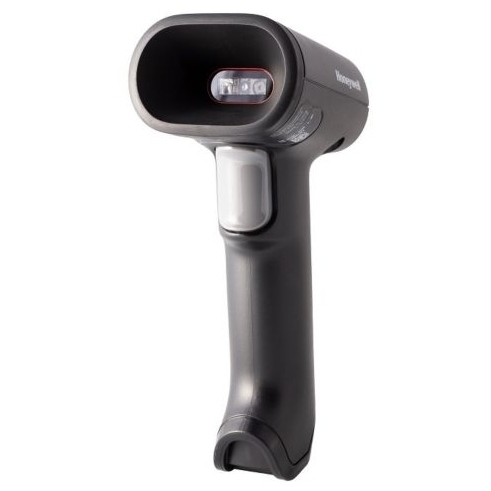

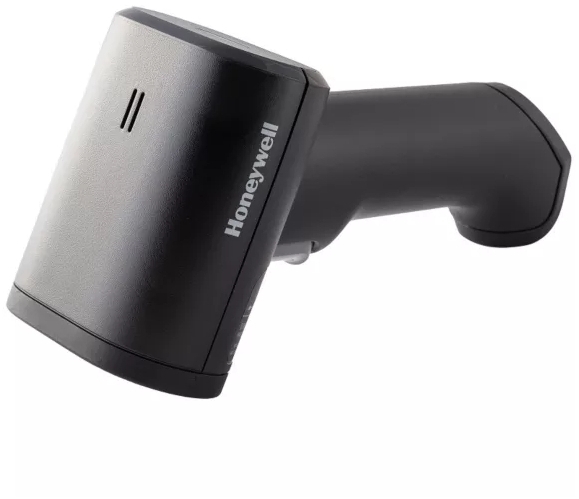

Honeywell HH492 2D Area-Imaging Performance Bluetooth Scanner
R2,719.00 inc. VAT
The Honeywell HH492 is a rugged 2D area-imaging Bluetooth scanner designed for high-volume business environments. It delivers reliable performance with up to 50,000 scans per charge and wireless connectivity via Bluetooth 5. Built to withstand harsh conditions with IP40 protection and a 1.5m drop spec, it’s ideal for retail, manufacturing, and logistics applications.
In stock
Description
Advanced Wireless Connectivity
Stay connected with 2-way Bluetooth 5 communication, enabling seamless data transfer to PCs, tablets, or mobile devices without cables. The scanner pairs effortlessly with HID-compatible systems and supports both USB and wireless modes for versatile deployment.
Exceptional Scanning Performance
Engineered with a 1040 x 720 pixel CMOS area imager, it decodes 1D, 2D, PDF, and DotCode barcodes at speeds up to 25cm/s. A wide scanning range of 5mm to 400mm ensures accurate reading of small and large codes, even at optimal focus.
Robust Performance in Demanding Environments
Durable against drops from 1.5m and dust ingress (IP40 rating), it operates reliably between -20°C and 50°C. The 2730 mAh Li-Ion battery provides extended usage, supporting up to 50,000 scans per charge for uninterrupted productivity.

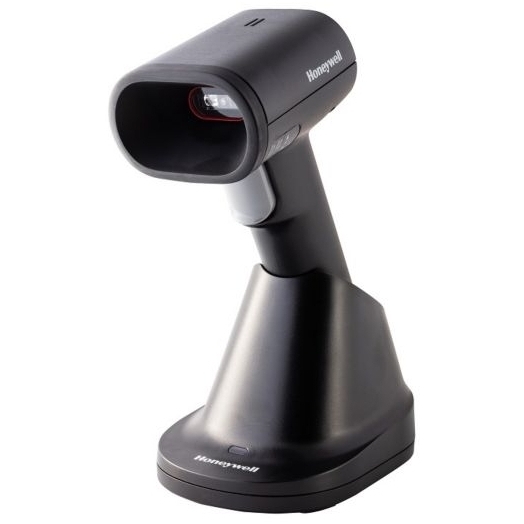

Flexible Integration and Charging
Compatible with USB HID and USB Dongle interfaces, it integrates smoothly with existing POS systems. The included charging base ensures convenient power management, while the compact design (64mm x 166mm x 84mm) fits easily into workflow setups.
- Product Code: HH492-R1-1USB-5
- Scan Pattern: Area Imager CMOS (1040 x 720 pixel array)
- Decode Capabilities: 1D, 2D, PDF, DotCode
- Scanning Range: 5mm to 400mm
- Battery Life: Up to 50,000 scans per charge
- Bluetooth Version: 5
- Durability: 1.5m drop, IP40 protection
- Operating Temperature: -20°C to 50°C
- Interfaces: HID, USB
- Dimensions: 64mm x 166mm x 84mm
Key Highlights
• Wireless Bluetooth 5 connectivity for cable-free operation
• Rugged design with IP40 rating and 1.5m drop resistance
• High-speed 2D scanning for 1D, 2D, PDF, and DotCode formats
• Extended battery life with 50,000 scans per charge
• Operating temperature range from -20°C to 50°C for versatility
Proudly sold by the Ringwood Digital Store.
Additional information
| Dimensions | 13.0 × 16.6 × 8.5 cm |
|---|---|
| Overall Dimensions | Charger/Communication Base: 130 mm x 86 mm x 85 mm (5.1 in x 3.4 in x 3.3 in), Dimensions (L x W x H): 64 mm x 166 mm x 84 mm (2.5 in x 6.5 in x 3.3 in |
| Number of Scans | Up to 50,000 scans per charge |
| Scan Pattern | Area Imager CMOS (1040 x 720 pixel array) |
| Motion Tolerance | 25cm/s (9.8in/s) for 13 mil UPC at optimal focus |
| Decode Capability | 1D, 2D, DotCode, PDF |
| Scanning Range | Max: 400mm for 13 mil UPC, Min: 5mm for 20 mil QR |
| Depth of Field | Up to 400mm for 13 mil UPC |
| Bluetooth Specifications | 5 |
| Bluetooth | Yes |
| Wireless | Yes |
| Engine Type | Area Imager Scanning |
| Host System Interface | HID, USB |
| Aimer Type | Area Imager |
| Battery Types | Li-Ion |
| Storage Temperature Range | Scanner/Communication Base: -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 0% to 95% relative humidity |
| Drop Specifications | Communication Base: 1.0m (3.3ft) concrete floor, Scanner: 1.5m (4.9ft) concrete floor |
| Protection Ratings | IP40 |
| Form Factor | Charger/Communication Base: 130 mm x 86 mm x 85 mm (5.1 in x 3.4 in x 3.3 in), Dimensions (L x W x H): 64 mm x 166 mm x 84 mm (2.5 in x 6.5 in x 3.3 in |
| For Use With | Charge and Communication base, USB Dongle |
| Application | Manufacturing, Retail, T&L |
| Battery Capacity | 2730 mAh |
| Operating Power | 2.5 W (500mA @ 5V USB input), 5W (1000mA @ 5V Adaptor input) |
| Operating Temperature | Communication Base: Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (32°F to 122°F), Scanner: Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: -20°C to 50°C (-4°F to 122°F) |
| Power Connector Type | Charge and Communication base, USB Dongle |
