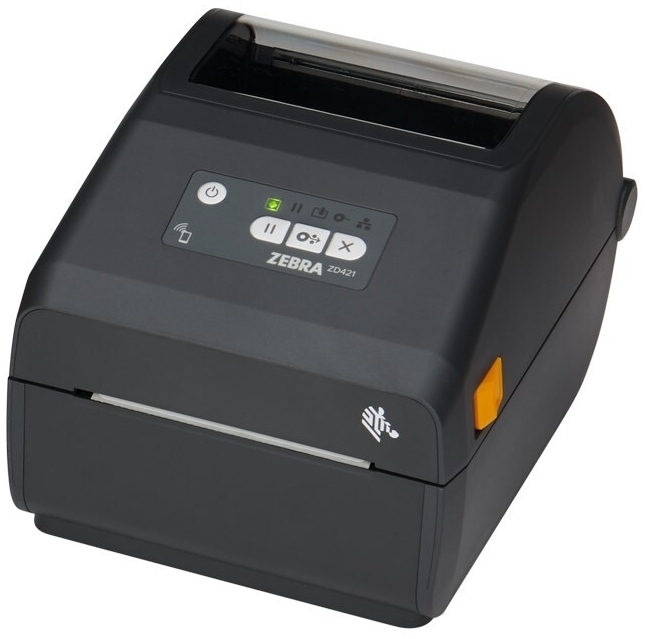

Zebra ZD421-D Direct Thermal USB/Bluetooth Printer
R6,235.00 inc. VAT
The Zebra ZD421-D is a high-performance direct thermal label printer designed for business efficiency. It features seamless USB and Bluetooth connectivity to ensure fast, reliable printing for POS and warehouse environments.
In stock
Description
Seamless Business Connectivity
Equipped with USB and Bluetooth Low Energy (BLE) 5, the ZD421-D integrates effortlessly into your existing workflow. The dedicated mobile app for Android and iOS allows for quick setup and management, reducing downtime for active business environments.
Rapid Thermal Printing
With a print speed of 152 mm/s and a resolution of 203 dpi, this printer delivers crisp, professional labels and receipts. Its direct thermal technology eliminates the need for ink or toner, significantly lowering your ongoing operational costs.
Durable Industrial Design
Built with a dual-wall frame construction and featuring OpenACCESS for easy media loading, the ZD421-D is engineered for longevity. Its ENERGY STAR certification ensures power efficiency without compromising on industrial-grade performance.
Key Highlights
- Print Resolution: 203 dpi
- Print Speed: 152 mm/s
- Connectivity: USB 2.0 and Bluetooth Low Energy 5
- Memory: 512 MB Flash, 256 MB SDRAM
- Max Print Width: 104 mm
- Emulations: ZPL II, EPL 2, XML, PDF Direct
- Media Width: 15 mm to 108 mm
Proudly sold by the Ringwood Digital Store.
Additional information
| Weight | 1.35 kg |
|---|---|
| Dimensions | 17.75 × 22.08 × 15.07 cm |
| Product name | Zebra ZD421d Printer 203dpi |
| Product type | Label printer |
| Print technology | Thermal direct |
| Emulation | EPL, ZPL, EPLII, PDF direct, XML, ZPLII |
| Roll outside diameter | 127 mm |
| Connectors | USB |
| Wireless | Bluetooth |
| RAM | 512 MB |
| Print speed (mm/s) | 152 mm/s |
| Print resolution (max.) | 203 dpi |
| Print width (mm, max.) | 104 mm |
| Label width (max.) | 108 mm |
| Includes | Power cable, Power supply, USB cable |
| Dimensions (W x H x D) | 177.5 x 150.7 x 220.8 mm |
| Standard Features | Print methods: Thermal Transfer or Direct Thermal, ZPL and EPL programming languages, 5 status icon, 3 button user interface, USB 2.0, USB Host, Printer setup mobile app for Android and iOS via BLE, (Bluetooth Low Energy 5) connection*, * BLE is intended for use with Zebra printer setup mobile app only, Real Time Clock (RTC), OpenACCESS for easy media loading, Dual-wall frame construction, ENERGY STAR certified |
| Dimension | Direct Thermal:, 8.69 in. L x 6.98 in. W x 5.93 in. H, 220.8 mm L x 177.5 mm W x 150.7 mm H, Thermal Transfer Roll:, 10.5 in. L x 8.0 in. W x 7.44 in. H, 267 mm L x 202 mm W x 189 mm H, Thermal Transfer Cartridge:, 10.0 in. L x 8.0 in. W x 7.0 in. H, 254 mm L x 202 mm W x 177 mm H |
| Weight | Direct Thermal: 2.98 lbs./1.35 kg, Thermal Transfer Roll: 4.52 lbs./2.05 kg, Thermal Transfer Cartridge: 5.0 lbs./2.3 kg |
| Operating System | Link-OS |
| Resolution | 203 dpi/8 dots per mm, 300 dpi/12 dots per mm (optional) |
| Memory | 512 MB Flash, 256MB SDRAM, 64 MB user available non-volatile memory, 8 MB user available SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi, 4.27 in./108 mm for 300 dpi, Cartridge: 4.09 in./104 mm for 203 and 300 dpi |
| Maximum Print Speed | 6 in./152 mm per second (203 dpi), 4 in./102 mm per second (300 dpi) |
| Media Sensors | Full width, moveable reflective/black mark sensor, multi-position transmissive/gap sensor |
| Firmware | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| Label Length | Maximum: 39.0 in./991 mm, Minimum: 0.25 in./6.4 mm |
| Media Width | Direct Thermal: 0.585 in./15 mm to 4.25 in./108 mm, Thermal Transfer Roll: 0.585 in./15 mm to 4.41 in./, 112 mm, Thermal Transfer Cartridge: 0.585 in./15 mm to 4.65 in./118 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm, Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in., (25.4 mm) standard, 1.5 in. (38.1), 2.0 in, (50.8 mm), and 3.0 in. (76.2 mm) using optional adapters |
| Media Thickness | 0.003 in. (0.08 mm) min, 0.0075 in. (0.19 mm) max. |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m), 1.34 in./34 mm (74 m) |
| Ribbon Standard Length | Roll: 984 ft. (300 m), 243 ft. (74 m), Cartridge: 243 ft. (74 m) |
| Ribbon Ratio | 1:4 ribbon to media (300 m), 1:1 ribbon to media (74 m) |
| Ribbon Width | Roll: 1.33 in./33.8 mm – 4.3 in./109.2 mm, Cartridge: 4.3 in./109.2 mm |
| Ribbon Core I.D. | 300 meter ribbon 1 in./25.4 mm, 74 meter ribbon 0.5 in./12.7 mm |
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR certified, Energy Efficiency Level VI certified, optional 2750 mAh battery, Healthcare models include IEC60601-1 certified power supply |
| Media Handling | Dispenser/Peeler: label peel and present with label present sensor (field installable), Cutter (field installable) |
| Communications | Field installable: Ethernet 10 / / / 100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio), Serial RS-232 auto-sensing, DB-9, Factory installed: Ethernet 10 / / / 100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio) |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed, supports all connectivity and media handling options |
| Carrying Case | Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application |
| Keyboard Display Unit | Zebra Keyboard Display Unit (ZKDU) unit for stand-alone printing solutions |
| Mounting Plate | Secure ZD Series printers to countertops or shelves |
| Enclosed Power Supply | Attached power supply accessory for cord-free installation |
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font |
