Intel NUC11 (Intel Celeron) Mini PC

Description

Plug In and Get Working — Entry-Level NUC, Ready Out of the Box

The Intel NUC11 ATKC2 arrives as a complete, ready-to-use Mini PC — Windows 11 Home installed, 4 GB of DDR4 RAM pre-fitted, 64 GB eMMC storage for the OS and basic applications, and a VESA wall mount kit in the box. For basic office productivity, web browsing, email, video conferencing, document work, and digital signage applications, it delivers everything needed without any additional configuration. The Jasper Lake Celeron N4505 (6W TDP) runs completely silently in light workloads and keeps the chassis cool and quiet across long operating hours — well-suited to always-on deployments in reception areas, meeting rooms, and public-facing kiosks.

Dual display output via HDMI and a USB Type-C DisplayPort alt-mode port supports dual-monitor setups, and 4K output at 60Hz is supported on both. Six USB ports span USB 3.2 Gen2 (10 Gbps), Gen1 (5 Gbps), and USB 2.0 for broad peripheral compatibility, and optical S/PDIF out covers audio routing to AV receivers or audio equipment. The consumer IR receiver enables remote control support for HTPC and media display deployments. An M.2 Gen3 NVMe slot provides a clear upgrade path for builders who want to add a faster, higher-capacity SSD alongside or instead of relying on eMMC alone.

⚠️ The 64 GB eMMC primary storage is soldered and cannot be replaced. For deployments requiring more working storage, an M.2 NVMe SSD should be added to the internal M.2 slot. The eMMC is sufficient for a Windows 11 Home installation with basic applications, but will fill quickly with heavy application installs or media files.

⚠️ The Celeron N4505 is a dual-core, 6W ultra-low-power processor — it is not suited to CPU-intensive tasks such as video editing, large data processing, virtualisation, or gaming. For those workloads, a higher-tier NUC with a Core i3, i5, or i7 processor is required.

⚠️ Wi-Fi is Wireless-AC (Wi-Fi 5, 433 Mbps dual-band) — not Wi-Fi 6 or 6E. For Wi-Fi 6 capability, a Core i-series NUC with the AX210 or AX201 module is the appropriate upgrade.

⚠️ Memory is not expandable beyond 32 GB (2× SODIMM slots). This unit ships with 4 GB in a single SODIMM — a second slot is free for a RAM upgrade without replacing the existing module.

💡 The included VESA mount bracket allows this NUC to be attached directly to the back of a compatible monitor, eliminating desk footprint entirely. Combined with the low 6W TDP, this makes it an excellent zero-footprint reception or signage display PC.

Technical Specifications

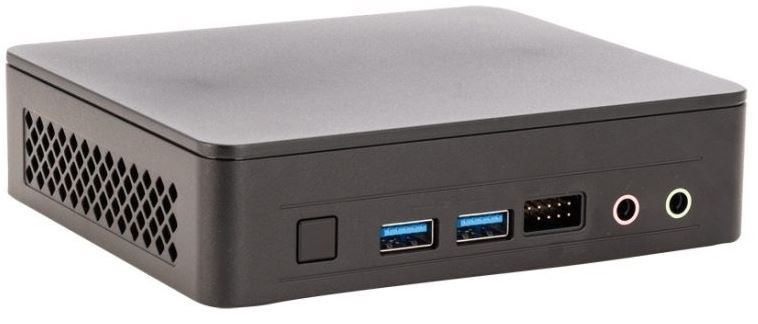

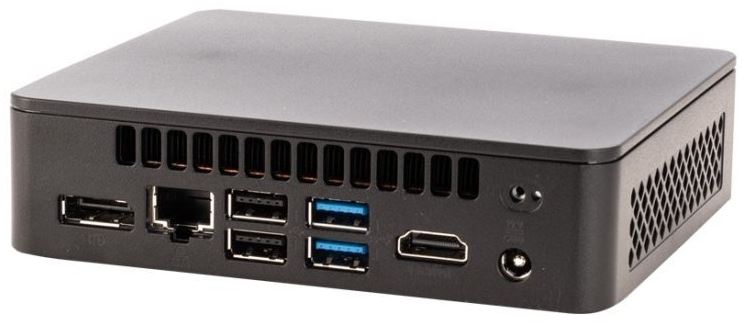

The Celeron N4505 uses Intel’s Jasper Lake architecture (10nm) with 2 cores, 2 threads, a 2.2 GHz base clock, and 2.9 GHz burst frequency, with 4 MB cache and a 6W TDP. Integrated Intel UHD Graphics (16 EU) drives both display outputs at up to 4K 60Hz. The 64 GB eMMC is fixed onboard storage; an M.2 2242/2280 Gen3 NVMe slot accepts an optional SSD. Rear connectivity includes 1× HDMI 2.0, 1× USB Type-C with DisplayPort alt-mode, 2× USB 3.2 Gen1 Type-A, 1× RJ-45 Gigabit Ethernet, and 3.5mm audio combo jack. Front connectivity includes 2× USB 3.2 Gen2 Type-A, 2× USB 2.0 Type-A, and an optical S/PDIF out. A consumer IR sensor supports remote control input.

Key Highlights

• Intel Celeron N4505 — Jasper Lake, 2 cores / 2 threads, 2.2–2.9 GHz, 4 MB cache, 6W TDP
• 4 GB DDR4-2933 SODIMM — 2 slots total, expandable to 32 GB
• 64 GB eMMC internal storage (soldered, non-replaceable)
• 1× M.2 Gen3 NVMe slot — optional SSD expansion
  Intel UHD Graphics (16 EU) — 4K 60Hz on both outputs
• 1× HDMI 2.0 + 1× DisplayPort via USB Type-C — dual 4K display support
• Gigabit Ethernet (RJ-45)
• Intel Wireless-AC 9462 — Wi-Fi 5, dual-band (2.4/5 GHz), 433 Mbps — no Wi-Fi 6
• Bluetooth (via wireless module)
• 2× USB 3.2 Gen2 Type-A (10 Gbps, front)
• 2× USB 3.2 Gen1 Type-A (5 Gbps, rear)
• 2× USB 2.0 Type-A (front)
• 3.5mm audio combo jack (headset/mic)
• Optical S/PDIF audio output
• Consumer IR sensor (remote control support)
• VESA wall mount kit included in box
• External 19V / 65W AC adapter
• Windows 11 Home 64-bit pre-installed
• No discrete GPU support — integrated graphics only
• Compact Mini PC form factor
