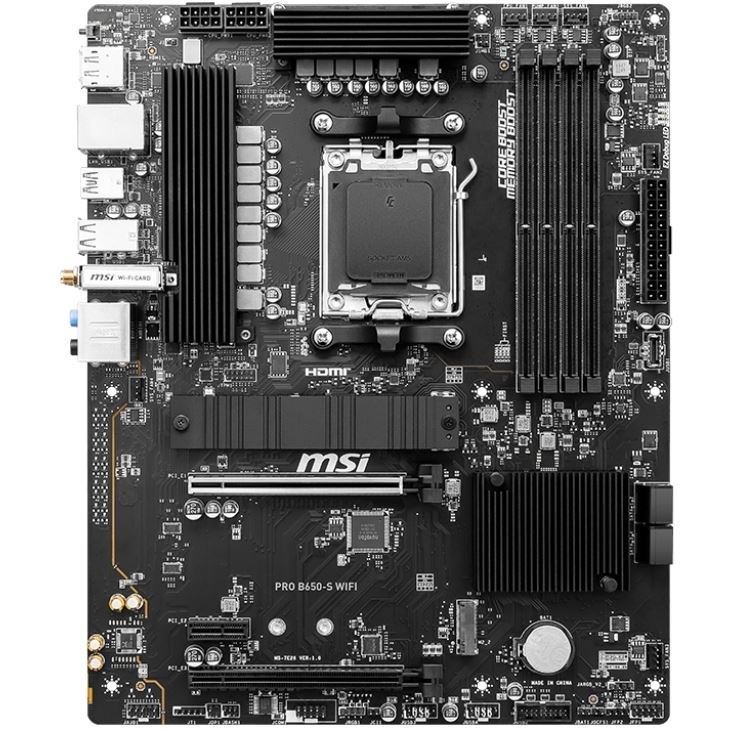

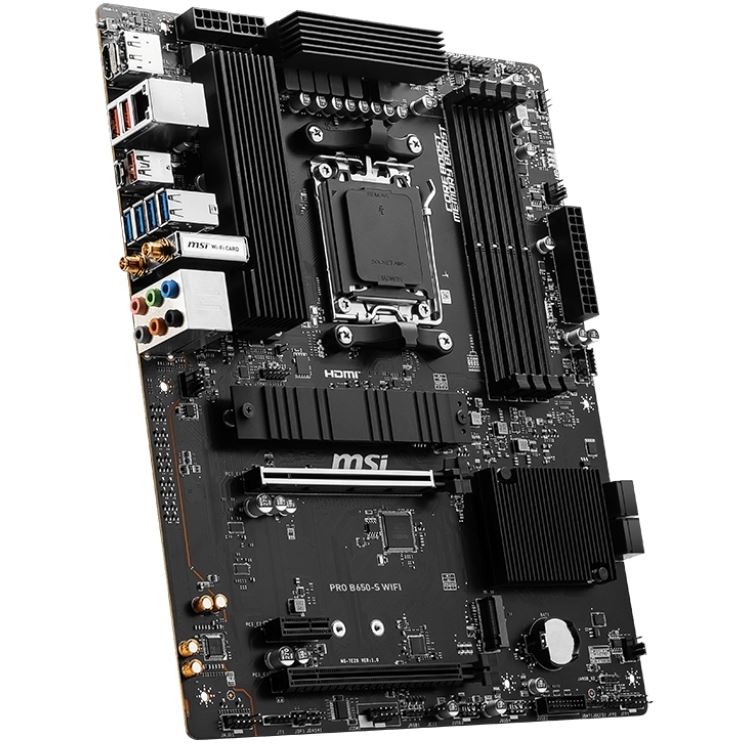

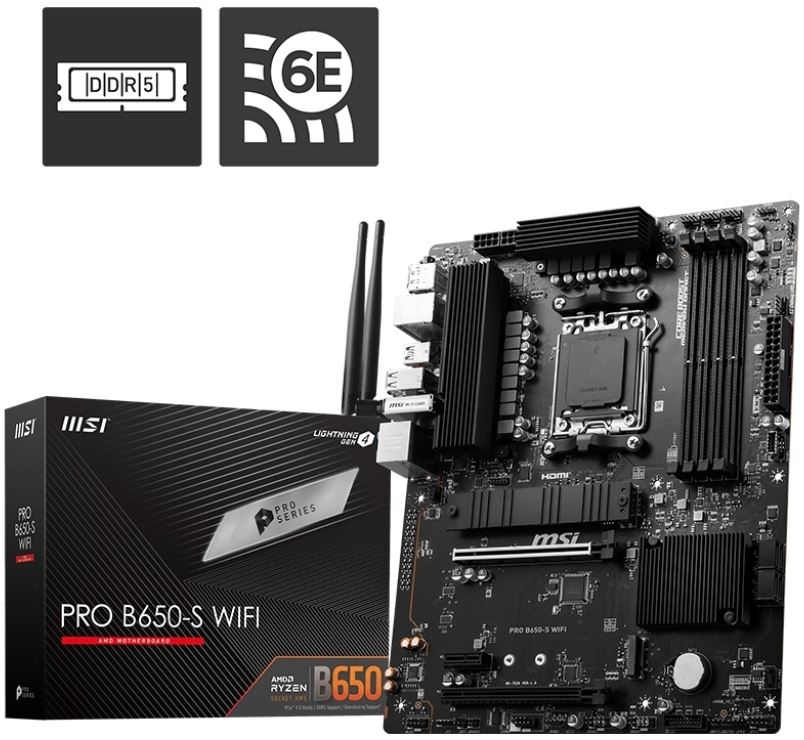

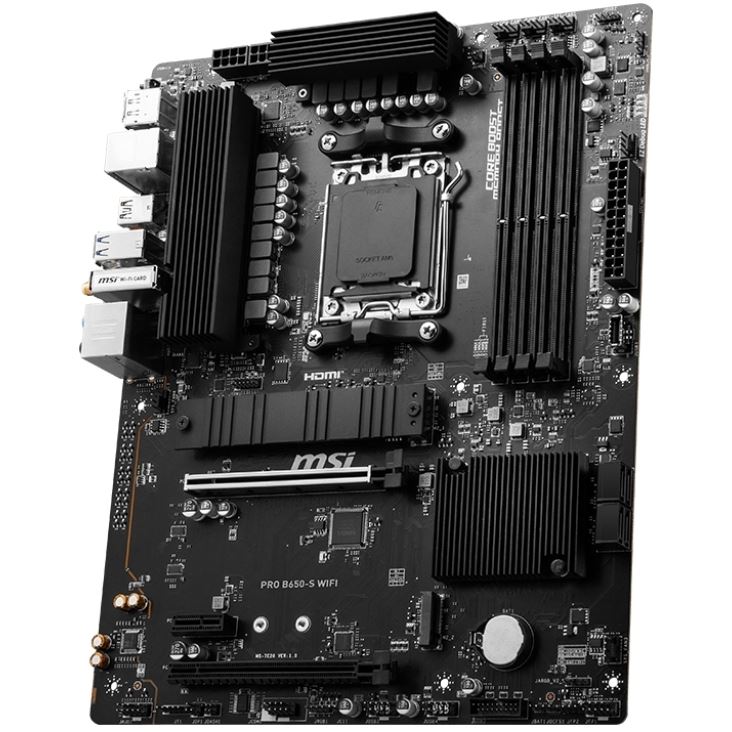

MSI Pro B650-S WiFi AMD AM5

Description

Professional-Grade B650 ATX, Built for Productivity

The PRO B650-S WiFi is part of MSI’s PRO series — a lineup designed not for gaming aesthetics but for professionals who need a reliable, well-built AM5 platform for workloads that run long and hard. The 12+2+1 Duet Rail Power System with dual 8-pin ATX12V connectors, 7 W/mk MOSFET thermal pads, and a 6-layer, 2oz copper PCB delivers the kind of sustained, stable power delivery that productivity and workstation builds demand — comparable in VRM quality to higher-end gaming boards, without paying for RGB lighting or aggressive heatsink styling. Both M.2 slots are CPU-connected at PCIe 4.0 x4, meaning there’s no bandwidth penalty on either slot due to a slower chipset-connected secondary — a genuine differentiator at this price tier. The USB rear panel is one of the strongest in this B650 tier: a Gen2x2 Type-C at 20 Gbps, three Gen2 Type-A at 10 Gbps, and four Gen1 Type-A at 5 Gbps — covering high-speed docks, fast external drives, and general peripheral use simultaneously. Flash BIOS Button and EZ Debug LEDs round out the build-and-service toolkit for professional deployers.

⚠️ CPU overclocking is supported on B650. The 12+2+1 Duet Rail Power System with dual 8-pin connectors handles the full Ryzen range at stock and supports sustained CPU OC confidently. Connect both 8-pin CPU power connectors before overclocking.

Memory and Storage

Four DDR5 UDIMM slots support dual-channel operation up to 192 GB, with EXPO and Memory Boost profiles reaching DDR5-7200+ (OC). Both M.2 slots are CPU-connected and run at PCIe 4.0 x4 (64 Gb/s): M2_1 supports 22110 and 2280 form factors and includes M.2 Shield Frozr heatsink coverage; M2_2 supports 2280 and 2260 form factors. Four SATA 6Gb/s ports handle additional storage. RAID 0/1/10 is supported for SATA and RAID 0/1 for NVMe.

⚠️ Maximum supported memory is 192 GB — not 256 GB as on some competing B650 boards. For 256 GB capacity, a board with four-slot support at higher density is required.

⚠️ M2_2 drops from PCIe 4.0 x4 to PCIe 4.0 x2 with Ryzen 8500/8300 processors specifically. Ryzen 7000, 9000, and most Ryzen 8000 variants run M2_2 at the full x4 rate.

⚠️ No PCIe Gen5 M.2 slot is present on this board — the fastest M.2 speed is PCIe 4.0 x4 (64 Gb/s). For Gen5 NVMe, an MSI B850 or higher board is required.

Connectivity and I/O

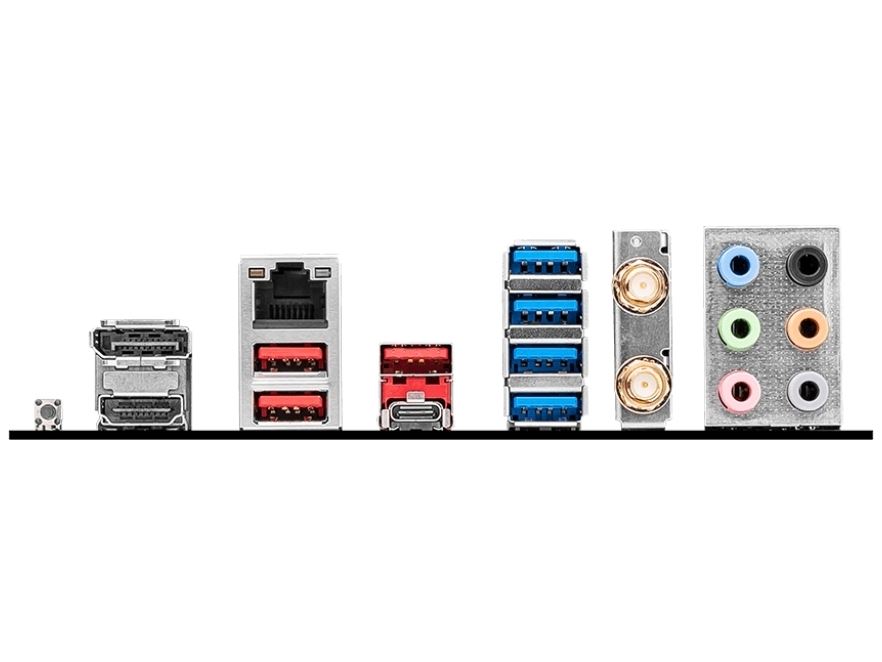

The rear panel stands out for its USB density: one USB Gen2x2 Type-C (20 Gbps), three USB Gen2 Type-A (10 Gbps), and four USB Gen1 Type-A (5 Gbps) — eight rear USB ports in total, all at Gen1 or faster. DisplayPort 1.4 and HDMI 2.1 serve iGPU-equipped processors. Realtek 8125BG 2.5GbE handles wired networking. Wi-Fi 6E (802.11ax, 2.4/5/6 GHz, MU-MIMO) and Bluetooth 5.3 are onboard. Front panel USB includes one Gen2 Type-C header (10 Gbps), two USB 5 Gbps Type-A, and four USB 2.0. Fan headers total six: one CPU fan, one pump fan, and four system fan headers, all with Frozr AI Cooling auto-detection. An XL Clip on the primary PCIe x16 slot makes graphics card removal easier without a screwdriver. No RGB or ARGB headers are present — the PRO series is RGB-free by design.

⚠️ No RGB or ARGB headers are present on this board. If RGB lighting control is a requirement, a Gaming-series board is the appropriate alternative.

⚠️ Integrated display output (HDMI/DisplayPort) requires a Ryzen processor with integrated Radeon graphics. Non-G Ryzen 7000/9000 CPUs require a discrete GPU.

Key Highlights

• AMD B650 chipset, Socket AM5 — CPU overclocking supported
• Supports Ryzen 7000, 8000, and 9000 Series
• ATX form factor — 243.84 mm × 304.8 mm
• 12+2+1 Duet Rail Power System, Digital PWM, Core Boost
• 6-layer, 2oz copper PCB, 7 W/mk MOSFET thermal pads
• Dual 8-pin ATX12V CPU power connectors
• 4× DDR5 UDIMM slots, dual-channel, up to 192 GB, DDR5-7200+ (OC)
• EXPO and MSI Memory Boost support
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, 22110/2280, M.2 Shield Frozr) — M2_1
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, 2280/2260) — M2_2 (x2 with Ryzen 8500/8300)
• No PCIe Gen5 M.2 — fastest M.2 is PCIe 4.0 x4
• 4× SATA 6Gb/s ports
• RAID 0/1/10 for SATA / RAID 0/1 for NVMe
• 1× PCIe 4.0 x16 (primary GPU, Steel Armor, XL Clip) + 1× PCIe 4.0 x4 (chipset) + 1× PCIe 3.0 x1 (chipset)
• DisplayPort 1.4 + HDMI 2.1 — rear (iGPU only)
• Realtek 8125BG 2.5GbE LAN
• Wi-Fi 6E (802.11ax, 2.4/5/6 GHz, MU-MIMO) + Bluetooth 5.3
• 8× rear USB: Gen2x2 Type-C (20 Gbps) + 3× Gen2 Type-A (10 Gbps) + 4× Gen1 Type-A (5 Gbps)
• Front USB: Gen2 Type-C header (10 Gbps) + 2× USB 5 Gbps Type-A + 4× USB 2.0
• 1× CPU fan + 1× pump fan + 4× system fan headers — Frozr AI Cooling, auto DC/PWM detect
• No RGB or ARGB headers — PRO series, RGB-free
• 4× EZ Debug LEDs (CPU/DRAM/VGA/BOOT)
• Flash BIOS Button (rear) — no CPU/RAM required
• Pre-installed I/O shield
• TPM 2.0 header, COM port header, chassis intrusion header
• Realtek ALC897 7.1-Ch HD Audio, Audio Boost
