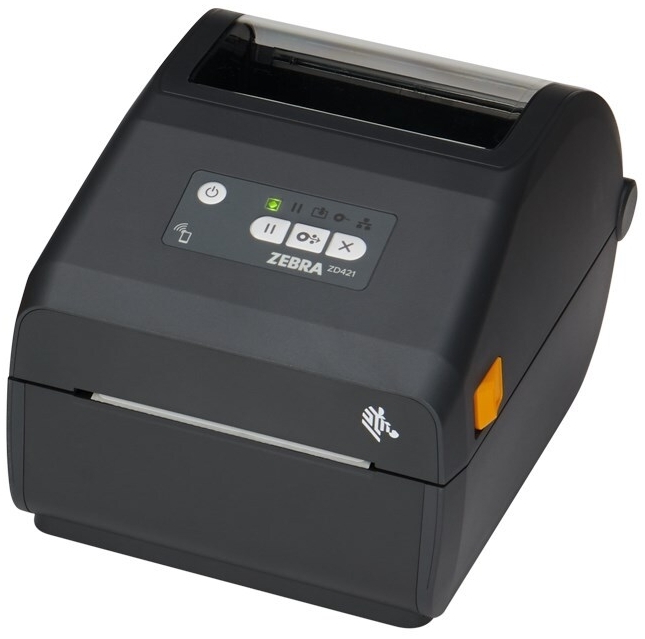

Zebra ZD421 Thermal Transfer USB/Bluetooth Printer
R7,405.00 inc. VAT
The Zebra ZD421 delivers fast, reliable thermal printing for South African businesses with dual USB and Bluetooth connectivity. Supports both thermal transfer and direct thermal methods with versatile media handling. Features intuitive mobile app setup and robust enterprise-grade construction for demanding POS environments.
In stock
Description
Advanced Dual Printing Technology
Seamlessly switch between thermal transfer and direct thermal printing methods to accommodate various media types and application requirements. The ZD421 supports 203 dpi standard resolution with optional 300 dpi for crisp, professional-quality labels and receipts. Utilizes industry-standard ZPL and EPL programming languages for easy integration with existing systems.
Versatile Connectivity Options
Streamline deployment with USB 2.0 and USB Host connectivity plus Bluetooth Low Energy 5 for mobile configuration via the Zebra setup app. Field-installable options include Ethernet, Wi-Fi, and advanced Bluetooth 4.1 for flexible network integration. The printer’s Link-OS operating system ensures compatibility across diverse business environments.
Enterprise-Ready Features
Built with dual-wall frame construction for durability in busy commercial settings, plus ENERGY STAR certification for reduced operational costs. Includes Real Time Clock for timestamped printing applications and PDF Direct capability for versatile document handling. The openACCESS design enables quick media loading during peak business hours.
Key Highlights
- Print Speed: Up to 6 ips (203 dpi) / 4 ips (300 dpi)
- Memory: 512 MB Flash, 256 MB SDRAM, 64 MB non-volatile
- Media Width Range: 15 mm to 118 mm depending on configuration
- Ribbon Support: 74m to 300m lengths with automatic detection
- Max Label Length: 991 mm / 39 inches for extended formats
- Operating Environment: 4°C to 41°C, 10% to 90% humidity
- Communications: USB, Bluetooth, optional Ethernet/Wi-Fi
- Bar Code Support: Comprehensive 1D/2D symbologies including QR Code
Proudly sold by the Ringwood Digital Store.
Additional information
| Weight | 2.3 kg |
|---|---|
| Standard Features | Print methods: Thermal Transfer or Direct Thermal, ZPL and EPL programming languages, 5 status icon, 3 button user interface, USB 2.0, USB Host, Printer setup mobile app for Android and iOS via BLE, (Bluetooth Low Energy 5) connection*, * BLE is intended for use with Zebra printer setup mobile app only, Real Time Clock (RTC), OpenACCESS for easy media loading, Dual-wall frame construction, ENERGY STAR certified, PDF Direct |
| Dimension | Direct Thermal:, 8.69 in. L x 6.98 in. W x 5.93 in. H, 220.8 mm L x 177.5 mm W x 150.7 mm H, Thermal Transfer Roll:, 10.5 in. L x 8.0 in. W x 7.44 in. H, 267 mm L x 202 mm W x 189 mm H, Thermal Transfer Cartridge:, 10.0 in. L x 8.0 in. W x 7.0 in. H, 254 mm L x 202 mm W x 177 mm H |
| Weight | Direct Thermal: 2.98 lbs./1.35 kg, Thermal Transfer Roll: 4.52 lbs./2.05 kg, Thermal Transfer Cartridge: 5.0 lbs./2.3 kg |
| Operating System | Link-OS |
| Resolution | 203 dpi/8 dots per mm, 300 dpi/12 dots per mm (optional) |
| Memory | 512 MB Flash, 256MB SDRAM, 64 MB user available non-volatile memory, 8 MB user available SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi, 4.27 in./108 mm for 300 dpi, Cartridge: 4.09 in./104 mm for 203 and 300 dpi |
| Maximum Print Speed | 6 in./152 mm per second (203 dpi), 4 in./102 mm per second (300 dpi) |
| Media Sensors | Full width, moveable reflective/black mark sensor, multi-position transmissive/gap sensor |
| Firmware | ZPL II, EPL 2, XML, ZBI, PDF Direct |
| Label Length | Maximum: 39.0 in./991 mm, Minimum: 0.25 in./6.4 mm |
| Media Width | Direct Thermal: 0.585 in./15 mm to 4.25 in./108 mm, Thermal Transfer Roll: 0.585 in./15 mm to 4.41 in./ 112 mm, Thermal Transfer Cartridge: 0.585 in./15 mm to 4.65 in./118 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm, Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in, (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters |
| Media Thickness | 0.003 in. (0.08 mm) min, 0.0075 in. (0.19 mm) max. |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m), 1.34 in./34 mm (74 m) |
| Ribbon Standard Length | Roll: 984 ft. (300 m), 243 ft. (74 m), Cartridge: 243 ft. (74 m) |
| Ribbon Ratio | 1:4 ribbon to media (300 m), 1:1 ribbon to media (74 m) |
| Ribbon Width | Roll: 1.33 in./33.8 mm – 4.3 in./109.2 mm, Cartridge: 4.3 in./109.2 mm |
| Ribbon Core I.D. | 300 meter ribbon 1 in./25.4 mm, 74 meter ribbon 0.5 in./12.7 mm |
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR certified, Energy Efficiency Level VI certified, optional 2750 mAh battery, Healthcare models include IEC60601-1 certified power supply |
| Media Handling | Dispenser/Peeler: label peel and present with label present sensor (field installable), Cutter (field installable) |
| Communications | Field installable: Ethernet 10 / / / 100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio), Serial RS-232 auto-sensing, DB-9, Factory installed: Ethernet 10 / / / 100, 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio) |
| Battery | Provides power to the printer to support a full shift of printing at maximum print speed, supports all connectivity and media handling options |
| Carrying Case | Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application |
| Keyboard Display Unit | Zebra Keyboard Display Unit (ZKDU) unit for stand-alone printing solutions |
| Mounting Plate | Secure ZD Series printers to countertops or shelves |
| Enclosed Power Supply | Attached power supply accessory for cord-free installation |
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font |
