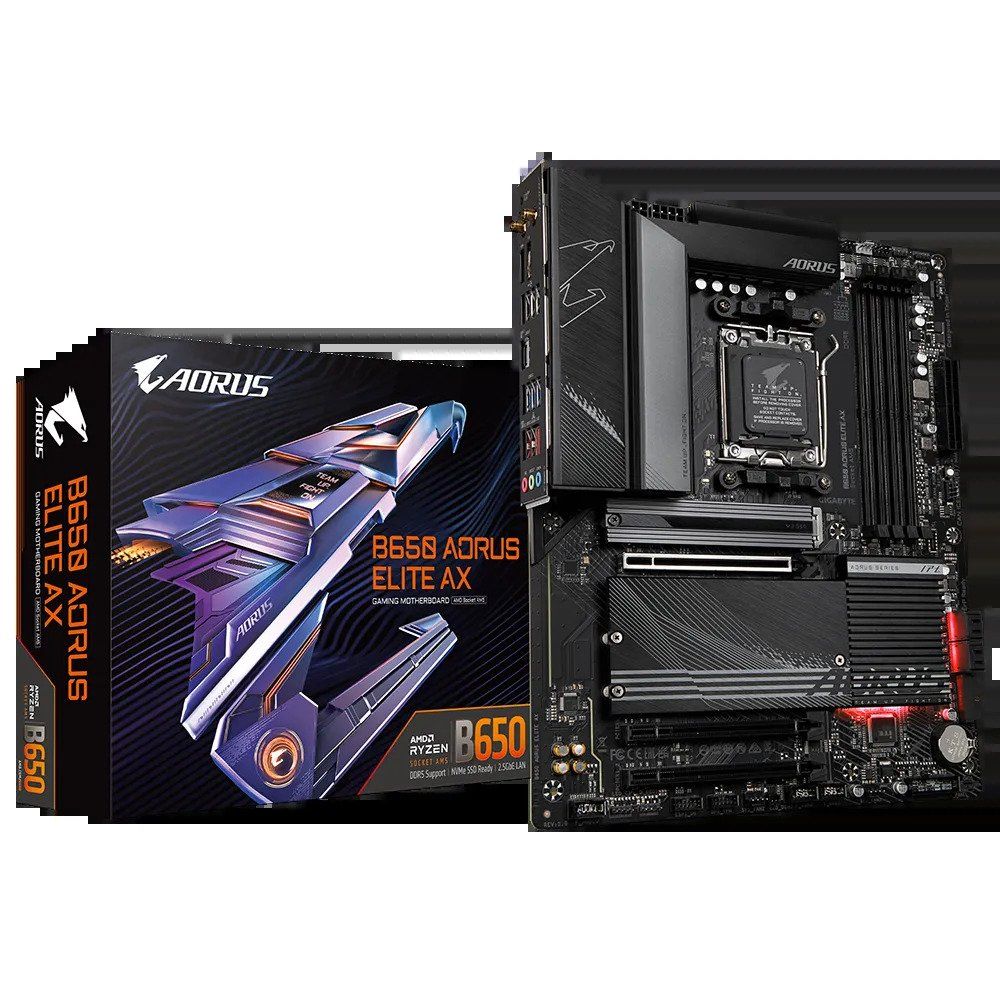

Gigabyte B650 Aorus Elite AX AMD AM5

Description

AORUS Mid-Range Performance, Properly Equipped

The B650 Aorus Elite AX brings Gigabyte’s AORUS build standards to a B650 ATX platform at a price point that doesn’t compromise where it counts. The Twin 14+2+1 digital VRM uses 70A Smart Power Stage MOSFETs on an 8-layer, 2oz copper PCB — a meaningful upgrade over typical mid-range VRM configurations — with fully covered MOSFET heatsinks, a 6mm mega-heatpipe, and 7 W/mk thermal pads keeping everything cool under sustained CPU loads including overclocking. Dual 8+4-pin ATX12V power connectors (both an 8-pin and a supplementary 4-pin) feed the VRM, and both should be connected when running demanding workloads or applying CPU OC. The integrated I/O shield, tool-free EZ-Latch on both PCIe x16 and M.2 connectors, and bottom-mounted Q-Flash Plus button all contribute to a clean, DIY-friendly build experience.

⚠️ CPU overclocking is supported on B650. The Twin 14+2+1 70A VRM handles the full Ryzen 7000/9000 lineup including 170W+ processors with good headroom for moderate overclocking. Connect both the 8-pin and 4-pin ATX12V cables for any overclocking workloads.

Memory and Storage

Four DDR5 DIMM slots support dual-channel operation up to 256 GB, with AMD EXPO and XMP OC profiles reaching DDR5-8000 and beyond. All three M.2 slots feature M.2 Thermal Guard heatsinks with EZ-Latch for screwless installation and removal. The first slot (M2A_CPU) is CPU-connected and runs at PCIe 5.0 x4 (128 Gb/s) with Ryzen 7000/9000, accepting up to the extended 25110 form factor in addition to standard 2280 and 2580. The second slot (M2B_CPU) is CPU-connected at PCIe 4.0 x4 (64 Gb/s) and also supports 25110. The third slot (M2C_SB) is chipset-connected at PCIe 4.0 x4 (64 Gb/s), likewise supporting up to 25110. Four SATA 6Gb/s ports provide additional storage, and RAID 0/1/10 is supported for both SATA and NVMe devices.

⚠️ M2A_CPU runs at PCIe 5.0 x4 with Ryzen 7000 and 9000 but drops to PCIe 4.0 x4 with all Ryzen 8000 variants. Ryzen 8000 Phoenix 2 processors further reduce M2B_CPU bandwidth — confirm CPU-specific M.2 bandwidth from Gigabyte’s PCIe/M.2 table if Ryzen 8000 is the chosen processor.

⚠️ This is B650 (not B650E). The primary PCIe x16 GPU slot runs at PCIe 4.0 x16 with Ryzen 7000/9000, not PCIe 5.0 x16. Current-generation discrete GPUs are unaffected in real-world performance, but this is worth noting for future GPU planning.

Connectivity and I/O

Rear USB is one of the strongest aspects of this board: twelve ports total, comprising a USB 3.2 Gen2 Type-C (10 Gbps, also supporting DisplayPort alt-mode), two USB 3.2 Gen2 Type-A (10 Gbps, red — one of which is the Q-Flash Plus port), five USB 3.2 Gen1 Type-A (5 Gbps), and four USB 2.0 Type-A. A front panel USB 3.2 Gen2x2 Type-C header (20 Gbps) is also provided for modern case panels. Display outputs cover HDMI 2.1 and DisplayPort 1.4 for iGPU-equipped processors. Realtek 2.5GbE handles wired networking with LANGuard protection, while Wi-Fi 6E (802.11ax, 2.4/5/6 GHz, MU-MIMO) and Bluetooth 5.3 cover wireless. Fan headers are comprehensive: CPU_FAN, CPU_OPT, four system fan/pump headers (SYS_FAN1–3 plus SYS_FAN4_PUMP), all 4-pin with PWM/DC support and Smart Fan 6 control. RGB is well covered with two D_LED addressable headers and two LED_C standard RGB headers, all controlled through RGB Fusion 2.0.

⚠️ No USB 3.2 Gen2x2 Type-C port is present on the rear panel — the Gen2x2 (20 Gbps) connection is front-panel header only. The rear Type-C is Gen2 at 10 Gbps.

⚠️ Integrated display output (HDMI/DisplayPort) requires a Ryzen processor with integrated Radeon graphics. Non-G Ryzen 7000/9000 CPUs require a discrete GPU.

Key Highlights

• AMD B650 chipset, Socket AM5 — CPU overclocking supported
• Supports Ryzen 7000, 8000, and 9000 Series
• ATX form factor
• Twin 14+2+1 phase digital VRM, 70A Smart Power Stage
• 8-layer, 2oz copper PCB with low-loss design
• Dual 8+4-pin ATX12V CPU power connectors
• 4× DDR5 DIMM slots, dual-channel, up to 256 GB, DDR5-8000+ (OC)
• AMD EXPO and XMP memory profile support
• 1× M.2 PCIe 5.0 x4 (CPU, 128 Gb/s, up to 25110, with Thermal Guard + EZ-Latch) — M2A_CPU
• 1× M.2 PCIe 4.0 x4 (CPU, 64 Gb/s, up to 25110, with Thermal Guard + EZ-Latch) — M2B_CPU
• 1× M.2 PCIe 4.0 x4 (chipset, 64 Gb/s, up to 25110, with Thermal Guard + EZ-Latch) — M2C_SB
• 4× SATA 6Gb/s ports
• RAID 0/1/10 for SATA and NVMe
• 1× PCIe 4.0 x16 (primary GPU, EZ-Latch, stainless steel reinforced) + 2× PCIe 3.0 x1
• HDMI 2.1 + DisplayPort 1.4 — rear (iGPU only)
• Realtek 2.5GbE LANGuard
• Wi-Fi 6E (802.11ax, 2.4/5/6 GHz, MU-MIMO) + Bluetooth 5.3
• 12× rear USB: Gen2 Type-C (10 Gbps) + 2× Gen2 Type-A (10 Gbps) + 5× Gen1 Type-A (5 Gbps) + 4× USB 2.0
• Front USB 3.2 Gen2x2 Type-C header (20 Gbps)
• CPU_FAN + CPU_OPT + 4× system/pump fan headers — Smart Fan 6, all 4-pin PWM/DC
• 2× D_LED (ARGB) headers + 2× LED_C (RGB) headers — RGB Fusion 2.0
• Integrated pre-mounted I/O shield
• EZ-Latch Plus on PCIe x16 and all three M.2 slots
• Q-Flash Plus (BIOS update without CPU/RAM)
• SPI TPM header
• Realtek ALC897 HD Audio CODEC, audio noise guard, high-end audio capacitors
