Gigabyte GeForce RTX™ 5060 Windforce Max OC (8GB GDDR7)

Description

Blackwell Architecture, Mainstream Sweet Spot

The RTX 5060 is built on NVIDIA’s Blackwell architecture using TSMC’s 4nm N4P process, with 3,840 CUDA cores, 120 fifth-generation Tensor Cores, and 30 fourth-generation RT Cores. The factory overclock pushes the boost clock to 2512 MHz, up from the 2497 MHz reference, across 8GB of GDDR7 at 28 Gbps on a 128-bit bus, delivering 448 GB/s of memory bandwidth. That bandwidth figure — enabled by GDDR7’s higher transfer rates — is a meaningful step up from the GDDR6-based RTX 3060’s 360 GB/s despite the same bus width. DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2 with Frame Warp, hardware ray tracing, and NVIDIA Studio creative acceleration are all fully supported.

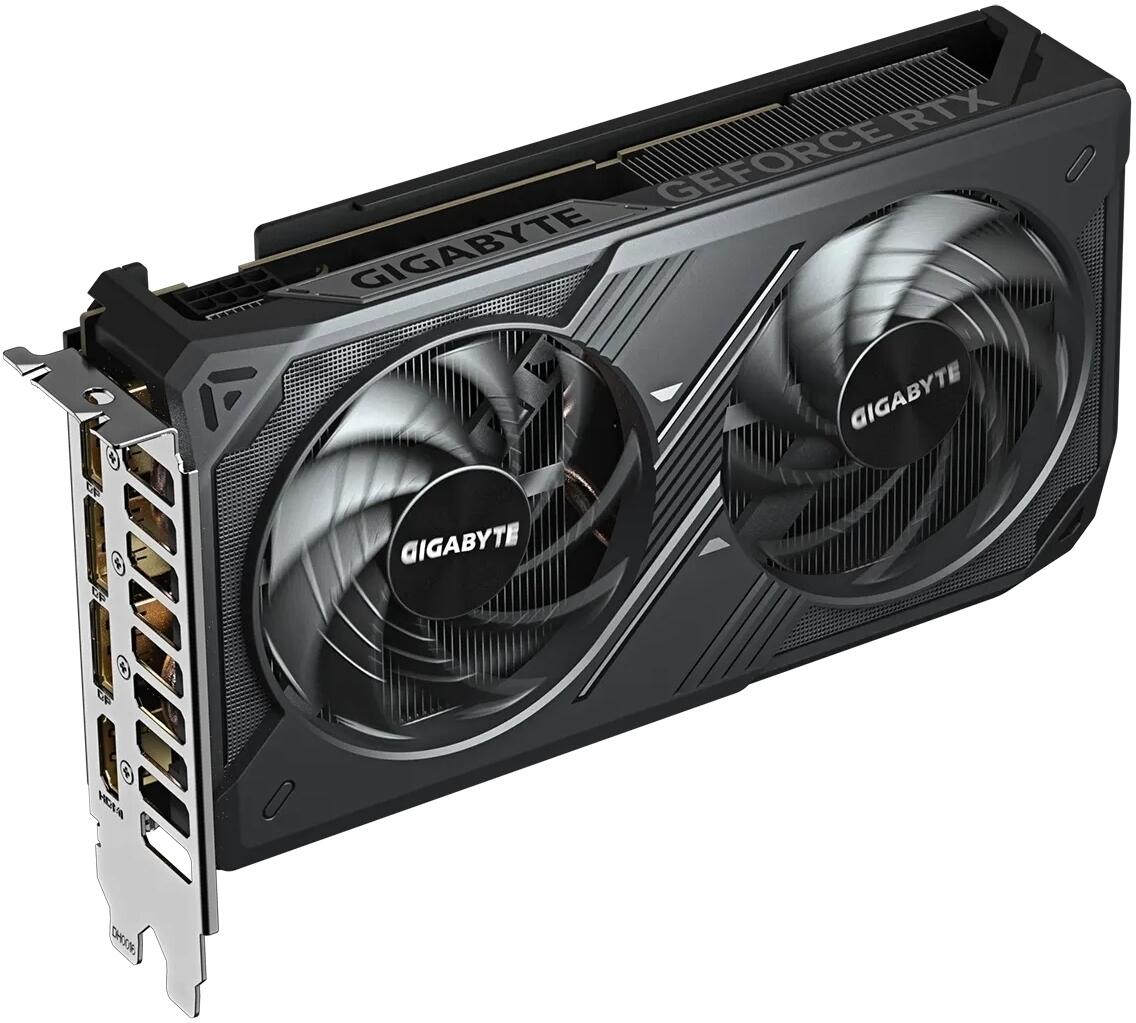

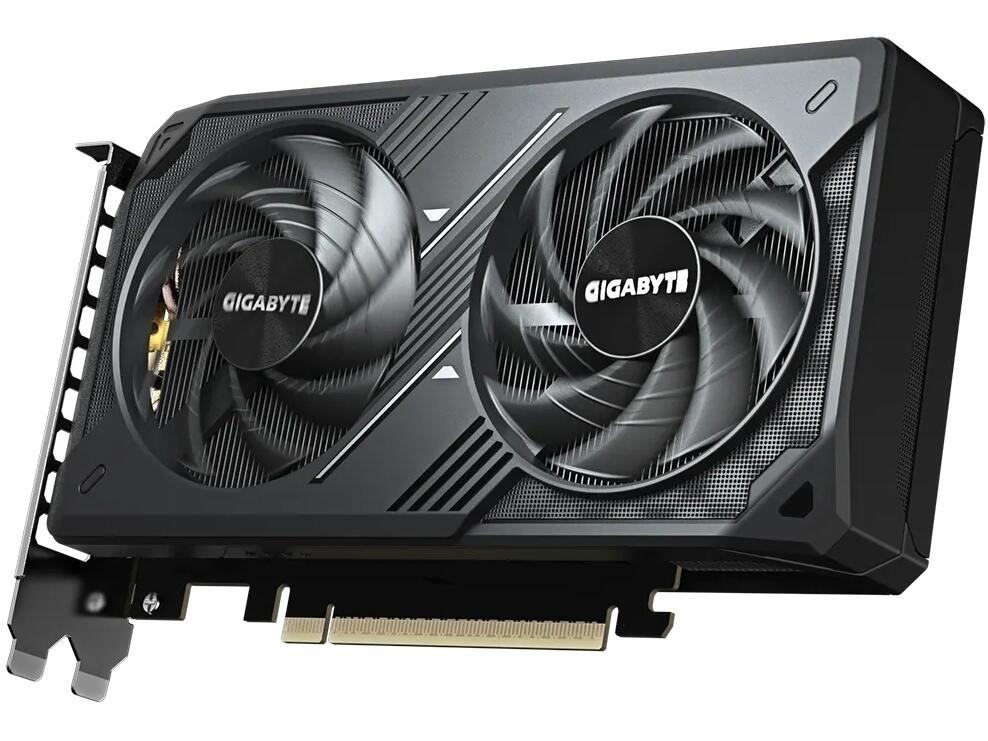

WINDFORCE MAX Cooling System

The “MAX” designation on this WINDFORCE variant denotes the upgraded cooler. WINDFORCE MAX cooling combines Hawk fans, composite copper heat pipes, and server-grade thermal conductive gel for peak-load thermal management in a compact footprint. The Hawk Fan’s unique blade geometry increases air pressure by 53.6% compared to conventional fan designs, and the sleeve bearing is enhanced with graphene lubricant for a 2.1× longer lifespan and quieter operation. The full WINDFORCE system also incorporates alternate fan spinning to reduce turbulence, a copper plate for direct GPU contact, 3D active fans, and screen cooling fins. A reinforced structure adds rigidity to the PCB and prevents sag over time.

Compact, Practical, and Power-Efficient

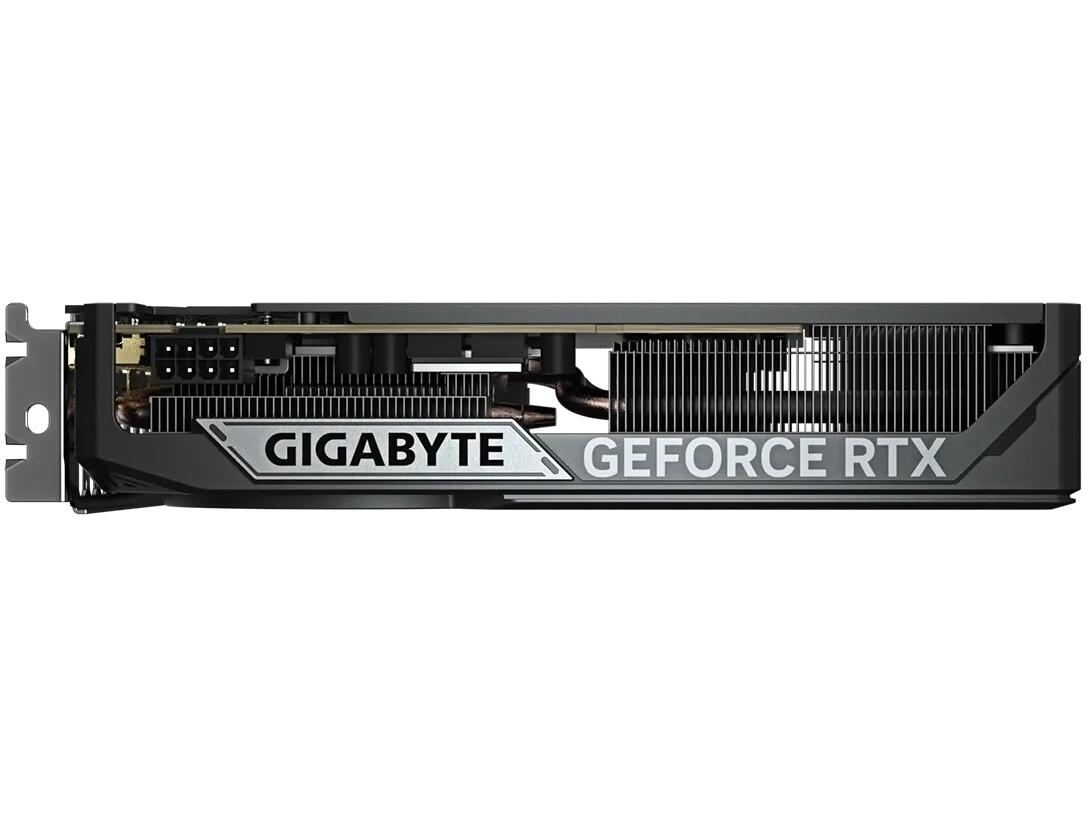

The card measures just 199 × 116 × 40 mm — compact enough for mid-tower and micro-ATX builds where card length is constrained. A single 8-pin PCIe power connector covers the card’s power needs, with a minimum recommended PSU of 450W — one of the lower PSU requirements in the RTX 50 series, making it a practical upgrade for systems built around modest power supplies. There’s no RGB on this card, keeping the aesthetic clean and build integration straightforward. GIGABYTE Control Center software handles monitoring, fan curve tuning, and driver management.

Connectivity

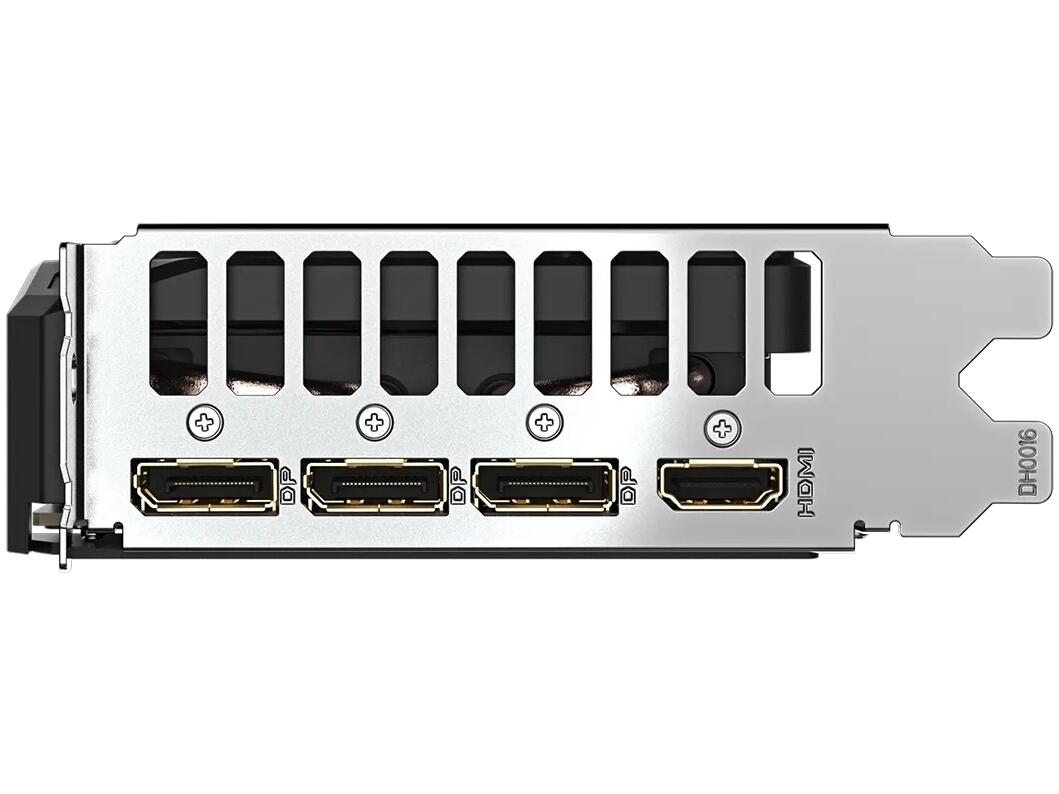

Display outputs include 3× DisplayPort 2.1b and 1× HDMI 2.1b, supporting up to 4 simultaneous displays at up to 7680×4320. The interface is PCIe 5.0, fully backwards compatible with PCIe 4.0 and 3.0 motherboards.

⚠️ 8GB GDDR7 note: The 128-bit bus width is shared with the previous-gen RTX 4060, but GDDR7’s higher transfer rate meaningfully improves bandwidth. At 1080p and 1440p with DLSS enabled this card performs very well; native 4K at max settings will be limited by the 8GB VRAM ceiling on texture-heavy titles.

⚠️ PCIe compatibility note: This card uses PCIe 5.0 and is electrically x16. It is fully backward compatible with PCIe 4.0 and 3.0 motherboards with no performance penalty at this performance tier.

Key Highlights

• NVIDIA Blackwell architecture — 3,840 CUDA cores (GB206-250, TSMC 4nm)
• 8GB GDDR7, 128-bit bus, 28 Gbps, 448 GB/s bandwidth
• 2512 MHz boost clock (factory OC over 2497 MHz reference)
• WINDFORCE MAX cooling — Hawk fans, composite copper heat pipes, server-grade thermal gel
• Hawk Fan: 53.6% higher air pressure, graphene lubricant, 2.1× fan lifespan
• Alternate fan spinning + 3D active fans + screen cooling
• Reinforced structure — no RGB
• DLSS 4 with Multi Frame Generation + NVIDIA Reflex 2 with Frame Warp
• 4th Gen RT Cores (30) + 5th Gen Tensor Cores (120)
• 3× DisplayPort 2.1b, 1× HDMI 2.1b — up to 4 displays / 8K output
• PCIe 5.0 x16, backwards compatible
• 199 mm length, 2-slot design
• ~150W TDP — 1× 8-pin PCIe power connector
• 450W PSU recommended
