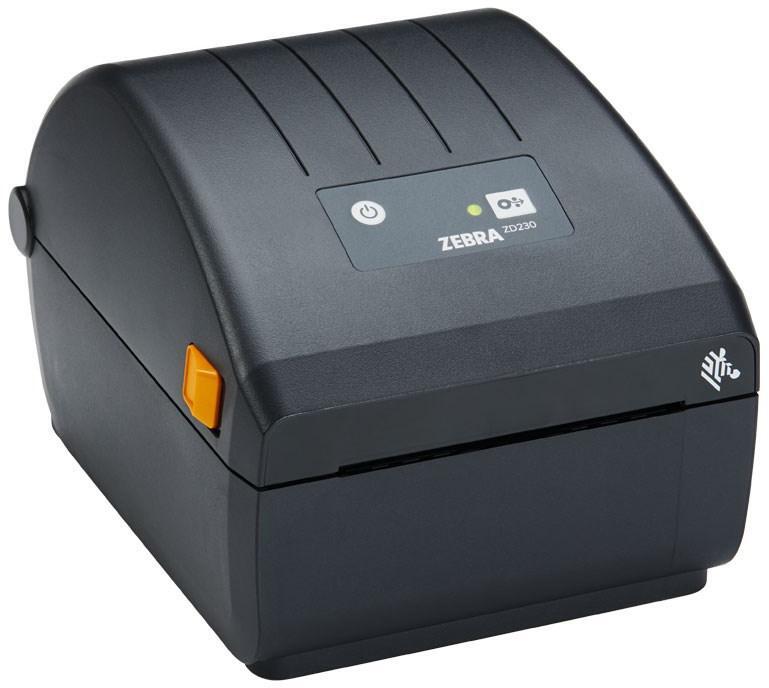

Zebra ZD230-D Direct Thermal USB/LAN Printer
R5,455.00 inc. VAT
The Zebra ZD230-D is a compact direct-thermal receipt printer ideal for busy POS environments. It delivers fast, reliable printing at 203 dpi with versatile USB, Ethernet, and optional wireless connectivity.
In stock
Description
Reliable Direct‑Thermal Printing
Print receipts quickly and cleanly with the ZD230-D’s direct-thermal technology. It offers 203 dpi resolution and a top speed of 6 ins/s, handling media widths from 25.4 mm to 112 mm for most POS needs.
Versatile Connectivity Options
Stay connected with built‑in USB and Ethernet ports. Optional Wi‑Fi (802.11ac) and Bluetooth 4.1 keep the printer flexible, while auto‑detectable power supports a wide 100‑240 V range and ENERGY STAR qualification.
Robust Construction & Easy Media Handling
The ZD230-D features a dual‑wall frame, OpenACCESS media loading, and a single‑button feed/pause for simple operation. Factory‑installed peel or cutter options make media preparation straightforward.
Key Highlights
- Resolution: 203 dpi (8 dots/mm)
- Maximum print speed: 6 ins/s (152 mm/s)
- Maximum label length: 991 mm (39 in)
- Media width: 25.4 mm – 112 mm
- Memory: 256 MB flash, 128 MB SDRAM
- Supported languages: ZPL, EPL, XML
- ENERGY STAR qualified, operating temp 4.4 °C‑ 41 °C
- Thermal Transfer or Direct Thermal print method
- ZebraDesigner Essentials free label design software
- Single LED status indicator and single feed/pause button
- Supports a wide range of 1D and 2D barcodes, Unicode fonts, and graphics
Proudly sold by the Ringwood Digital Store.
Additional information
| Dimensions | 19.7 × 26.7 × 19.1 cm |
|---|---|
| features | Thermal Transfer or Direct Thermal print method, ZPL and EPL programming languages, Single LED status indicator, Single button for feed/pause, USB connectivity, OpenACCESS for easy media loading, Dual-wall frame construction, ENERGY STAR qualified, ZebraDesigner Essentials – easy label design tool free at |
| Dimension | Thermal Transfer:, 10.5 in. L x 7.75 in. W x 7.5 in. H, 267 mm L x 197 mm W x 191 mm H, Direct Thermal, 8.6 in. L x 6.9 in. W x 5.9 in. H, 220 mm L x 176 mm W x 151 mm H |
| Weight | 2.5 lbs/1.1 kg |
| Resolution | 203 dpi/8 dots per mm |
| Memory | 256 MB Flash, 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi |
| Maximum Print Speed | 6 in./152 mm per second |
| Media Sensors | Movable black mark sensor, limited range from center to left side, Fixed off-center gap sensor |
| Firmware | ZPL II, EPL 2, XML |
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm |
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) |
| Thickness | 0.003 in. (0.08 mm) min, 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m), 1.34 in./34 mm (74 m) |
| Maximum Ribbon Length | 984 ft. (300 m) |
| Ribbon Ratio | 1:4 media to ribbon (300 m), 1:1 media to ribbon (74 m) |
| Ribbon Width | 1.33 in./33.8 mm ~ 4.3 in./109.2 mm |
| Ribbon Core I.D. | 300 Meter ribbon 1 in./25.4 mm, 74 Meter ribbon 0.5 in./12.7 mm |
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified |
| Media Handling | Factory installed peeler or cutter |
| Communications | Factory-installed USB and Ethernet, Factory-installed USB and Bluetooth 4.1, Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1 |
| Real Time Clock | None |
| Keyboard Display Unit | No serial port, thus no KDU/ZKDU |
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts, Two resident scalable ZPL fonts, Five resident expandable EPL2 fonts, Native open-type font support, Unicode compliant for multi-language, on demand thermal printing, China units include SimSun simplified Chinese font, 50 MB user available non-volatile memory, 8 MB user available SDRAM |
