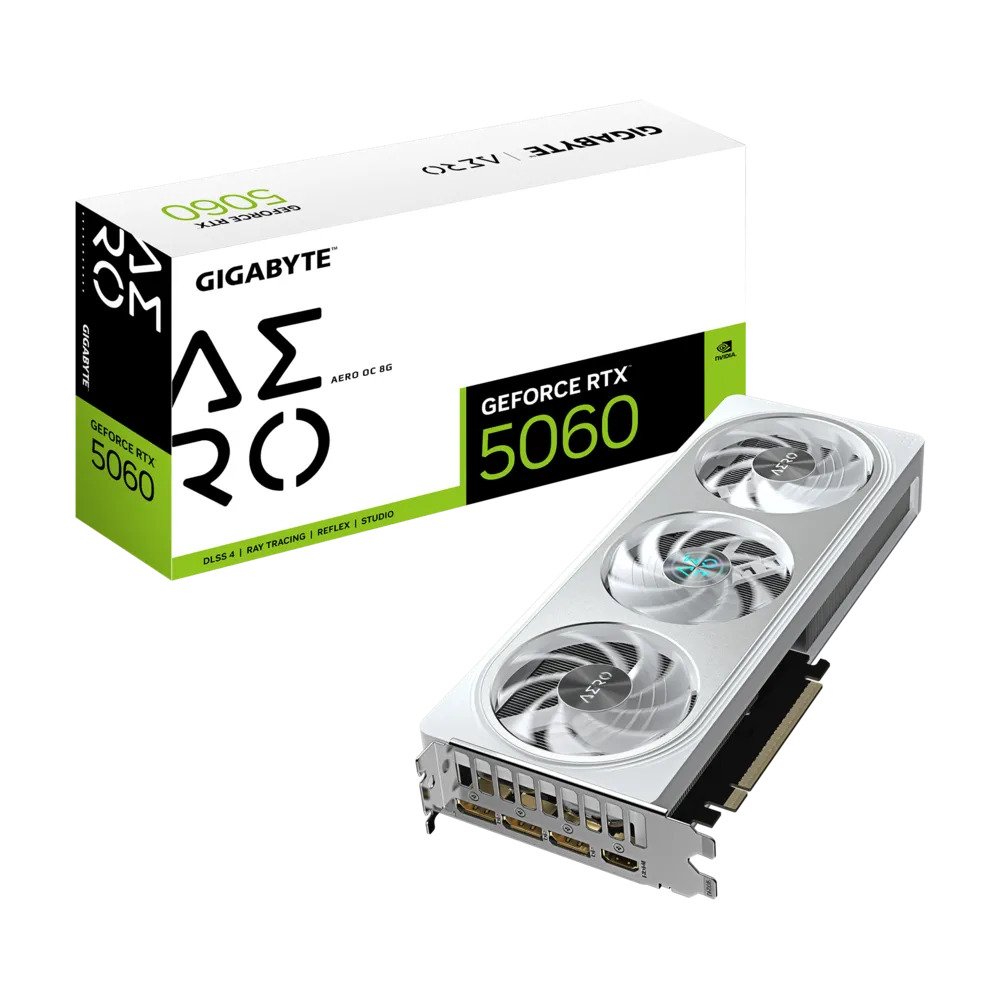

Gigabyte GeForce RTX™ 5060 Aero OC (8GB, GDDR7)

Description

Blackwell Performance, White Build, Creator-Grade Thermal Engineering

The GIGABYTE GeForce RTX 5060 AERO OC is positioned at the intersection of gaming performance and content creation capability, using Gigabyte’s AERO sub-brand — white PCB, white shroud, white heatsink — to target builders who want a clean all-white system without compromising on cooling quality or clock headroom. The WINDFORCE triple-fan system on the AERO OC is a step above typical RTX 5060 coolers: Hawk fans with alternate spinning on the outer two fans reduce turbulence at adjacent airflow boundaries, a copper plate and composite copper heat pipes maximise thermal transfer from the GPU die, server-grade thermal conductive gel (rather than standard pads) ensures consistent long-term contact between GPU and heat spreader, 3D active fan positioning improves blade-to-heatsink airflow alignment, and screen cooling channels air more precisely between fin stacks. The result is a GPU that runs cooler and quieter than its 145W power envelope demands, leaving headroom for the 2595 MHz factory OC — 98 MHz above the 2497 MHz reference specification — to operate stably under sustained load.

The Dual BIOS switch lets builders toggle between Performance and Silent profiles without software, and RGB lighting on the shroud integrates with Gigabyte’s RGB Fusion 2.0 ecosystem. A reinforced card structure resists PCB flex from the card’s own weight in horizontal and vertical mount installations.

⚠️ The RTX 5060 uses a PCIe 5.0 x8 electrical interface. On PCIe 5.0 and PCIe 4.0 platforms this has no meaningful real-world gaming or creative performance impact. On PCIe 3.0 platforms the effective bandwidth is equivalent to PCIe 3.0 x4 — verify compatibility for legacy platform builds.

⚠️ The 128-bit bus and 8 GB GDDR7 frame buffer are well-suited to 1080p high/ultra and 1440p with DLSS. For native 4K or maximum quality 1440p without DLSS in bandwidth-intensive titles, DLSS 4 Quality or Balanced mode is the recommended approach.

💡 DLSS 4 Multi Frame Generation is the headline advantage of the Blackwell generation. In supported titles, the Tensor cores can generate up to three additional AI frames per rendered frame — dramatically increasing effective frame rates beyond what 3840 CUDA cores would suggest at native resolution. For content creators, the RTX 5060’s 5th-generation NVENC encoder supports AV1, H.264, H.265, and the new AV1 Ultra High Quality mode for faster, higher-quality export in supported applications.

Technical Specifications

The RTX 5060 uses NVIDIA’s GB206 Blackwell GPU (4nm) with 3840 CUDA cores, 30 RT cores, 120 Tensor cores, and 614 AI TOPs. The 8 GB GDDR7 frame buffer runs at 28 Gbps on a 128-bit bus with ~448 GB/s bandwidth. Factory boost clock is 2595 MHz (vs 2497 MHz reference). Outputs are 3× DisplayPort 2.1b and 1× HDMI 2.1b with HDCP 2.3, supporting up to four simultaneous displays at 7680×4320. A single 8-pin PCIe power connector is required with a 550W system PSU recommended.

Key Highlights

• NVIDIA GeForce RTX 5060 — Blackwell architecture (GB206), TSMC 4nm
• 3840 CUDA cores, 30 RT cores, 120 Tensor cores
• 5th-gen Tensor cores — 614 AI TOPs
• 8 GB GDDR7, 128-bit bus, 28 Gbps, ~448 GB/s bandwidth
• 2595 MHz boost (factory OC — 98 MHz above reference 2497 MHz)
• ~145W TDP — 1× 8-pin PCIe power connector
• 550W system PSU recommended
• PCIe 5.0 x8 (note: 8 lanes, not x16)
• 3× DisplayPort 2.1b + 1× HDMI 2.1b, HDCP 2.3
• Up to 4 simultaneous displays, max resolution 7680×4320
• All-white PCB and shroud — AERO creator/gaming aesthetic
• WINDFORCE triple Hawk fan cooler — alternate outer fan spinning
• Server-grade thermal conductive gel (not standard thermal pads)
• Composite copper heat pipes + copper plate
• 3D active fan positioning + screen cooling
• Dual BIOS (Performance / Silent) — hardware switch
• RGB Fusion 2.0 compatible RGB lighting
• Reinforced card structure
• DLSS 4 with Multi Frame Generation
• NVIDIA Reflex 2, Ansel, ShadowPlay, Broadcast
• 5th-gen NVENC — AV1 / H.264 / H.265 encode + AV1 Ultra
• High Quality mode
• NVIDIA G-SYNC Compatible
• Real-time ray tracing with RTX
• VR Ready
• DirectX 12 Ultimate, OpenGL 4.6, Vulkan
